TF47
The TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.

Circuit Design
At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top end articulation that sits perfect in a mix.

Key Features:

    Forward mid-range, reminiscent of the U47
    Smooth and detailed top end
    Full and round low end
    Hand assembled in the USA
    K47-style capsule and BV8 transformer, similar to the U47

Applications:

    R&B, rap or aggressive vocals, female soul vocals
    Upright bass
    Toms and kick out
    Trombone
    Cello
    Percussion

Accessories

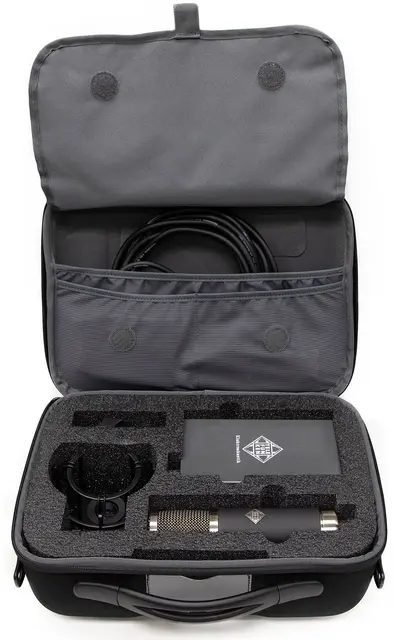

Every TF47 microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Technical Specifications

    Type: Vacuum Tube Condenser
    Polar Pattern: Cardioid, Omnidirectional, Figure-8
    Frequency Range: 20 Hz – 20 kHz, ±3 dB
    Power Source: External Power Supply
    Capsule: TK47 Center Terminated Large Diaphragm
    Tube: NOS Philips/Raytheon 5840W
    Transformer: TELEFUNKEN Elektroakustik BV8
    Sensitivity: 22 mV/Pa, ±1 dB
    THD at 1kHZ at 1Pa (Amplifier): < 0.3%
    Output Impedance: < 300 O
    Maximum SPL (for 1% THD): 125 dB
    S/N Ratio: 84 dBA
    Self Noise (Amplifier): 10 dBA
    Dimensions: 200 mm L x 46 mm Dia
    Weight: 710 g
    Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case
