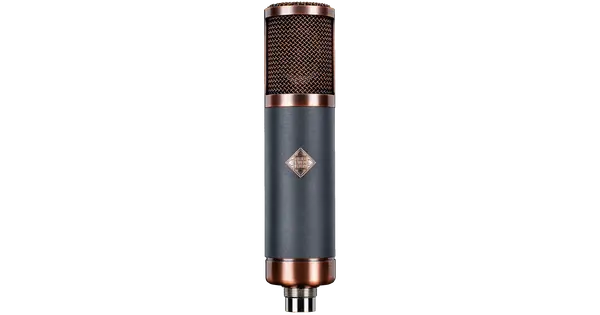

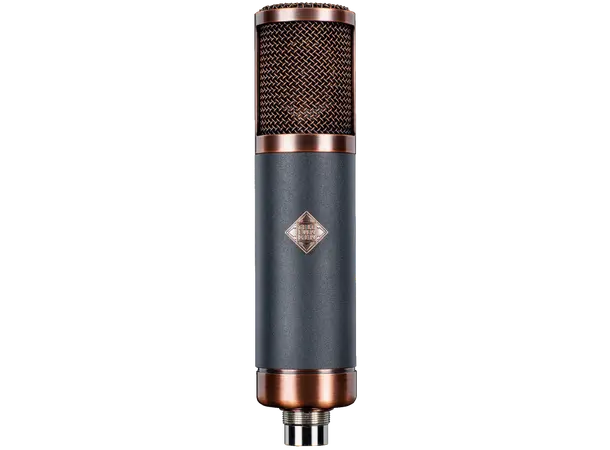

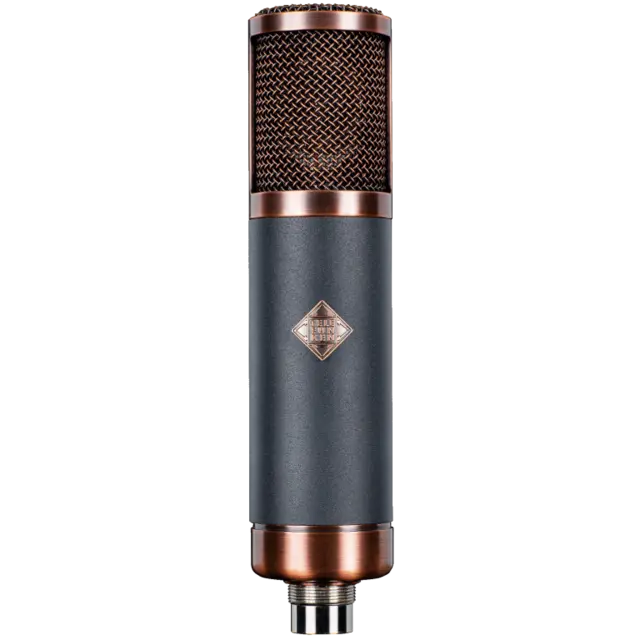

TF39 Copperhead Deluxe
The TF39 Copperhead Deluxe is an expansion of the “Copperhead” sound with the addition of a dual membrane K67-style capsule, allowing for 3-pattern selection between cardioid, omnidirectional, and figure-8. This added feature set gives the TF39 greater flexibility and options in the studio. Sonically and component-wise, the two microphones are otherwise the same.
Circuit Design
The TF39 features a new old stock American-made 5654W vacuum tube, all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF39 a trusty go-to choice.
Key Features:
Designed and assembled by hand in the USA
Pleasant, natural mid range
Extended low frequency response
Stand out antique copper finish
Premium EU-made Lundahl transformer
Applications
Natural vocals, bluegrass, folk, and Americana styles
Electric guitar
Drums: Kick Out, Overheads, & Room
Saxophone
Upright piano
Banjo
Accessories

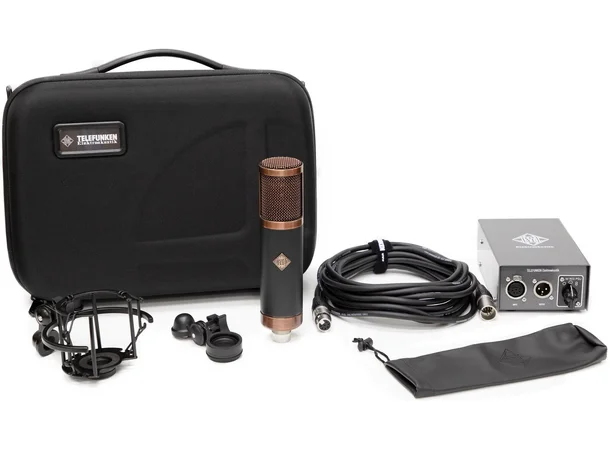

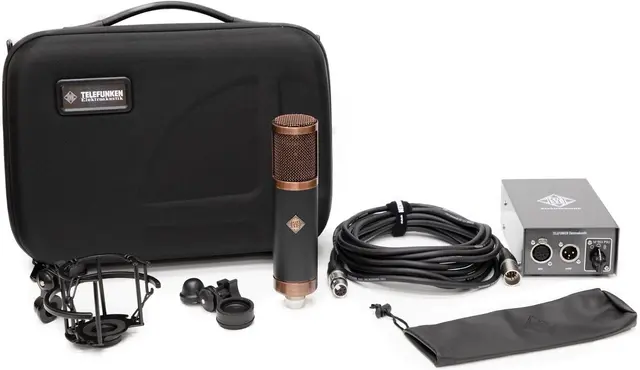

Every TF39 Copperhead Deluxe microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.
Technical Specifications
Type: Vacuum Tube Condenser
Polar Pattern: Cardioid, Omnidirectional, Figure-8
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TK67 Center Terminated Large Diaphragm
Tube: NOS GE 5654W
Transformer: Lundahl LL1935
Sensitivity: 17 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.3%
Output Impedance: < 300 O
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 87 dBA
Self Noise (Amplifier): 7 dBA
Dimensions: 200 mm L x 46 mm Dia
Weight: 650 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case
