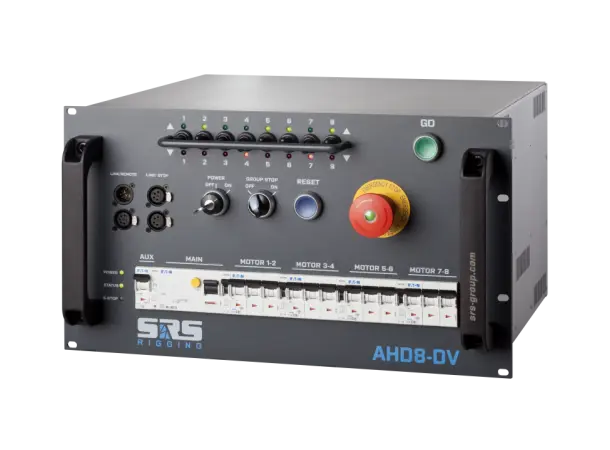

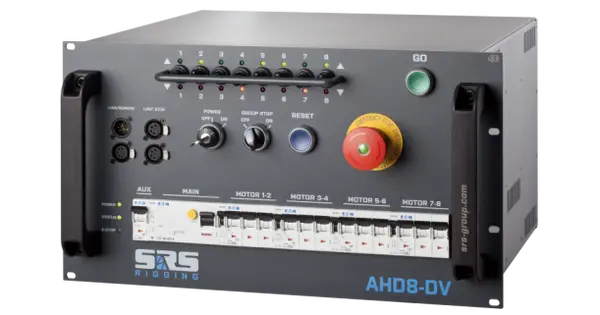

AHD-DV Advanced Digital Hoist Controller
AHD-DV Advanced Digital Hoist Controller
Specification
- Controls up to 24 hoists from remote
- Controls up to 384 hoists via AHD link
- Hoist types: BGV D8, BGV D8+
- Emergency STOP circuit according to: IEC60204, SIL3
- Power output for WMCseries via PowerCon connector
- 1.5m 5G6/5G10mm2 power cable with CEE32A/5p or CEE63A/5p connector
- Outputs protected by RCD30mA and C10A/C16A per output MCB
Features
- APA: Automatic phase sequence check and align
- AVM: Automatic voltage check and hoist protection
- GCT: Group channel control via CMG remote
- RRST: Remote reset function
Compatible with
- Chainmaster/Movecat/Liftket/Tourrig
- CM Lodestar
- GIS
- LITEC/EXE
- Trabes
- Prolyft
- Verlinde/Stagemaker
- Any brand of hoist on the market
Weight & Dimensions
Depends on configuration, see manual
Description
The AHD-DV Advanced Digital Hoist Controller was designed to control up to 24 electrically compatible motors,
either separately or simultaneously – controlled via CMCseries Digital Cable Remote Controller.
The device is equipped with a unique APA (Automatic Phase Align) module, which guarantees that the motors are
moving in the same direction on any align of input phases. If any line wire is disconnected, the hoist controller
stops to ensure safe operation.
Another feature of the AHD-DV is the AVM (Automatic Voltage Metering) module. This module checks the main voltage
for AC 400V ±20% in star configuration and protects the hoists in case of problems with the main voltage.
The unit will NOT go into safe function if:
- One phase is missing
- There is under-voltage on lines
- There is over-voltage on lines
All electrical components carry their own individual CE and comply with the European Directives. The unit is housed
in a robust steel 19" rack with powder coating and complies with CE according to the Certification of Conformity that
comes with it.
The AHD-DV has an additional key switch for the Group-Stop function. When active, the MCB trip of any hoist will
cause an E-STOP on all connected hoists.
If remote control is needed, please add one of the following control stations:
- CMC-DIGI-AHD Controller: Directional remote
- WMC-DIGITAL Controller: Wireless remote
