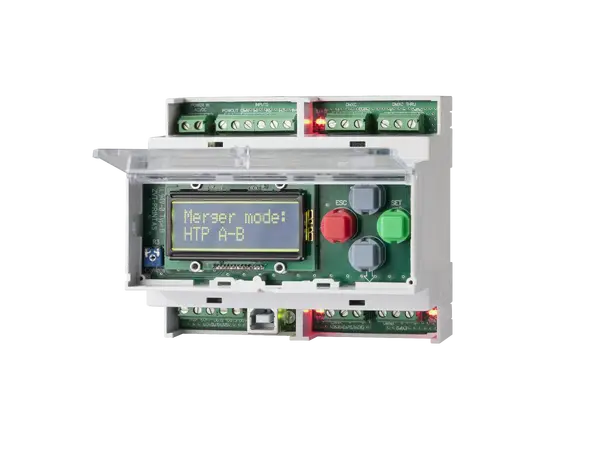

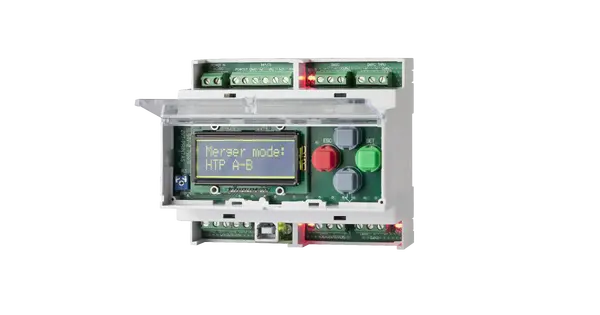

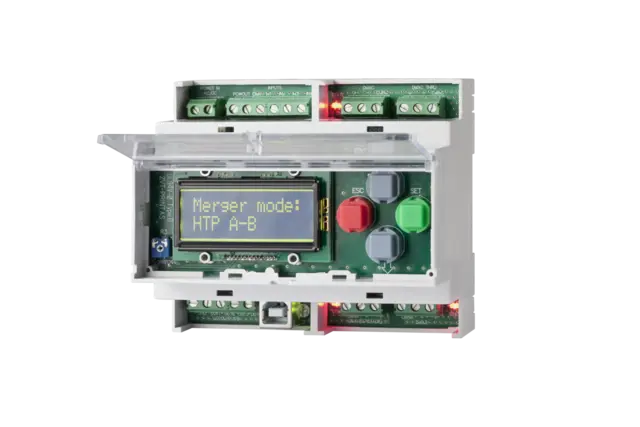

SRS DXD-DIN, DMX merger, booster Screw terminals, isolated RDM ANSI

SRS DXD-DIN, DMX merger, booster

Screw terminals, isolated RDM ANSI

Varenr: 927025
7 192,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
5 På lager
BeskrivelseTeknisk infoDokumenter
Beskrivelse



SPECIFICATION

  • Two DMX inputs merge into single DMX output
  • RDM ANSI E1.20 as a standard
  • Fully isolated DMX = Optocoupler isolation + DC/DC power
  • All DMX/RDM outputs are boosted signals
    (connects up to 32 devices per output)
  • DMX channel offset for each input and also output
  • DMX scenes can be loaded when input signal is lost
  • DMX scenes can be mixed using HTP / LTP rules
  • Shift of the DMX address for all inputs and outputs
  • Minimum scene setting (for LED equipment)
  • Firmware update using the SRS upgrade cable

Teknisk info

Produktinformasjon

Type Merger


Dokumenter
17069
