SPECIFICATION
- Single Universe Receiver
- Latency: <5ms
- Complete DMX512 support
- One-button-to-go technology for ease of use
- LED indication of the DMX and W-DMX status
- Adaptive Frequency Hopping Radio
- 2.4GHz radio – license free worldwide
- Optional 5.8GHz dual band
- Interchangeable antennas; expands the range easily
- Compact & solid metal construction
- Power supply: AC230V/50Hz
- Comes with 2dBi indoor antenna
DESCRIPTION

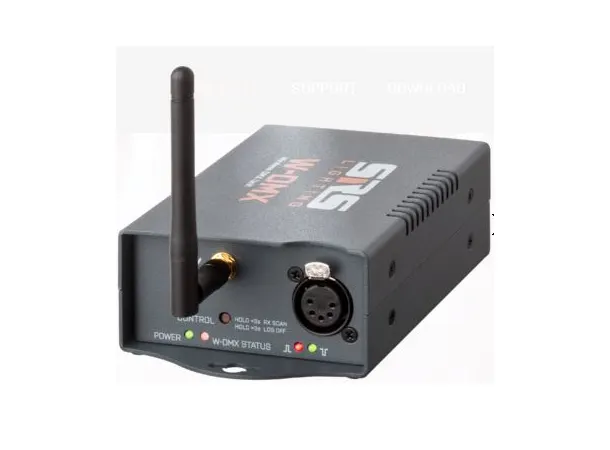

The W-DMX Receiving unit RX is a part of the new generation wireless DMX systems that employs the W-DMX technology. The W-DMX receiver is a compact and plug-and-play device that is easy to set up and use.
The W-DMX system represents a true innovation in comparison with other wireless DMX systems because it employs the adaptive FHSS standard instead of the commonly used W-LAN standard. The W-LAN standard uses fixed channels without hopping causing a much bigger risk for interference from other competing local wireless networks. However, the FHSS standard uses 83 discrete frequency channels; checking for interference free transmission every millisecond.
