Active subwoofer, 1800W Class-D amplifier, 900W RMS, 133db SPL

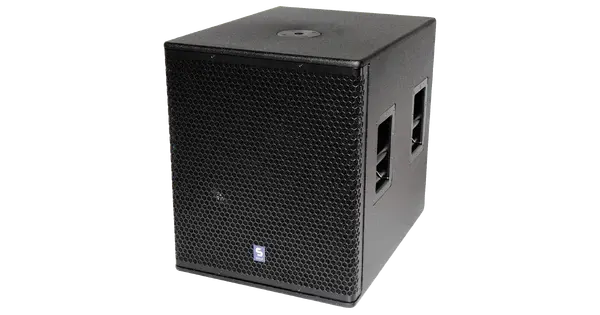

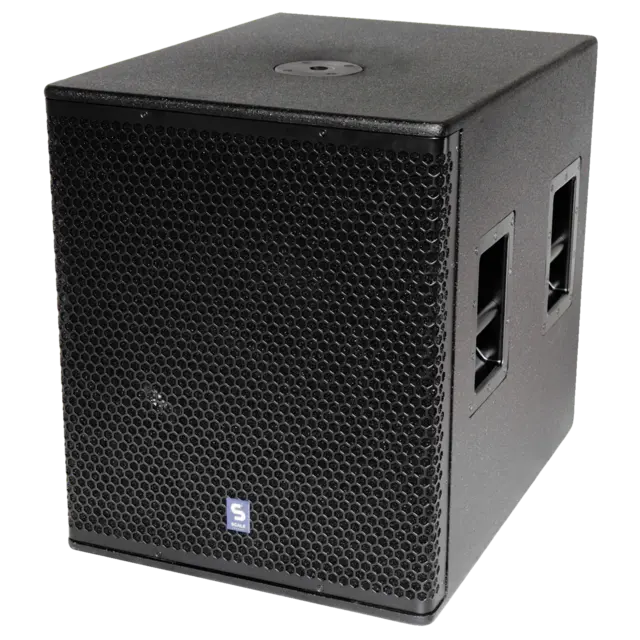

The CD18SUB is an 18″ powered subwoofer that provides a powerful low frequency response. The geometry of the reflex duct is low compression thanks to the aerodynamic development. This design guarantees precise and well controlled bass response even at higher volumes.

STATE-OF-THE-ART 18” with large voice coil.
The CD18SUB is equipped with our latest in house 18” neodymium woofer with very low distortion and extremely long excursion. The neodymium motor provides an extremely high magnetic flux for greater efficiency. Using a 4″ voice coil ensures an ultra linear excursion and high-power capability. The ventilated magnet reduces distortion and power compression. This design improves the overall sound quality and performance characteristics.

CLASS D AMPLIFIER

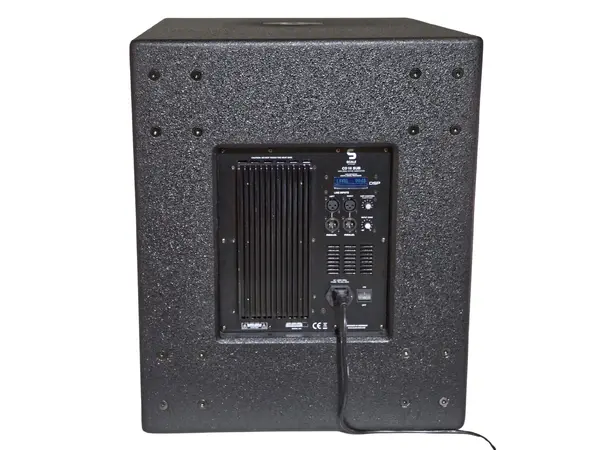

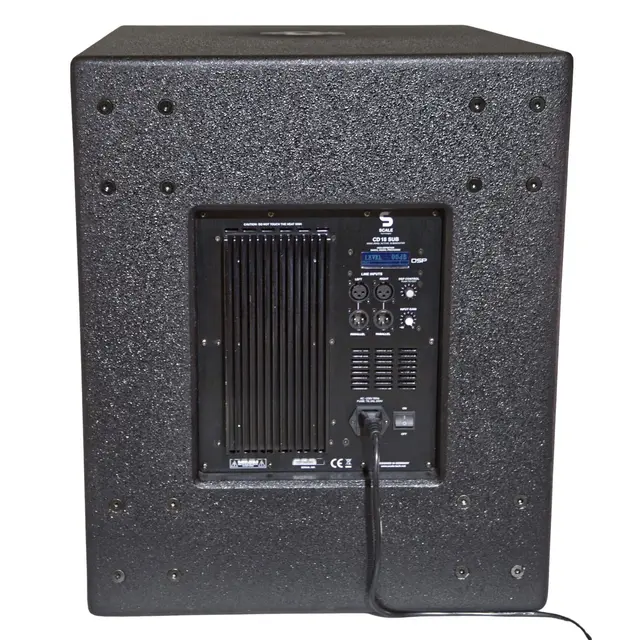

The 900W RMS / 1800W digital amplifier is managed by an DSP and has parallel outputs for linking other speakers. The amplifier uses an ultra-low noise fan paired with an effective and robust aluminum heat sink. This also guarantees its mechanical stability during transport.

CABINET
The CD18SUB cabinet are made of birch plywood covered with a black polyurea finish. The subwoofers are stackable and light, for easy installation and easy disassembly, thanks to the dual ergonomic handles on each side.

APPLICATIONS

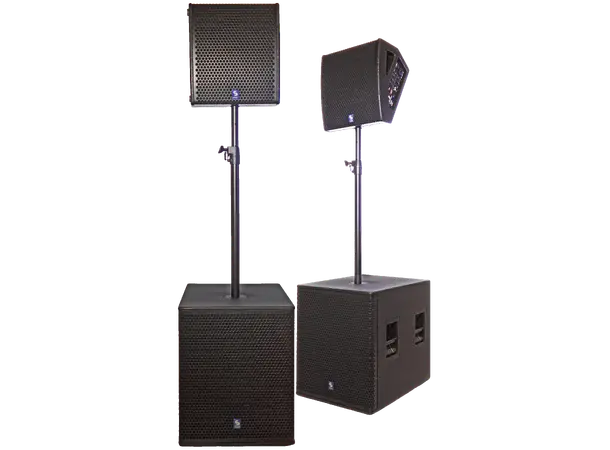

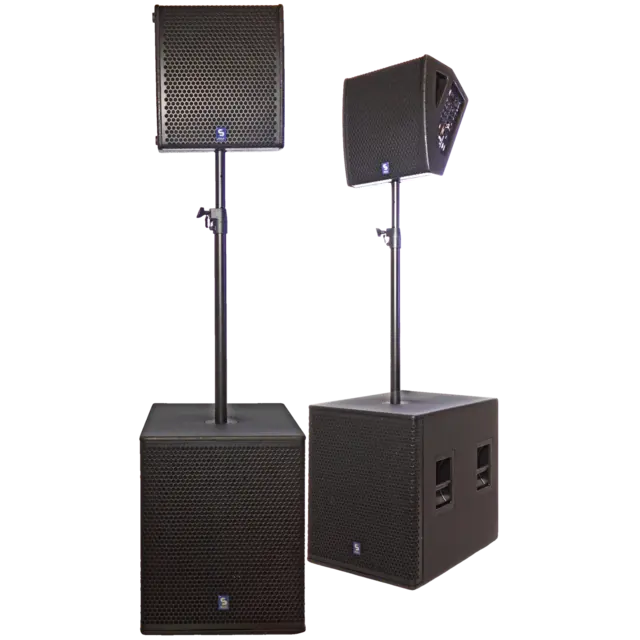

The CD18SUB is perfectly suitable as a sub-extension of the low range for the amplified 10 “/ 12” / 15 FR/CD series from Scale Technologies, and can be used in houses of worship, theaters, clubs and mobile applications.
