MPT-005

Ramme for ballast til MPT Tower

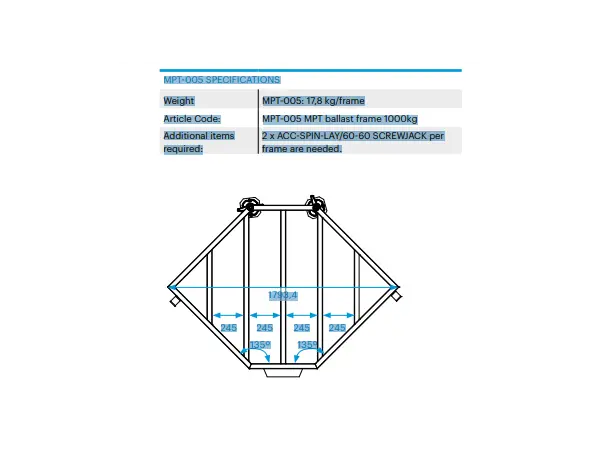

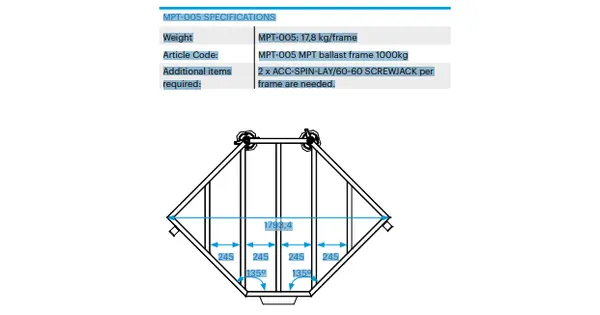

Weight MPT-005: 17,8 kg/frame

Article Code: MPT-005 MPT ballast frame 1000kg

Additional items required: 2 x ACC-SPIN-LAY/60-60 SCREWJACK per frame are needed.

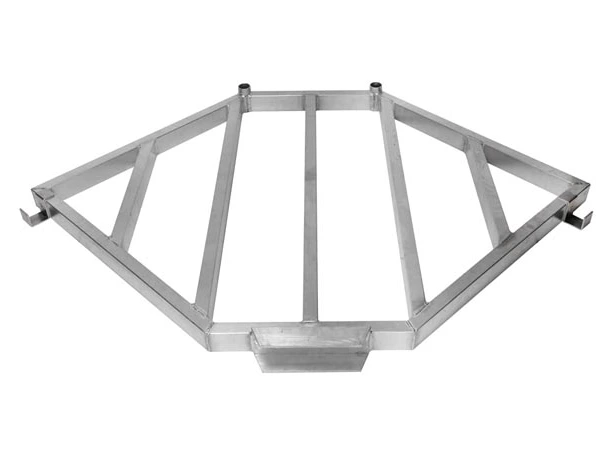

MPT BALLAST FRAME The ballast frame MPT-005 is designed to offer a safe, engineered and easy solution for your ballast requirements.

These aluminium frames are simply mounted between the long outriggers of your ST- or MPT base section. Layher screw spindles are placed at the outside for optimum levelling each ballast frame.

The system doesn’t require any tooling. Standard, pallet-sized water tanks fit on the resulting platforms to create your ballast weight.

HOW TO USE THE BALLAST FRAME

The ballast frames should be used only in conjunction with long outriggers and stabiliser braces. All ballast frames and ballast should be positioned symmetrically.

For any other needed set-ups, please contact our engineering department. The amount of ballast required for a structure is dependent on the outcome of structural analysis.

Due to deflection of components not all applied ballast can be activated. The outsides will stay grounded, while the area around the tower will have the tendency to tip or be lifted
