Prolyte H40R-MPT010-ADAP

Adapter for sleeve block MPT Tower

Varenr: H40R-MPT010-ADAP
1 741,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (29 dager)
BeskrivelseTeknisk infoDokumenter
Beskrivelse

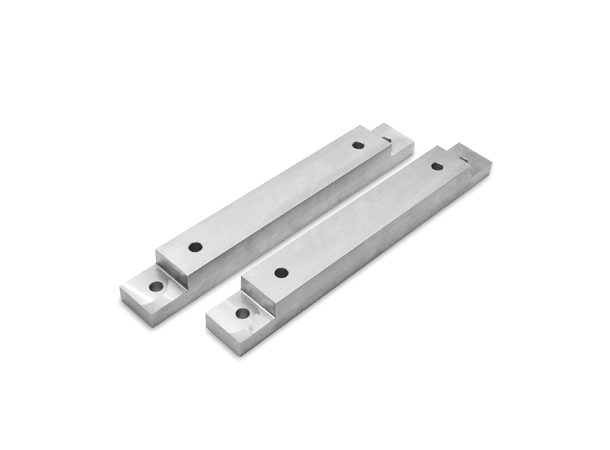

H40R-MPT010-ADAP

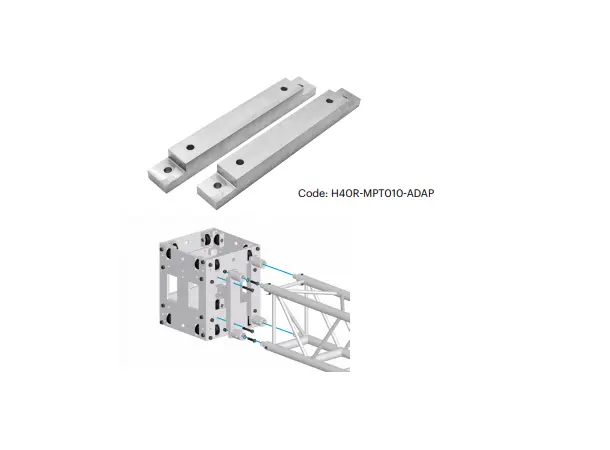

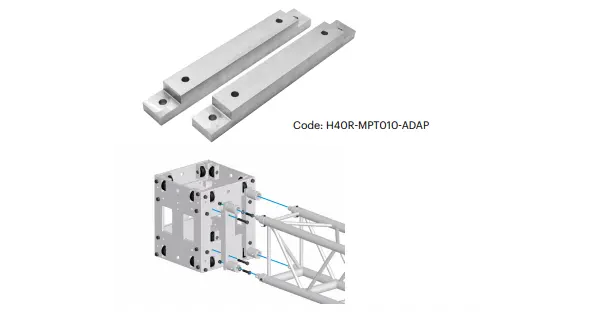

Adapter for H40R trosse, kobling til sleeve block på MPT Tower

H40R TO MPT SLEEVE MODULE ADAPTER The H40R truss is a rectangular standard H40 truss with a very clever program of specifications.

The H40R measures 387 mm high by 287 mm wide. For the H40R Prolyte has developed a special adapter to be able to mount this flexible truss type on the MPT tower system,

thereby offering more application possibilities. The H40R is available in all standard lengths as well as a box-corner. Apart from the standard lengths and BoxCorner for the H40R range,

Prolyte offers a BoxCorner attachment and the H40R MPT adapter; completing the H40R range to a convenient and flexible range. Depending on the coupling method,

the following bolts are required to attach the adapter: • To attach the H40R-MPT010-ADAP to the sleeve block: BM-M12X075 + BM-M12-N + BM-M12-SW •

To attach the CCS6-651: BM-M12X050-IB + BM-M12-SN + BM M12-SW • To attach the CCS6-602: BM-M12X040 + BM-M12-SW

Teknisk info

Produktinformasjon

Type MPT Tower 1T
