Prolyte SQUARE 20 LENGTH 100 CM Compact construction, optimum strength

Prolyte SQUARE 20 LENGTH 100 CM

Compact construction, optimum strength

Varenr: E20V-L100
2 747,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (29 dager)
BeskrivelseTeknisk infoDokumenter
Beskrivelse

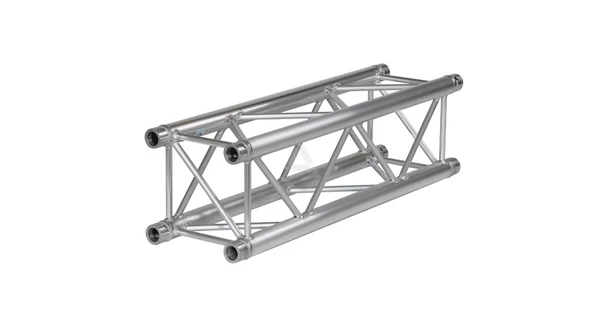

E20V Square Truss Length

Catalog number: E20V-L100

The E20 is a small and aesthetically pleasing truss. Compact construction, optimum strength and high-tech appearance make this truss an appropriate decorative element with numerous applications. Equipped with the CCS4 conical coupling system, the E20 truss is fast and easy to assemble. E20 truss is available in triangular and square profiles and a range of corners and accessories.

Advantages

  • Compact product
  • Great strength to weight ratio
  • No deflection in it's connection point
  • Hight tech appearance
  • Fast and easy to assemble

Technical specifications

Technical Specifications - E20 Series
AlloyEN AW 6060 T5
Main Tubes32 x 1,5 mm
Braces10 x 1,0 mm
Coupling SystemCCS4

Teknisk info

Produktinformasjon

Farge Aluminium
Lengde 100cm
Type Lengder
