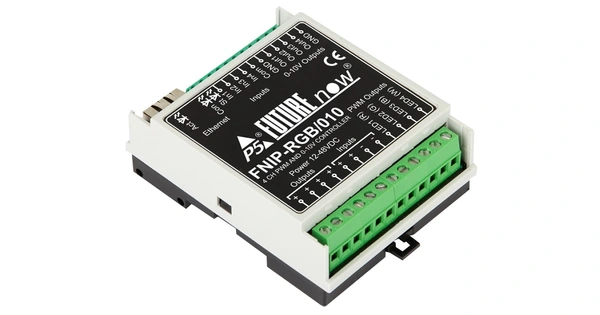

FNIP-RGB/010

4 Channel Low Voltage RGB(W) Dimmer and Analog Control Module

Main features

·         4 channel single color LED lighting or one channel RGB(W) control

·         4 channels of analog 0 – 10V control

·         Remote control over LAN

·         Local control inputs

-       DIN-rail or surface (additional ears needed) mount

-       4 x 0-10V control outputs for valves, fans, lighting, etc.

-       4 x 8A low-voltage, PWM control outputs (max 400W/channel at 48V)

-       Simple connection for the LEDs (power is distributed within the module)

-       4 optically isolated multi-purpose digital inputs for contact sensors and manual operation

-       Single color, RGB and RGBW LED strip support

-       Built-in web server for configuration, control and monitoring

-       Color picker

-       TCP communication protocol (API) with simple ASCII commands

-       Free mobile apps

-       Multiple users with different user rights

-       Automatic event reporting of input and output status changes

-       Firmware upgrade via LAN

-       Scenes stored in the modules can be activated from any input on any module on the network.
