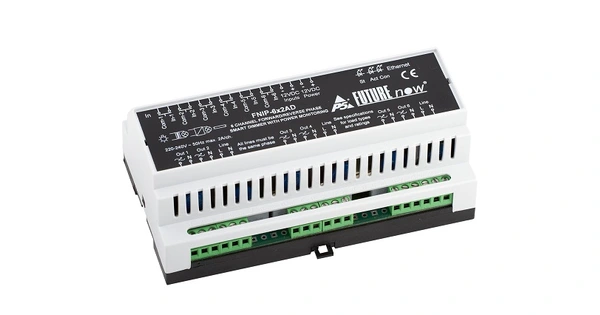

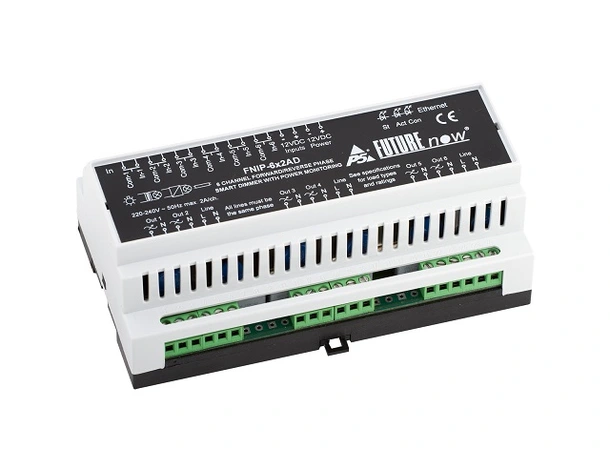

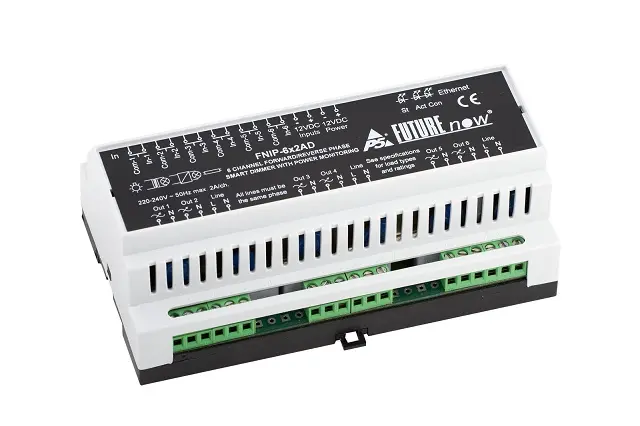

FNIP-6x2AD

6 Channel Ethernet Smart Dimmer

The FNIP-6x2AD is a 6 Channel Ethernet Smart Dimmer that can work in both leading edge and trailing edge modes. All type of load can be dimmed or switched with it, be it resistive, capacitive or inductive. The outputs can be controlled from any network-capable device, for example smartphones and web-tablets. It even measures the power consumption of the outputs.

Main Features

Robust Operation

• All-in-one dimmer
• 6 outputs for switching and dimming 6 lighting circuits
• 6 galvanically isolated digital inputs for contact sensors or manual operation
• Overheat protection (both from software and hardware)

Ultimate Flexibility

• Switching any load types
• Both trailing and leading edge dimming (dimming of resistive, capacitive and inductive loads)
• Automatic load type detection
• Switching (On/Off) any loads
• Possibility to combine two outputs for more wattage
• Standard DIN Rail mount
• Voltage, frequency, power consumption and temperature metering
• 100 dim levels (800 level hardware resolution)
• Preset dim level – outputs will go to that level when turned on
• Dim level memory (if preset dim level is set to zero) - modules recall their last dim level when next turned on
• Adjustable minimum and maximum dim levels
• Adjustable ramp rates

Enhanced Connectivity

• New TCP/IP interface offers remote control and advanced management
• Built-in web server for configuration, control and monitoring
• Operation via the local computer network or over the Internet
• Remote control and monitoring from network enabled smartphones and tablets
• Multiple users with different user rights
• TCP communication with simple ASCII commands
• Available communication protocol
• Automatic event reporting of input and output status changes
• Firmware upgrade via LAN

Industry-Wide Interoperability

• Easy integration with home controllers
• Interoperability with any momentary contact switches available on the market
