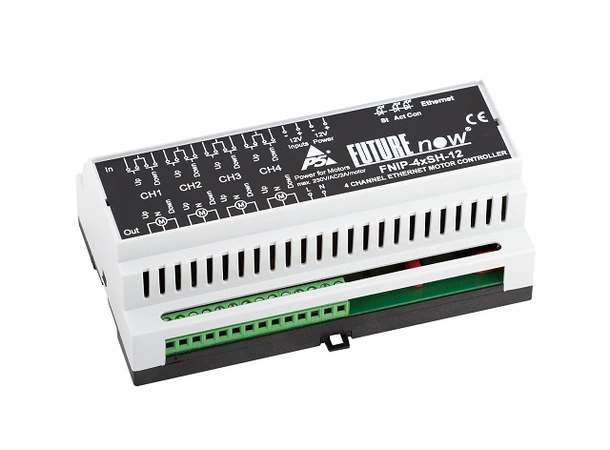

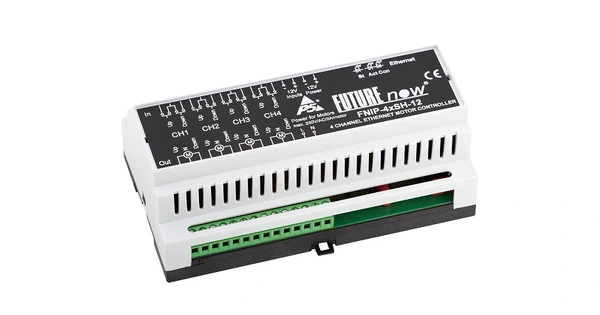

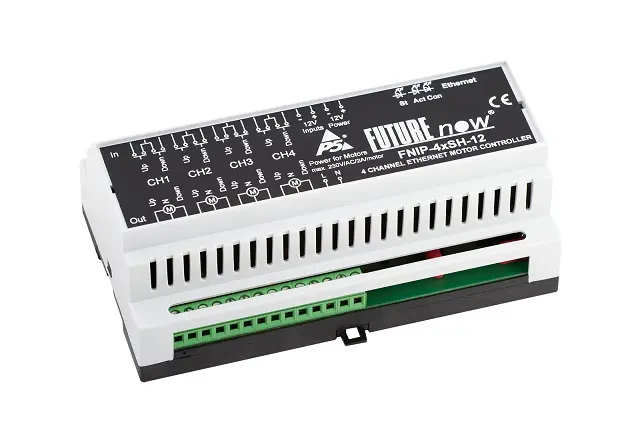

FNIP-4xSH

4 Channel Ethernet Window Covering Controller

The FNIP-4xSH four channel Ethernet Window Covering Controller is used for controlling motorized shutters, blinds, awnings and projector screens or any other device equipped with four-wire bidirectional AC motor and built-in limit switches. The motors can be controlled from any network-capable device, for example smartphones and web-tablets or via the local inputs of the module.

Main Features

Robust Operation

• Ideal for controlling motorized window coverings, projection screens, awnings, etc.
• 4 outputs for controlling 4 four-wire (up/down/neutral/Earth) bidirectional AC motors
• 4x2 (up/down) galvanically isolated digital inputs for contact sensors or manual operation
• Delay when changing direction to protect the motor
• Mechanical and electronic latch preventing the motor from being driven in both directions at the same time

Ultimate Flexibility

• Up, Down, Stop and "Go to a certain position" commands
• Adjustable up and down motor running times
• Separate power inputs for powering motors with different voltage requirements
• “Motor in motion” indication
• Percentage indication of position
• Standard DIN rail mount
• Available in both 12V DC and 24V DC powered versions
• Standalone operation via the local inputs, even without a controller or network connection
• Digital inputs can also be used to monitor door/window contacts, motion, water leakage and any other sensor type

Enhanced Connectivity

• New TCP/IP interface offers remote control and advanced management
• Built-in web server for configuration, control and monitoring
• Operation via the local computer network or over the Internet
• Remote control and monitoring from network-enabled smartphones and tablets
• Multiple users with different user rights
• TCP communication with simple ASCII commands
• Available communication protocol
• Automatic event reporting of input and output status changes
• Firmware upgrade via LAN

Industry-Wide Interoperability

• Easy integration with home controllers
• Interoperability with any momentary contact switches available on the market
