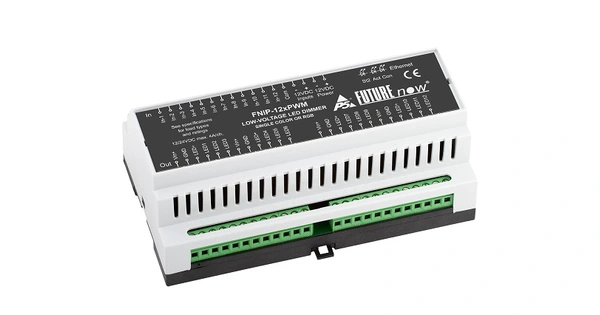

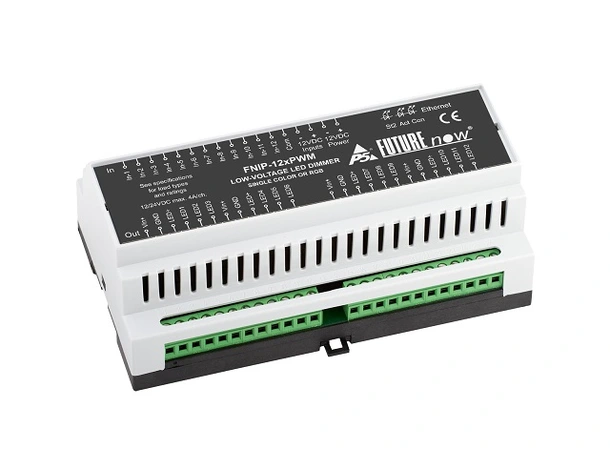

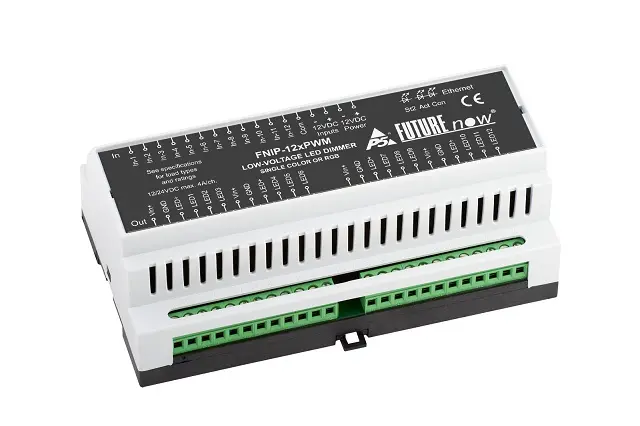

The FNIP-12xPWM 12 Channel Ethernet LED Dimmer is ideal for dimming low-voltage (3-30V) single color or RGB or RGBW LED strips. It can be controlled from any network-capable device, for example smartphones and web-tablets.

 Main Features

Robust Operation

• Ideal for dimming single color RGB or LED Strips
• Supports up to 12 single color or 4 RGB or 3 RGBW LED strips or any combinations
• 12 x 4A low-voltage PWM outputs
• 12 optically isolated digital inputs for manual operation or contact sensors
• 3-30V LEDs are supported. The LEDs can be powered from external PSUs.
• Compatibility with PWM boosters
• Can also be used for dimming low-voltage halogen bulbs

Ultimate Flexibility

• RGB commands
• Color picker to set RGB color graphically
• Color changing sequence by holding down the inputs
• Standard DIN rail mount
• Powered by 12V DC - 24V DC
• Standalone operation via the local input, even without a controller or network connection
• Digital inputs can also be used to monitor door/window contacts, motion, water leakage and any other sensor type

Enhanced Connectivity

• New TCP/IP interface offers remote control and advanced management
• Built-in web server for configuration, control and monitoring
• Operation via the local computer network or over the Internet
• Remote control and monitoring from network enabled smartphones and tablets
• Multiple users with different user rights
• TCP communication with simple ASCII commands
• Available Communication Protocol
• Automatic event reporting of inputs and output status changes
• Firmware upgrade via LAN

Industry-Wide Interoperability

• Easy integration with home controllers
• Interoperability with any momentary contact switches available on the market
