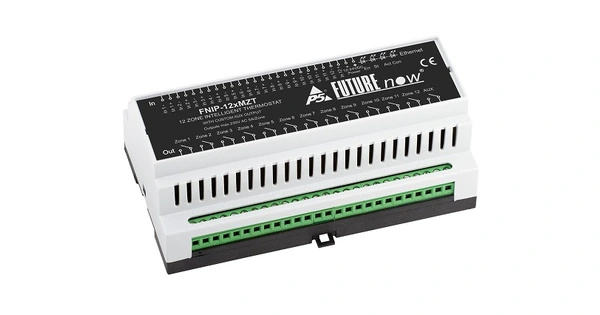

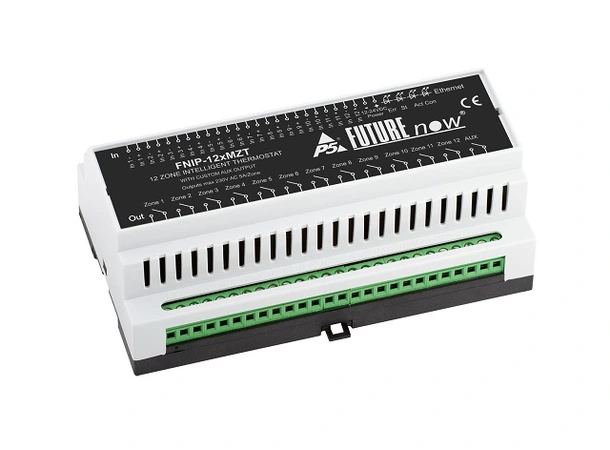

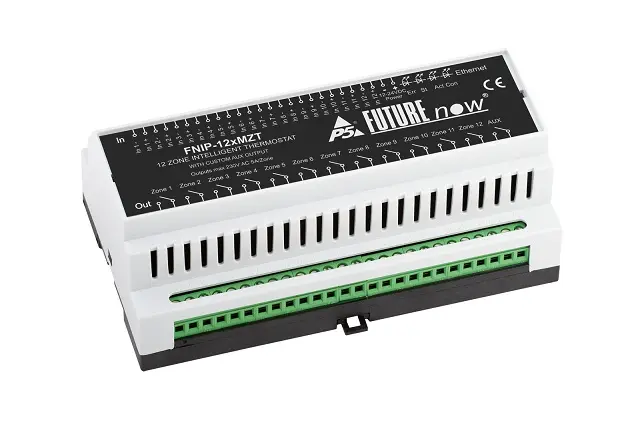

The FNIP-12xMZT is a 12 zone programmable thermostat with analog inputs and NO relay outputs. The setpoints and schedules can be adjusted via the built-in website or TCP/IP commands. The AUX relay output can be used for boiler control.

• The unit sits discretely out of sight - no more bulky boxes on the walls
• 12 inputs for most analog temp sensor types: PT1000, PTC 1K-47K, NTC 1K-47K
• 12 NO relay outputs to control valves
• 12-24V power requirement
• Heating and cooling modes
• Custom programmable extra relay - ideal for boiler control
• Standalone operation - setpoint and times stored, decision made within the module
• Setpoint adjustable via TCP/IP
• Scheduled heating and cooling programs
• Outputs and temp inputs can also be used separately
