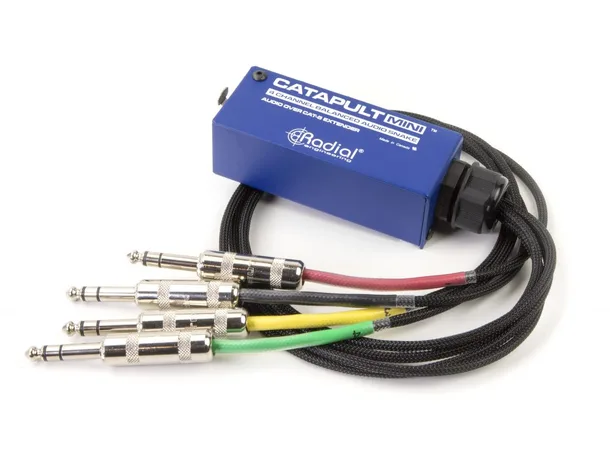

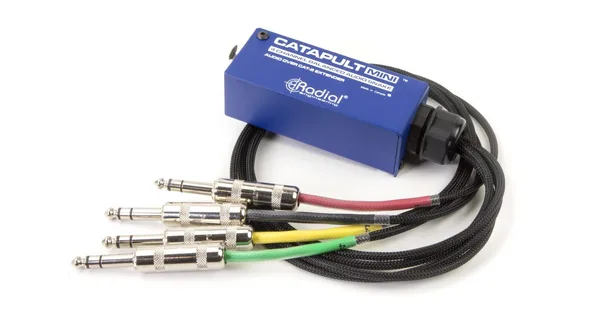

Send four channels of analog audio over a Cat 5/6 cable
    Available with XLRM, XLRF or ¼” TRS connectors
    Works with a building’s existing cable infrastructure
    Compact and lightweight, yet durable and rugged
    Economical Cat 5/6 cable replaces bulky multichannel audio snakes

RJ45 Pin (T568)  XLR/TRS Pin
1  CH 4 Pin 2
2  CH 4 Pin 3
3  CH 3 Pin 2
4  CH 2 Pin 2
5  CH 2 Pin 3
6  CH 3 Pin 3
7  CH 1 Pin 2
8  CH 1 Pin 3

Specifications

Audio circuit type:  Passive splitter
Frequency response:  7Hz ~ 20KHz
Dynamic range:  140dB
Total harmonic distortion:  0.0005% @ 1kHz
Common Mode Rejection Ratio:  >103dB
Maximum Input:  +35dBu

Features
Ground lift
Input Connectors:  XLR, TRS, RJ45 (model dependant)
Output Connectors:  XLR, TRS, RJ45 (model dependant)

General
Construction:  16-gauge steel chassis & outer shell
Size (L x W x D):  4.125" x 1.56" x 1.31" (105 x 40 x 33mm)
Weight:  0.85lb (0.4kg)
Shipping size (L x W x D):  6.25" x 4.25" x 3" (159 x 108 x 76mm)
Shipping weight:  1.1lb (0.5kg)
Power:  Passive, no power required
Conditions:  For use in dry locations only between 5°C and 40°C
Warranty:  Radial 3-year, transferable
