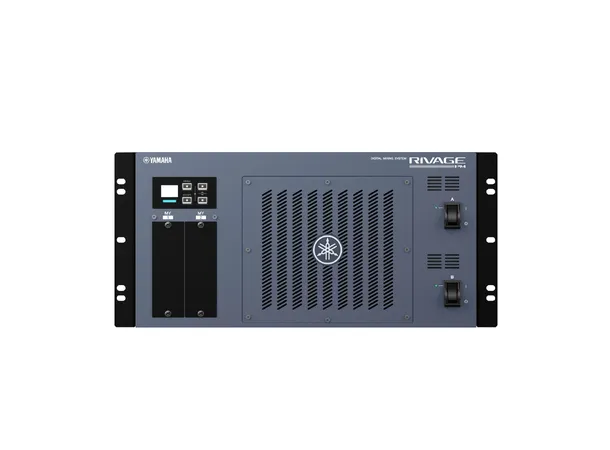

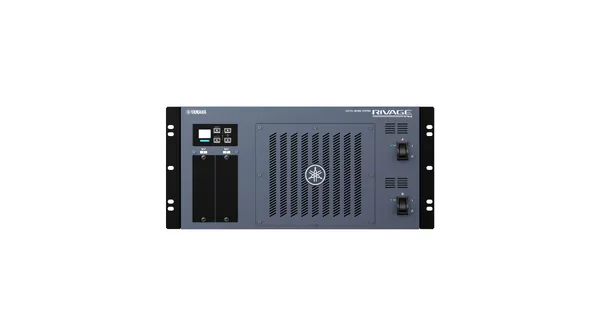

DSP-RX-EX DSP Engine
The DSP-RX-EX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system.
- Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
- Superior capability of processing digital audio signals of up to 288 input, 72 MIX, 36 MATRIX, and two STEREO channels.
- Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
- Two Mini-YGDAI slots to support various audio formats.
- Dual redundant power supply built-in
- Power consumption: 190W
- Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
- Net Weight: 20 kg (44.1 lbs)
