Description

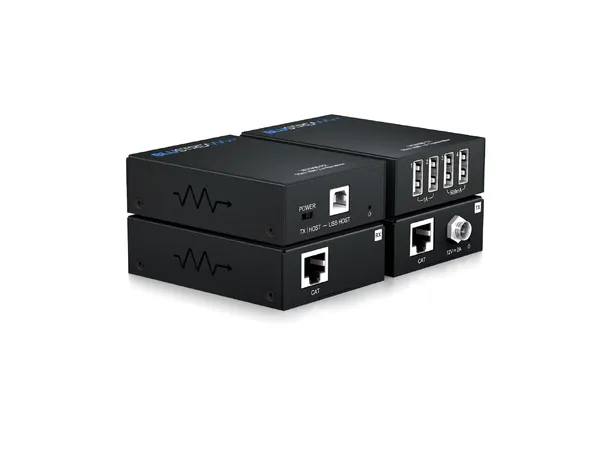

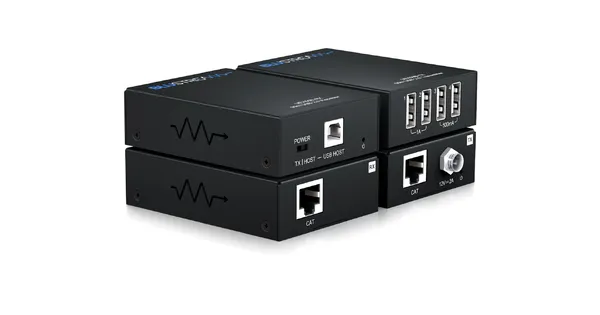

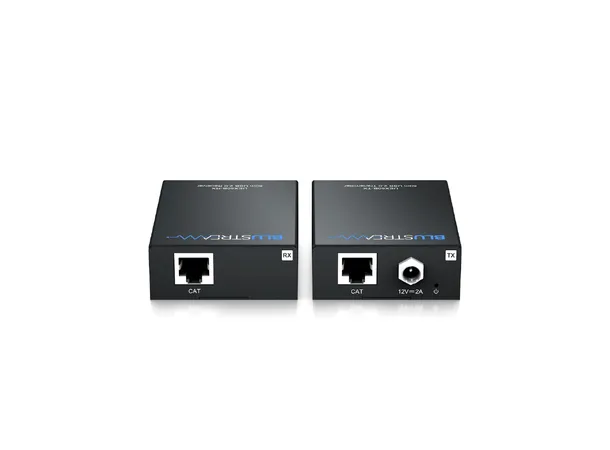

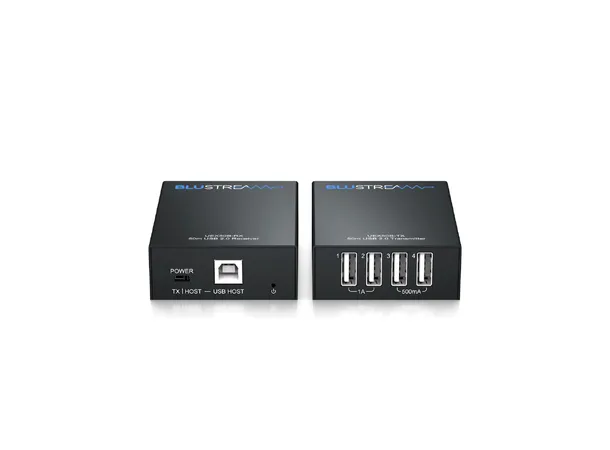

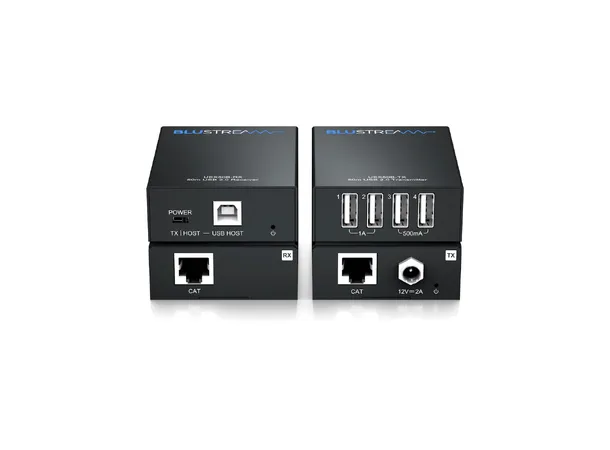

Our UEX50B-KIT delivers USB 2.0 extension up to 50m over a single CAT cable, allowing up to 4 x USB peripheral devices to be connected to a single USB host with charging / power.

Supports a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.

Box Contents

1 x UEX50B-TX
1 x UEX50B-RX
1 x USB Type-A to USB Type-B cable
1 x 12V/2A DC power supply
2 x Mounting kit
1 x Quick Reference Guide

Key Features

• Extends USB up to a distance of 50m over a single CAT cable

• Supports USB 2.0 signal extension

• Backwards compatible with USB 1.1 devices

• Combined transmitted data bandwidth up to 480Mbps

• 1 x USB Type-B on the Transmitter for connection to the Host device

• 4 x USB Type-A hub on the Receiver for connection to peripheral devices

• USB Type-A ports 1-2 support 5V 1A, with ports 3-4 supporting 5V 500mA

• Simple plug and play, no driver installation or setup required

*Signal distribution length subject to length of device and host USB cables and CAT cable type

Specifications

UEX50B-RX

• CAT Connectors: 1 x RJ45 connector

• USB Port: 1 x USB Type-B

UEX50B-TX

• CAT Connectors: 1 x RJ45 connector

• USB Port: 4 x USB Type-A

• Casing Dimensions (W x D x H ): 84mm x 60mm x 23.5mm (TX/RX)

• Shipping Weight (kit): 0.5kg

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

• Power Supply: 12V/2A DC
