Description
Our SP14AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Box Contents
1 x SP14AB-V2
1 x 5V/2A DC Power Supply
1 x Quick Reference Guide
Key Features
Features 1 x HDMI input that is replicated to 4x HDMI outputs
Supports HDMI 2.0 18 Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
Advanced EDID management
HDCP 2.2 Support
Specifications

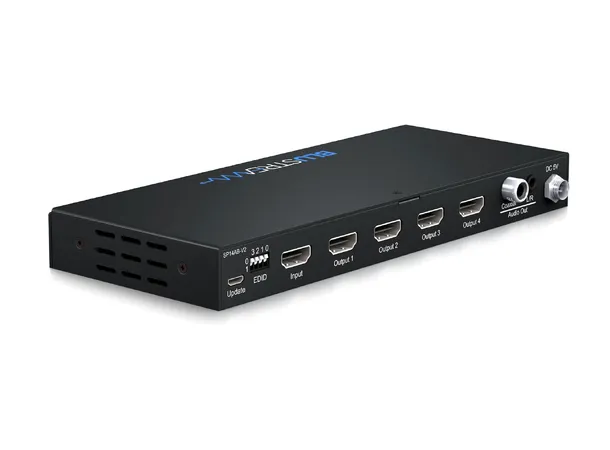

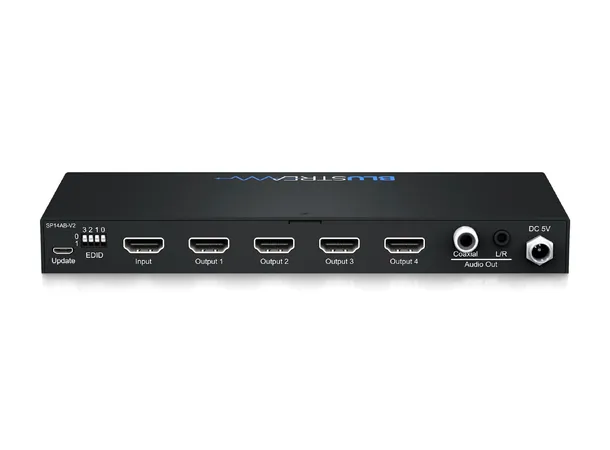

Video Input Connectors: 1 x HDMI Type A
Video Output Connectors: 4 x HDMI Type A
EDID: 4-pin DIP switch
Audio Output Connectors: 1 x RCA (S/PDIF), 1 x Analogue audio L/R (3.5mm stereo jack)
Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/2A DC
