Description

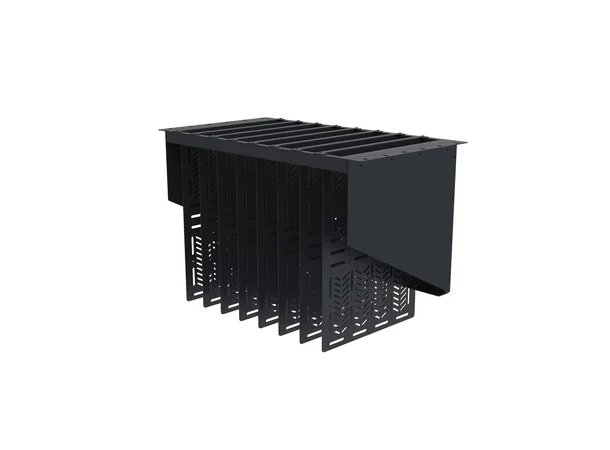

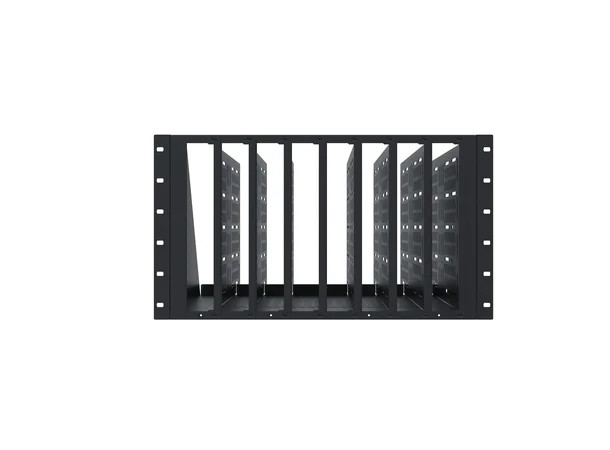

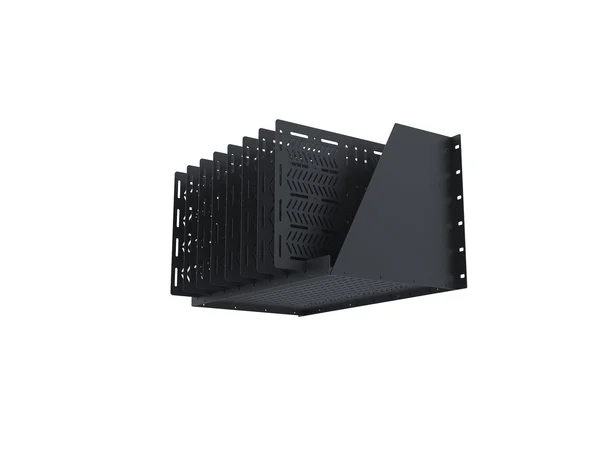

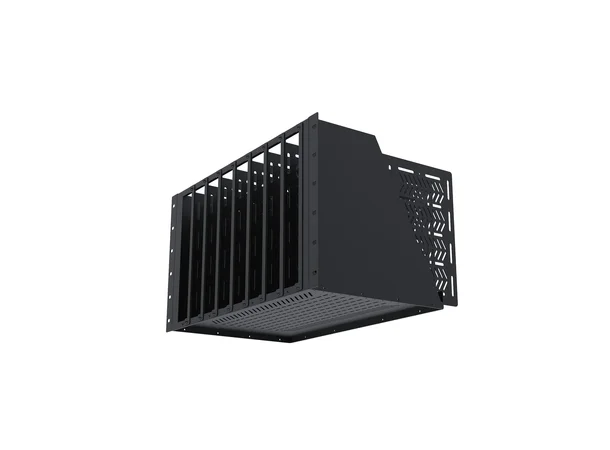

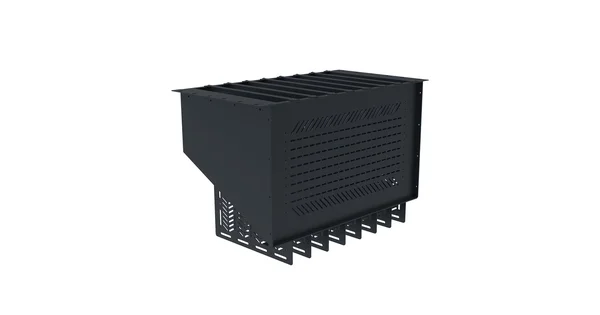

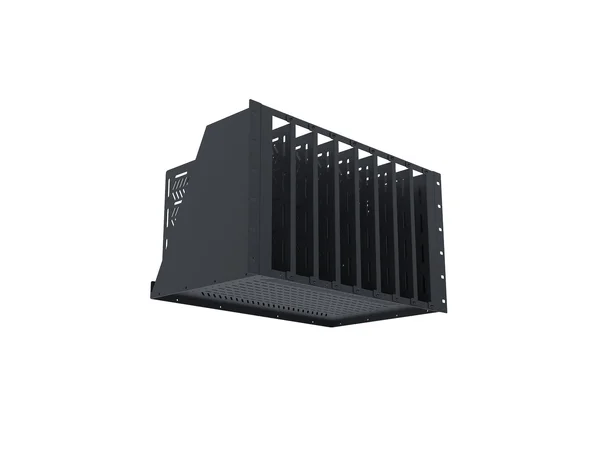

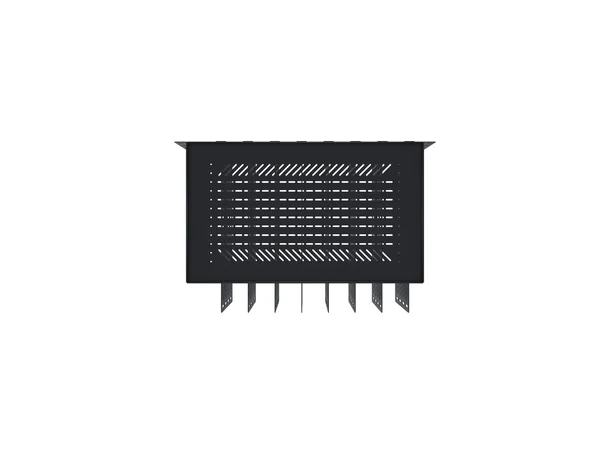

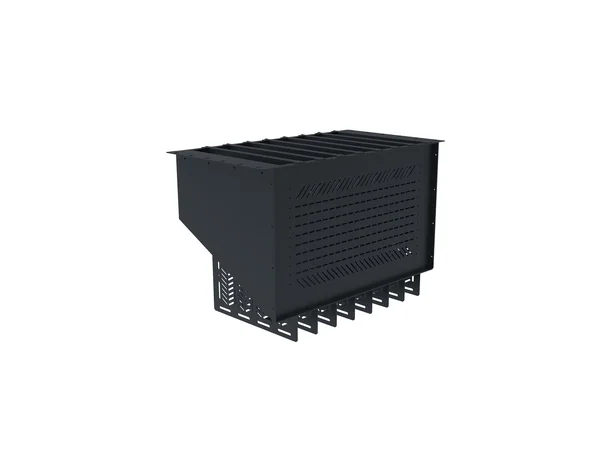

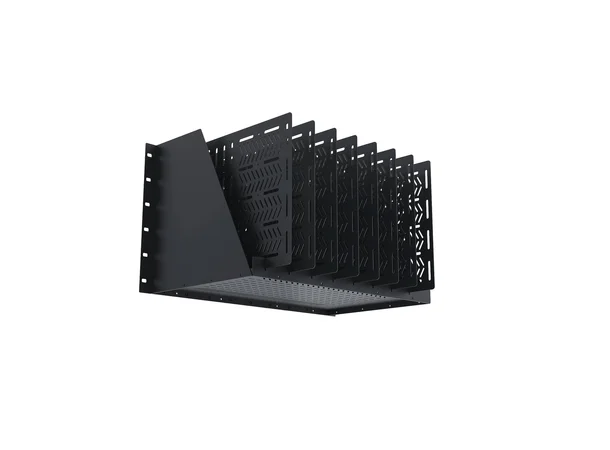

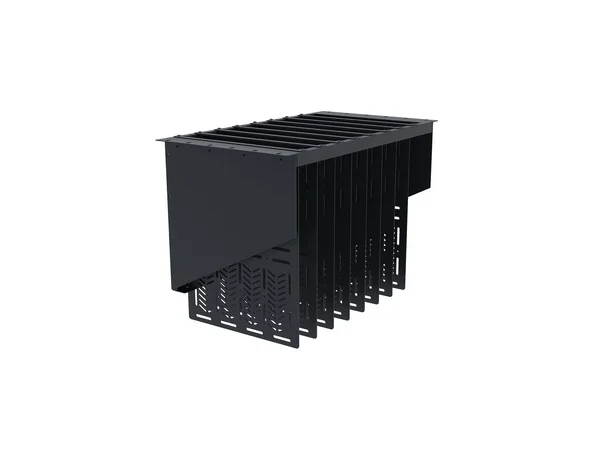

Our RSU-6RU rack shelf solution has been designed to compliment our range of Blustream HDBaseT™, Video over IP, USB, and Audio solutions.
The unit comes with 8x removable vertical ventilated shelves which are suitable for securing smaller, non-rack mountable Blustream products, as well as any smaller pieces of AV equipment into a 19” AV / data cabinet.
Box Contents
1 x RSU-6RU Enclosure (un-assembled)
8 x Shelf Units
Key Features
6U 19" rack shelf enclosure
8 x removable vertical blade shelves with ventilation / mounting points*, ideal for rack installation of any Blustream TX or RX product, or general AV equipment
Vertical shelves can be removed from the main enclosure, and include multiple fixing points to assist ease of installation
Vented shelves to assist with ventilation of unit
NEW flat pack design for 2023 - product requires assembly before use
*Please note: mounting bolts for attaching 3rd party equipment to the vented shelves are not included with this product
Specifications
Product Dimensions (W x D x H): 440 x 340 x 264mm (without wings)
Shelf Dimensions (H x D): 335 x 236mm
Distance Between Shelves: 54mm
Product Weight: 4.7kg
Carton / Box Dimensions (WxDxH): 530 x 330 x 260mm
Shipping Weight: 9.5kg
