Description

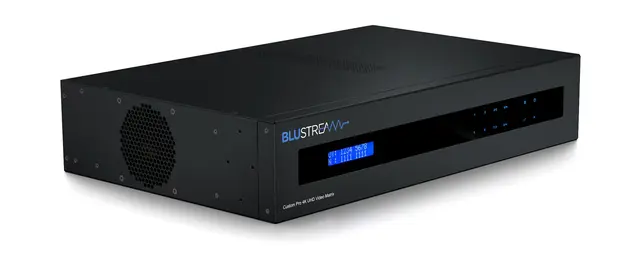

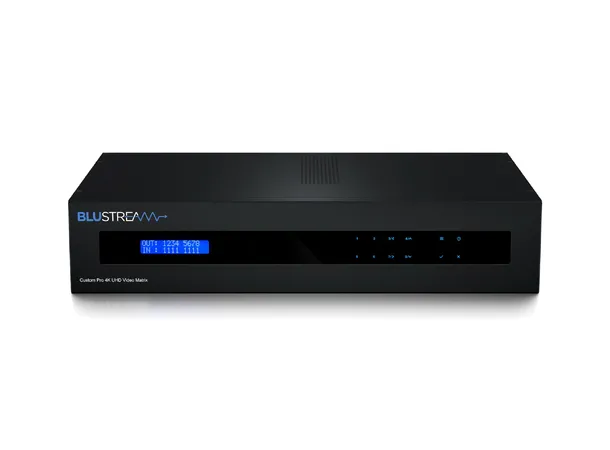

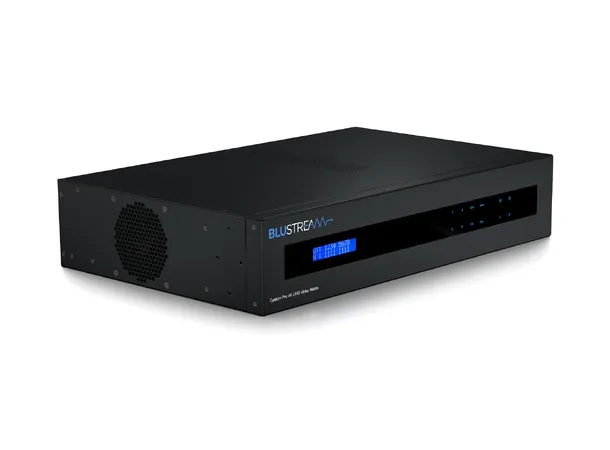

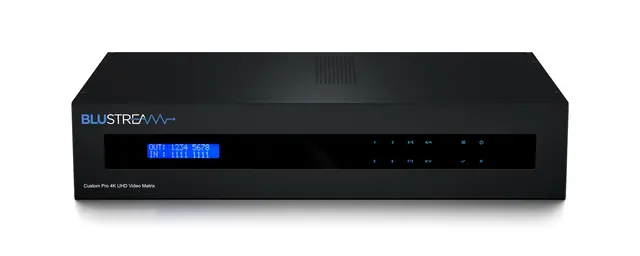

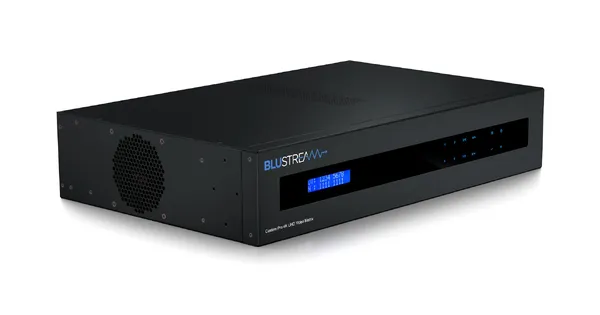

Our Custom Pro 8x8 HDMI Matrix delivers 4K 18Gbps HDR performance for the custom installation market. The PRO88HDMI-V2 is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix featuring Bi-directional IR and a web browser interface module for control and configuration of the matrix.

Key Features

• Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs

• Supports 18 Gbps 4K UHD video including HDR, HDR10+ and Dolby Vision

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Control via front panel, IR, RS-232 & TCP/IP

• 3rd Party drivers available for major control brands

• Advanced EDID management

• HDCP 2.2 compliant

Specifications

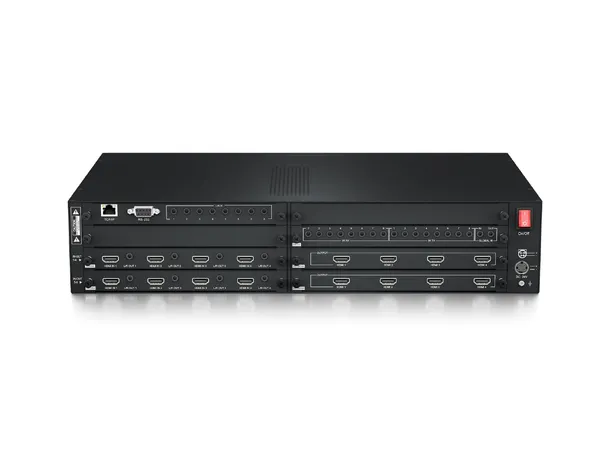

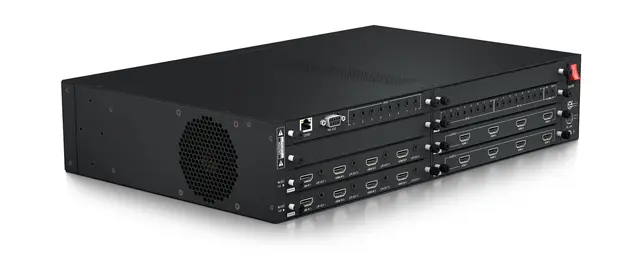

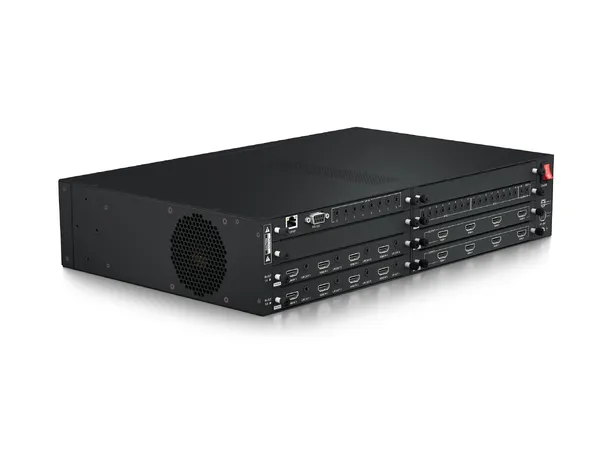

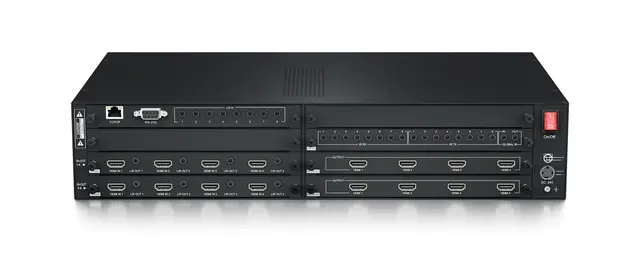

• Video Input Connectors: 8 x HDMI Type A, 19-pin female

• Video Output Connectors: 8 x HDMI Type A, 19-pin, female

• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)

• TCP/IP Control: RJ45, female

• Ethernet / Network: RJ45, female

• RS-232 Serial Port: DB-9, female

• Rack-Mountable: 2U rack height, rack ears included

• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet

• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet

• Shipping Weight: 5kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 24V/8A DC
