Description

Our Custom Pro 4x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.

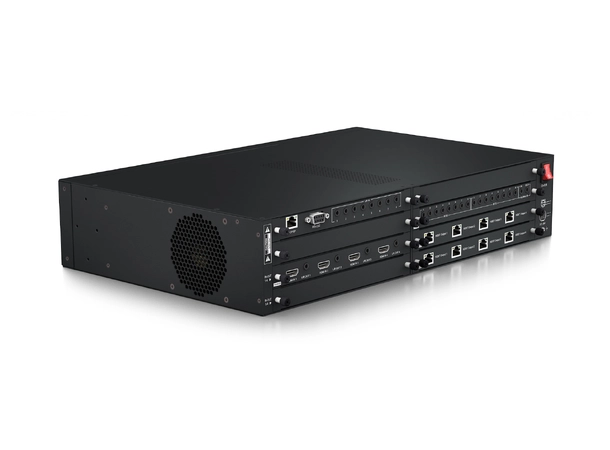

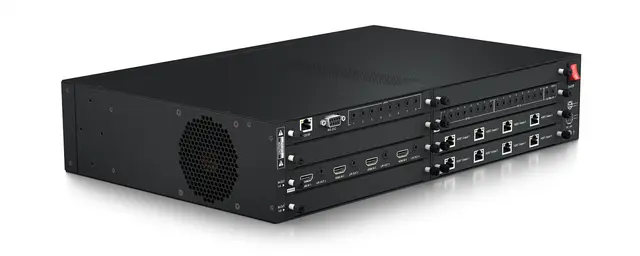

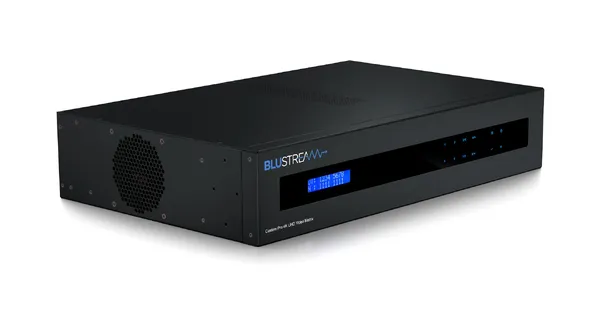

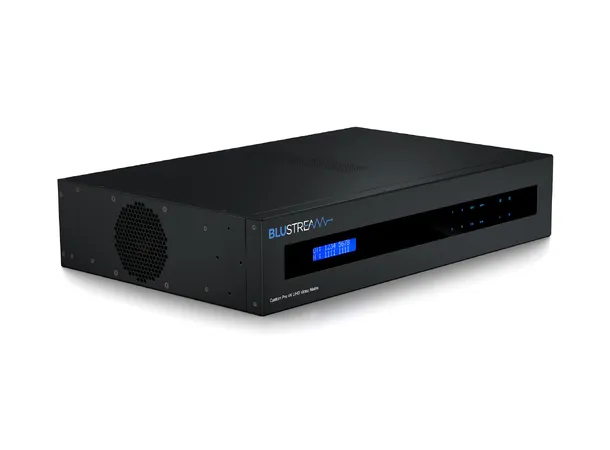

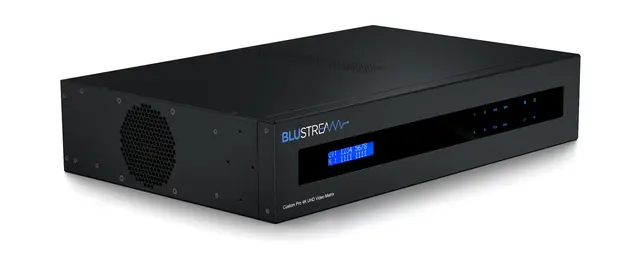

The PRO48HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K with HDR up to 40m), with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.

Key Features

• HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

• Features 4 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs

• Supports 4K 60Hz 4:4:4 UHD video up to 40m

• Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:

  - 1080p 60Hz (for screens that do not support 4K)

  - 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

• Supports 4K HDR

• Extends HDMI 1080p video up to 70m

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR

• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

• Analogue audio input can be embedded onto any HDMI input

• Web interface module for control and configuration of Matrix

• Supports bi-directional IR

• Supplied with Blustream IR receivers and emitters

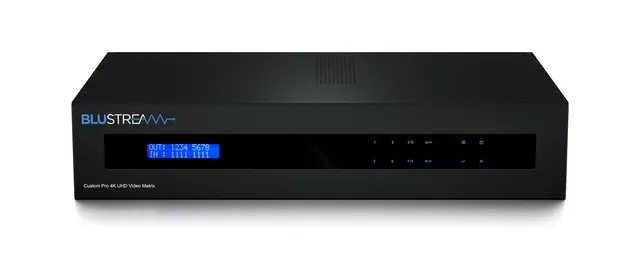

• Control via front panel, IR, RS-232 and TCP/IP

• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers

• 3rd Party drivers available for major control brands

• 2U Design for 19" rack mount integration - Mounting kit included

• Advanced EDID management

• HDCP 2.2 compliant

• To be used with the HEX70CS-RX receivers

Specifications

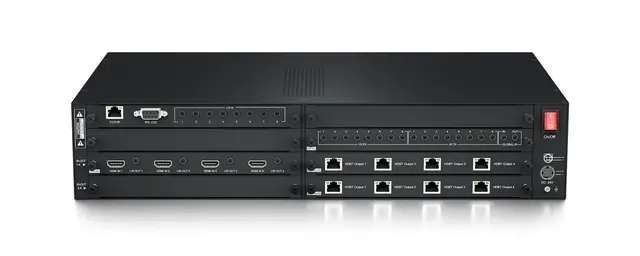

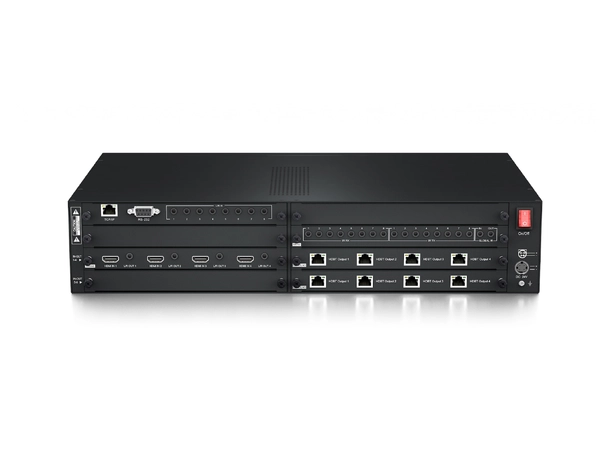

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female

• Video Output Connectors: 8 x HDBaseT™ RJ45 connector

• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)

• TCP/IP Control: RJ45, female

• Ethernet / Network: RJ45, female

• IR Input Ports: 9 x 3.5mm stereo jack

• RS-232 Serial Port: DB-9, female

• Rack Mountable: 2U rack height, rack ears included

• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet

• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet

• Shipping Weight: 5kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 24V/8A DC
