Description
Our OPT41AU is an advanced 4-way optical audio switch. Perfect for the integration of multiple audio sources with a sound bar.
The OPT41AU also has a built in DAC and simultaneous digital and analogue stereo audio outputs.
The OPT41AU supports 192kHz sample rates and up to 24-bit resolution for enhanced sound reproduction.
Box Contents
1 x OPT41AU
1 x IR Remote Control
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
Key Features
Features 4 x optical SPDIF digital inputs which can be switched to single optical output
DAC (Digital to Analogue Audio Converter) converts selected optical digital to analogue left / right stereo audio output
Built-in digital audio converter converts selected optical audio input to coaxial digital output
Outputs optical digital, coaxial digital and analogue left / right stereo audio concurrently
Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
Supports LPCM, DTS, Dolby Digital and Dolby Digital plus when used as a straight digital in / digital out switcher
Ultra low jitter and high fidelity design

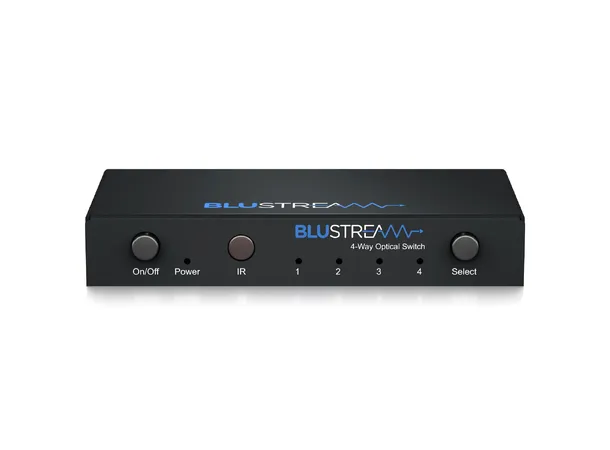

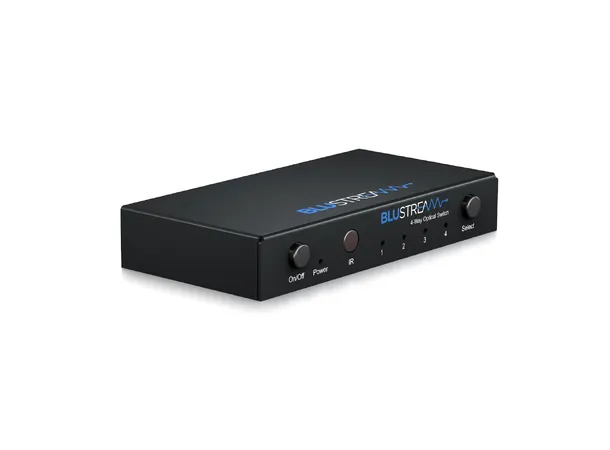

Input selection button on front panel to toggle between optical inputs
IR receiver on front panel to switch inputs and turn on / off audio outputs using supplied IR remote
External IR input can be used to extend IR with Blustream IR receiver cable
Specifications

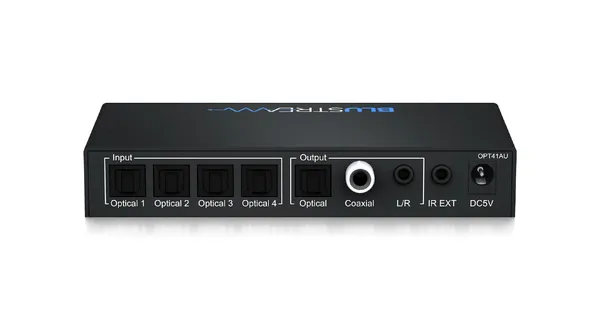

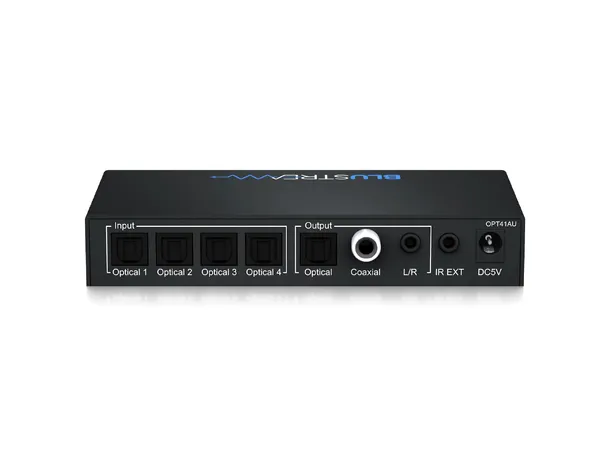

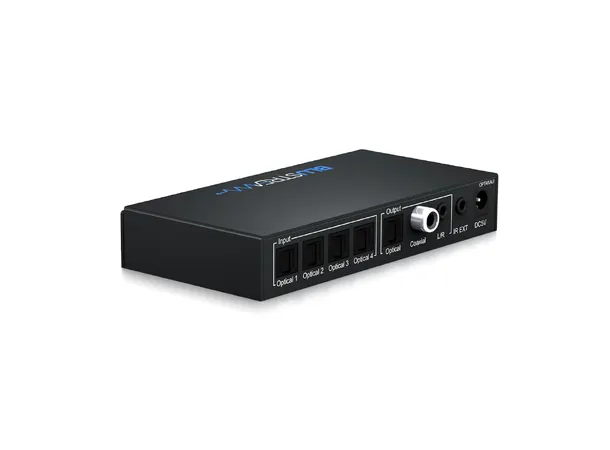

Audio Input Connectors: 4 x Optical (SPDIF)
Output Connectors: 1 x Optical (SPDIF), 1 x RCA (SPDIF) & 1 x Analogue audio L/R (3.5mm stereo jack)
IR Input Ports: 1 x 3.5mm stereo jack
Product Dimensions (W x D x H): 140 x 80 x 25mm (with connections)
Product Dimensions (W x D x H): 140 x 70 x 25mm (without connections)
Product Weight: 0.25kg (excluding accessories)
Carton / Box Dimensions (W x D x H): 210 x 125 x 90mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC, screw type connector
Mounting Kit Included
