Description

Our MX44VW 4K HDMI / VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes.

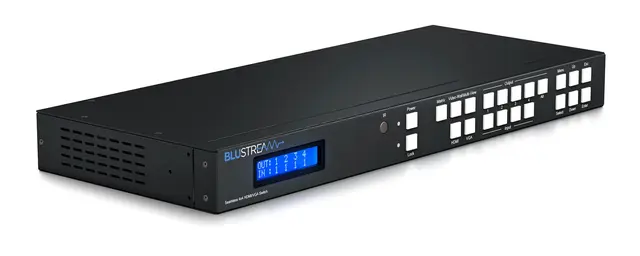

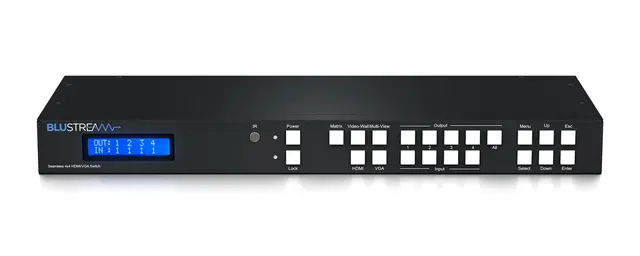

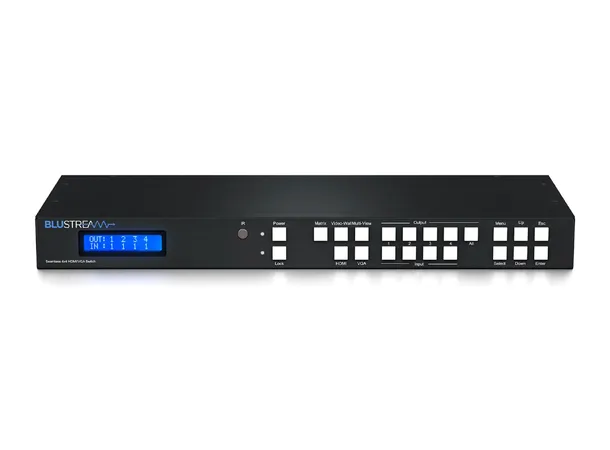

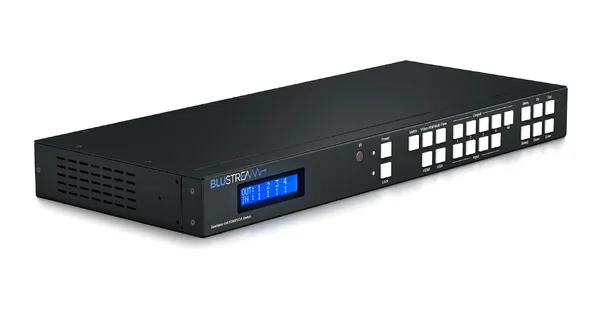

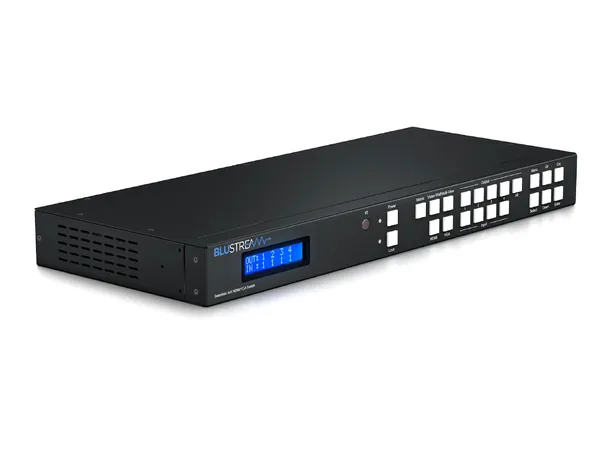

The MX44VW can perform as a 4x4 seamless matrix switcher, as a 2x2, 4x1 or 1x4 video wall solution, and as a quad multi-view presentation system. Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.

Box Contents

1 x MX44VW
1 x 12V/3A DC Power Supply
1 x Remote Control
1 x IR Control Cable - 3.5mm-3.5mm Cable
4 x IR Emitter
5 x IR Receiver
1 x Mounting Kit
1 x User Manual

Key Features

• Features 3 operational modes:

  - 4x4 Seamless Switching Matrix (HDMI or VGA inputs)

  - Video Wall (2x2, 4x1 or 1x4 configuration)

  - Multi-Viewer mode with preset layouts

• Features 4 x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio instantaneous seamless video switching (Matrix and Video Wall modes)

• Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)

• HDMI output resolution fixed to 1080p @60Hz

• Supports HDMI 2ch PCM audio only

• Discreet IR routing

• Supplied with Blustream IR receivers and emitters

• Control via front panel, IR, RS-232, TCP/IP and the Blustream matrix App

• 3rd party control drivers available for all major home control brands

• Advanced EDID management

• HDCP 1.4 compliant

Specifications

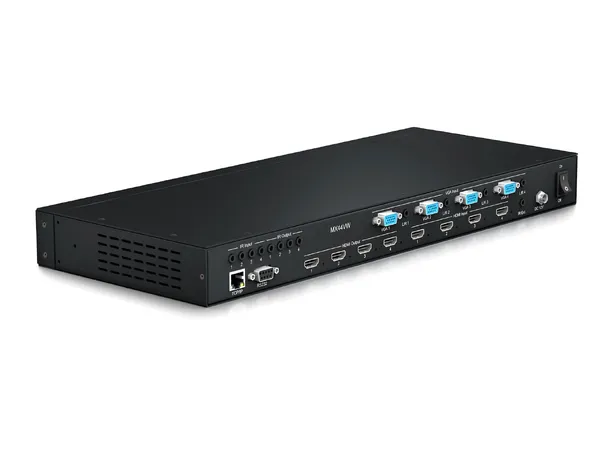

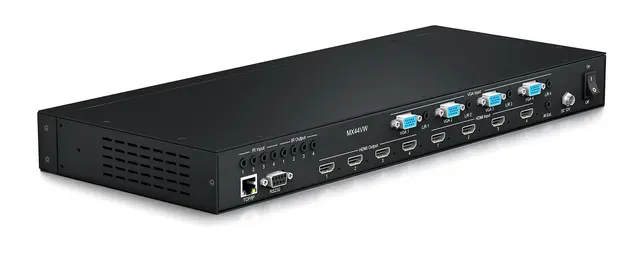

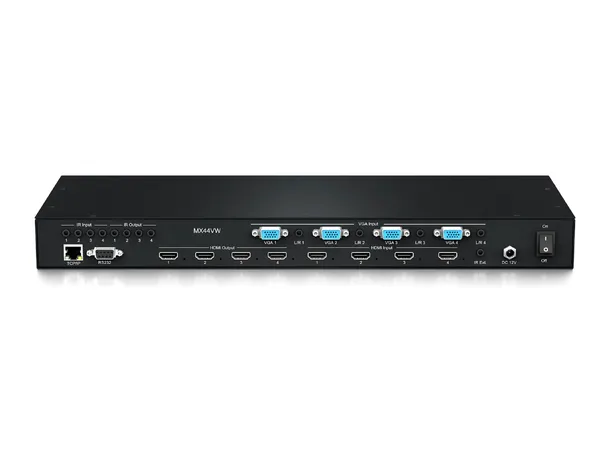

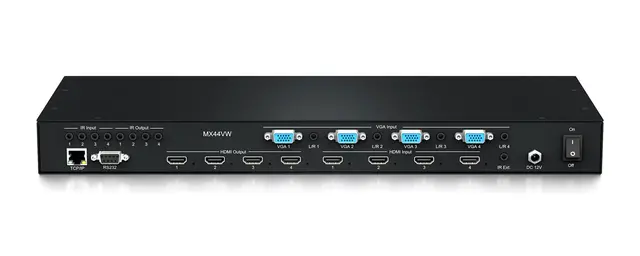

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking & 4 x VGA

• Video Output Connectors: 4 x HDMI Type A, 19-pin, female, locking

• Audio Input Connectors: 4 x Analogue audio 3.5mm stereo Jack

• RS-232 Serial Port: DB-9, female

• TCP/IP Control: RJ45, female

• IR Input Ports: 5 x 3.5mm stereo jack

• IR Output Ports: 4 x 3.5mm mono jack

• Mounting kit included

• Casing Dimensions (W x H x D): 440mm x 45mm x 180mm

• Dimensions including connections (W x H x D): 440mm x 44mm x 187mm

• Shipping Weight: 4.0kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 12V/3A DC
