Description

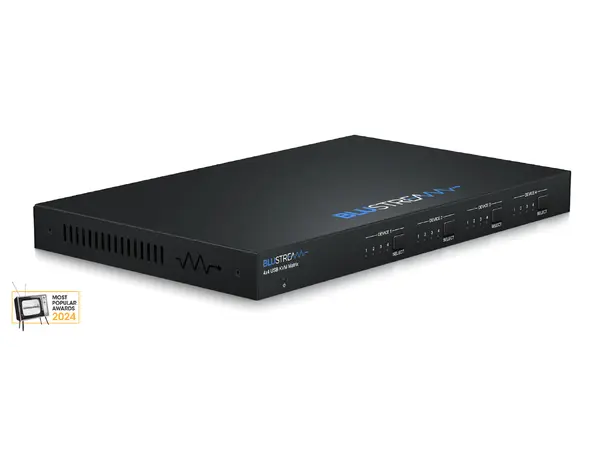

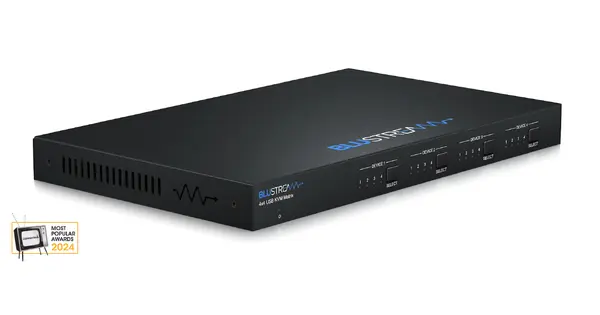

Our 4x4 USB 3.0 KVM Matrix offers unprecedented performance and value for the custom and commercial installation market.
The MX44KVM is a USB 3.0 Matrix package allowing 4x USB peripheral devices to be shared between 4x host devices, supporting plug-and-play capabilities, and USB data transfer rates up to 5Gbps.
The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.
An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.
Box Contents
1 x MX44KVM
1 x Mounting kit
1 x USB-A to USB-B cable (1m)
1 x IRR receiver
1 x IRCAB control cable (3.5mm - 3.5mm cable)
2 x 3-pin Phoenix connector
1 x 5-pin Phoenix connector
4 x Isolation feet
1 x 24V/1.25A DC power supply
1 x Quick Reference Guide
Key Features
4x4 USB KVM Matrix allowing up to 4 x USB peripheral devices to be shared between 4 x host devices
USB 3.0 connectivity with data transfer rates up to 5Gbps
Backwards compatible with USB 2.0 and 1.1
Plug-and-play with no drivers, downloads, or software required
USB-A connections provide 5V / 900mA
Features 4 x configurable GPIO ports for integration with 3rd party products
Features RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
Web interface module for control and configuration of the MX44KVM

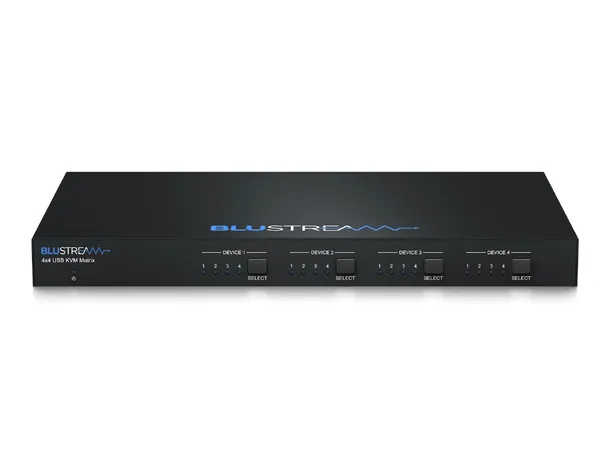

Control via front panel, IR, RS-232, and TCP/IP

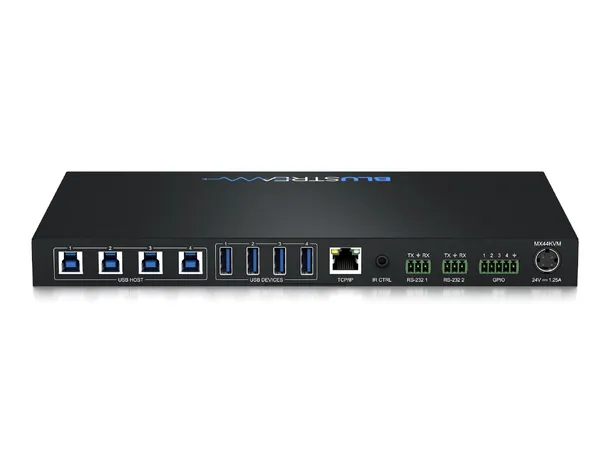

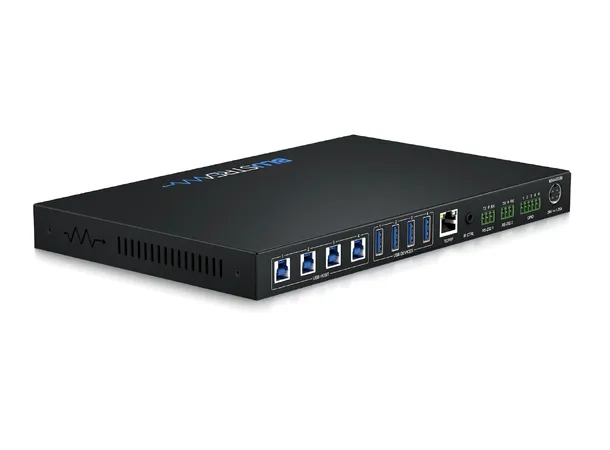

Specifications
USB Device: 4 x USB Type A, female
USB Host: 4 x USB Type B, female
RS-232 serial port: 2 x 3-pin Phoenix connector
IR Input port: 1 x 3.5mm stereo jack
TCP/IP Control: 1 x RJ45, female
GPIO Control: 1 x 5-pin Phoenix connector
Dimensions (W x D x H): 273mm x 168mm x 25mm
Shipping Weight: 2.65kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: 24V/1.25A DC, 4-pin DIN connector
