Description

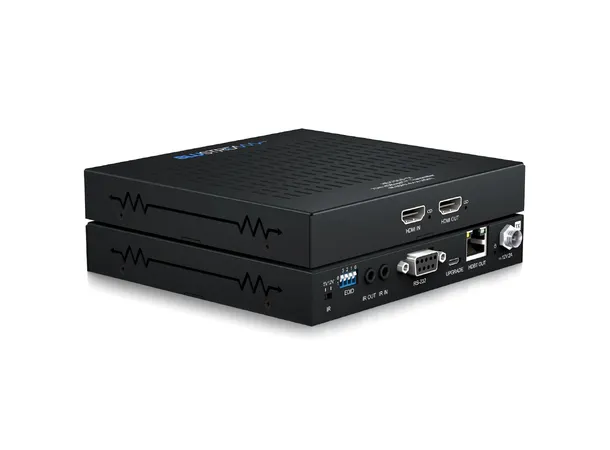

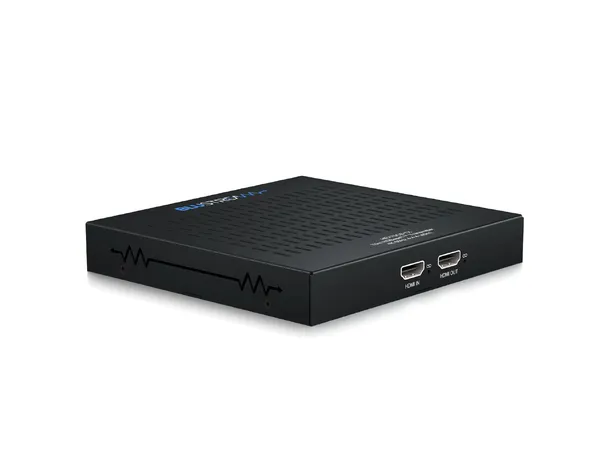

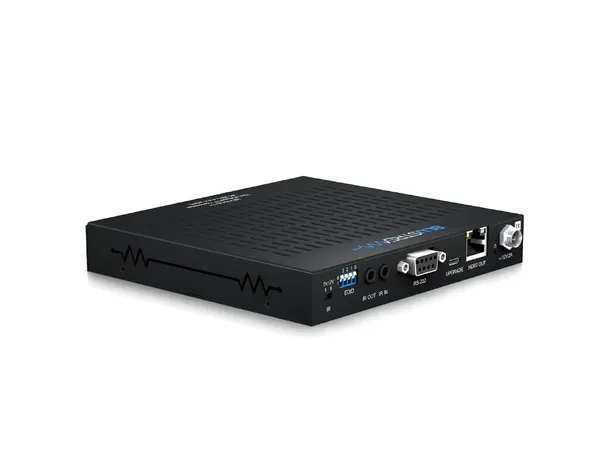

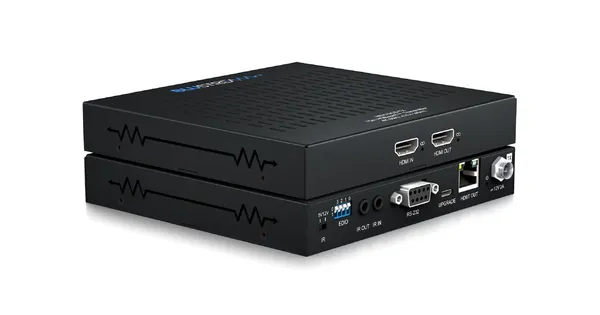

Our HEX70CS-TX HDMI 2.0 4K60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ transmitter offers market leading features and outstanding value utilising CSC technology with video down conversion.
The product extends HDMI, bi-directional IR & RS-232, and bi-directional PoC (Power over Cable) up to lengths of 70m (4K 40m) to a compatible receiver or matrix.

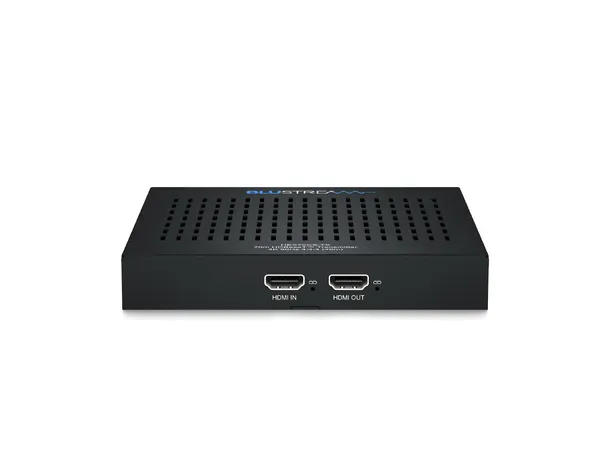

The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.
Box Contents
1 x HEX70CS-TX
1 x Mounting Kit
Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC)
Supports HDMI 2.0 18Gbps specification including HDR
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
Supports bi-directional RS-232 pass-through
Supports bi-directional IR pass-through
Supports bi-directional IR pass-through with switchable
5V/12V IR hardware support
HDCP 2.2 support
Specifications

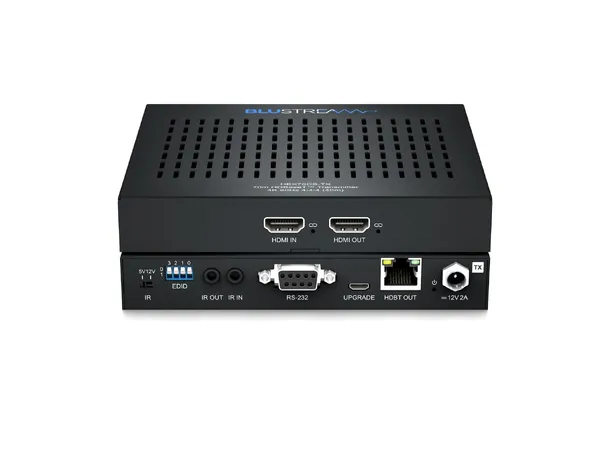

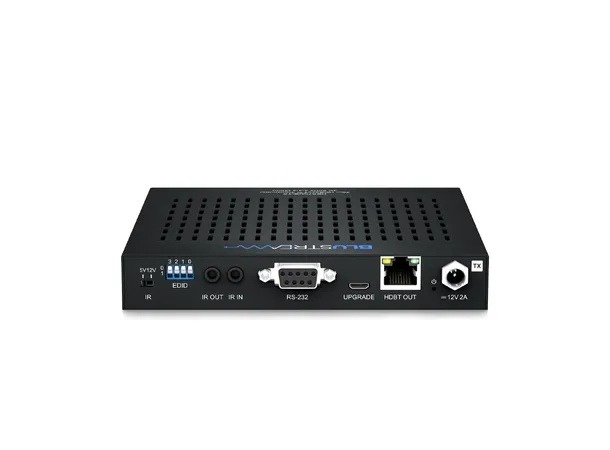

Video Input Connectors: 1 x HDMI Type A, female
Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female
RS-232 Serial Port: 1 x DB-9 female
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
EDID DIP Switch: 4-pin
Power Supply: 12V/2A DC, screw type connector
Power Consumption: 12.7W
Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
Ind. Extender Weight: 0.35kg (excluding accessories)
Shipping Weight: 1.4kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Mounting Kit Included
