Description

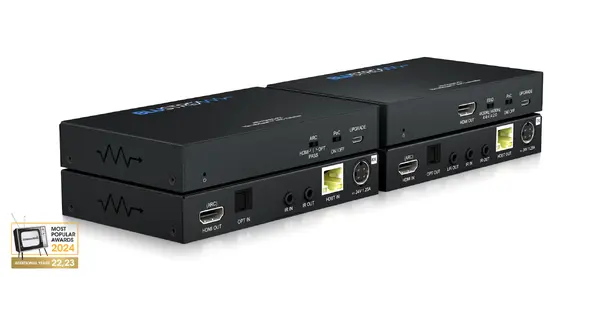

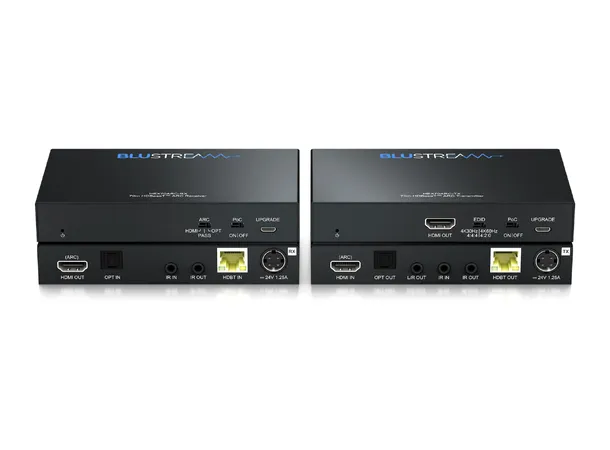

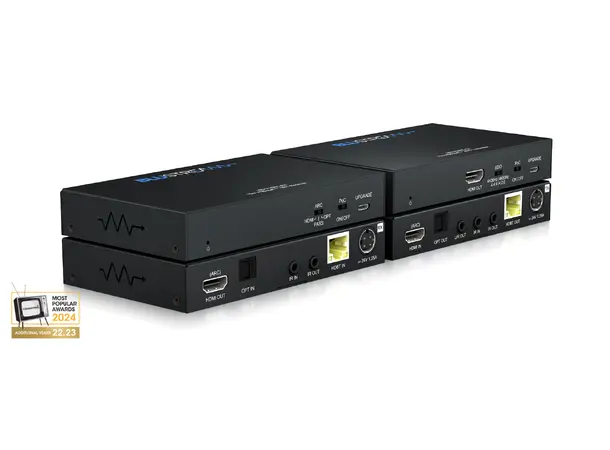

The HEX70ARC-KIT 4K HDBaseT™ ARC extender set offers market leading features for the custom installation industry. The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).
Box Contents
1 x HEX70ARC-TX
1 x HEX70ARC-RX
1 x 24V/1.25A DC Power Supply
1 x IR Emitter
1 x IR Receiver
2 x Mounting Bracket Sets
1 x Quick Reference Guide
Key Features
Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Extends HDMI 1080p up to a distance of 70m over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
Bi-directional IR pass-through
Supplied with Blustream IR receiver and emitter
Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
HDCP 2.2 compliant with smart EDID management
* Please note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.
Advanced Audio Return Channel (ARC) Functionality

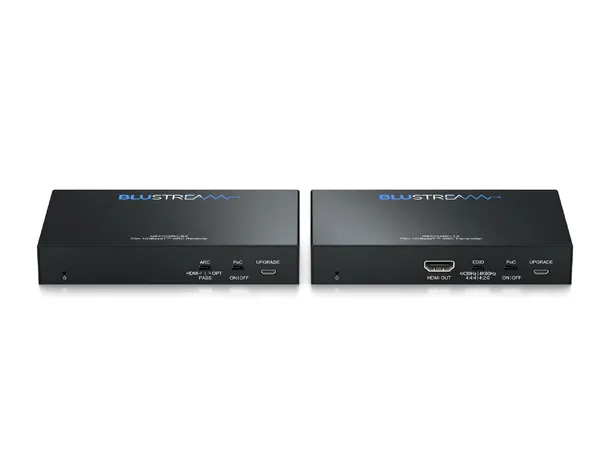

The three modes for Audio Return and CEC are controlled using the switch located on the Receiver unit. The switch positions are HDMI, PASS or OPT. See below for explanation:
HDMI - HDMI ARC in to the Receiver from the display, to Optical Out and L/R Out on the Transmitter. CEC communication over HDBaseT™ is blocked. Click here to view example connection diagram.
PASS - HDMI ARC in to the Receiver from the display to HDMI ARC, Optical Out and L/R Out on the Transmitter. CEC communication is passed through the HDBaseT™ link. Click here to view example connection diagram.
OPT - Optical audio in to the Receiver from the display, to Optical Out and L/R Out on the Transmitter. CEC communication over HDBaseT™ is blocked. Click here to view example connection diagram.
Specifications
HEX70ARC-TX:

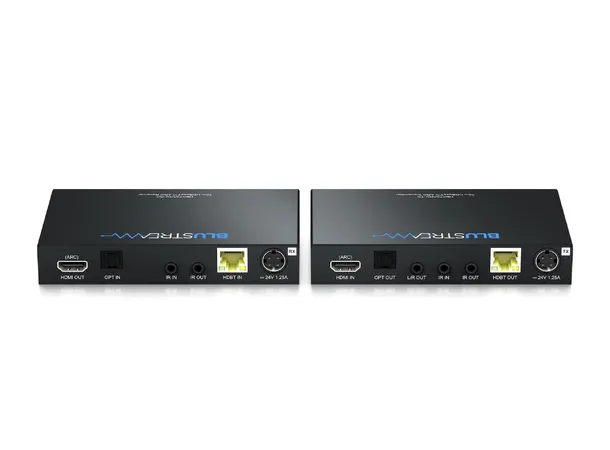

Video Input Connectors: 1 x HDMI Type A, female
Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
Audio Output Ports: 1 x Optical (S/PDIF), 1 x 3.5mm L/R analogue audio (audio return only)
IR Input Port: 1 x 3.5mm stereo jack
IR Output Port: 1 x 3.5mm mono jack
Product Upgrade: 1 x Micro-USB, female
Casing Dimensions (W x D x H): 135 x 84 x 21mm
HEX70ARC-RX:
Video Input Connectors: 1 x HDBaseT™ RJ45 connector
Video Output Connectors: 1 x HDMI Type A, female
Audio Input Port: 1 x Optical (S/PDIF)
IR Input Port: 1 x 3.5mm stereo jack
IR Output Port: 1 x 3.5mm mono jack
Product Upgrade: 1 x Micro-USB, female
Casing Dimensions (W x D x H): 135 x 84 x 21mm
Power Supply: 1 x 24V/1.25A DC, 4-pin DIN connector
Box Dimensions (W x D x H): 248 x 151 x 103mm
Shipping Weight: 1kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)

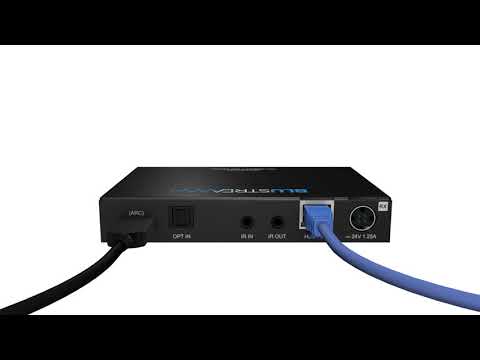

Product Video
