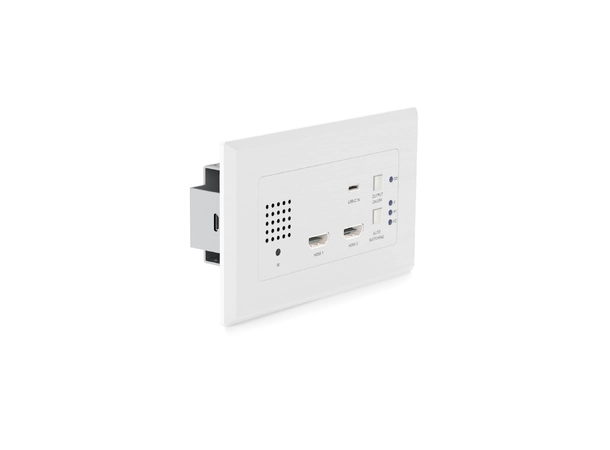

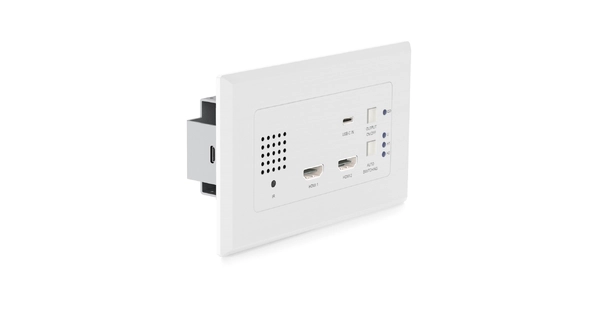

HEX31WPW-TX

2 x HDMI & 1 x USB-C Wall Plate HDBaseT™ Transmitter

The HEX31WPW-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m at 4K 60Hz 4:2:0).

This transmitter features both manual or automated source selection and includes display on/off control via CEC, RS-232, and IR (via compatible HDBaseT™ receivers/Matrix). Designed to work with all Blustream HDBaseT™ receiver and matrix solutions, it can be installed in both UK and European backboxes and powered locally or via compatible Blustream HDBaseT™ products.

Key Features

• Features 2 x HDMI & 1 x USB-C inputs with manual/auto source selection
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
• Input selection via front panel, IR, or RS-232
• Programmable ON/OFF button utilising IR, RS-232, or CEC for control of display device at HDBaseT™ receiver
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver/matrix products
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver/matrix products
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support

Note: The USB-C input port on this unit does not provide PD charging to devices connected for video distribution.

Specifications

• Video Input Connectors: 2 x HDMI Type A, 1 x USB-C
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• Control Ports: RS-232, IR
• Dimensions: Designed for both UK and EU backboxes
• Power: 12V-48V PoC or local power supply

Included Accessories

• Details about accessories can be added here (not specified).
