Description

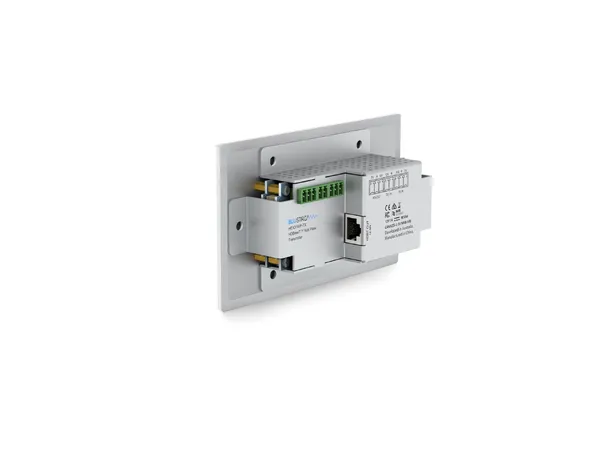

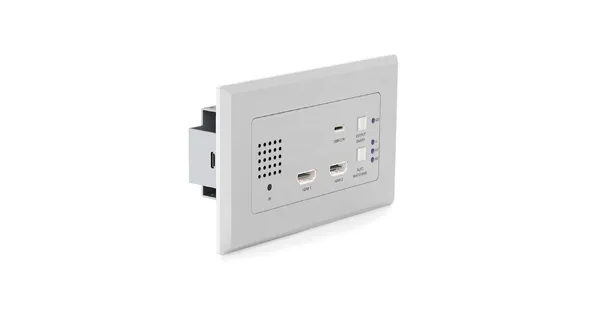

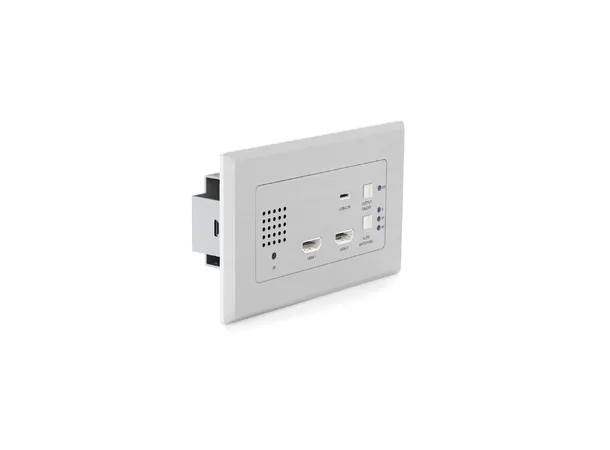

Our HEX31WP-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0).

The HEX31WP-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™ receivers / Matrix).

The HEX31WP-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.

Box Contents

1 x HEX31WP-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate
1 x RS-232 Control Cable
1 x Quick Reference Guide

Key Features

• Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Extends HDMI at 1080p up to a distance of 70m

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Input selection via front panel, IR or RS-232

• Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver

• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products

• Bi-directional RS-232 pass through

• Supports IR pass-through to HDBaseT™ device

• Compatible with all Blustream HDBaseT™ receiver / matrix products *

• Magnetic faceplate surround allowing both UK & EU back box compatibility

• HDCP 2.2 support


  * Technical performance is subject to the features supported on the connected HDBaseT™ device

Specifications

• Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 1 x USB-C Type C

• Video Output Connectors: 1 x HDBaseT™ RJ45 connector

• RS-232 Serial Port: 1 x 3-Pin Phoenix connector

• IR Input Port: 1 x 3-Pin Phoenix connector

• Product Upgrade: 1 x Micro USB female

• Local Power Input: 1 x 2-Pin Phoenix connector

• Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)

• Casing Dimensions (W x H x D): 146mm x 86mm x 44mm (with faceplate)

• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm

• Backbox Housed Unit Dimensions (W x H x D): 109mm x 49mm x 35mm (part of unit housed inside backbox)

• Backbox Mounting Depth: 40mm (minimum) - backbox not supplied

• Shipping Weight: 2.8kg

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

• Power Supply: 12V/1A DC
