Description

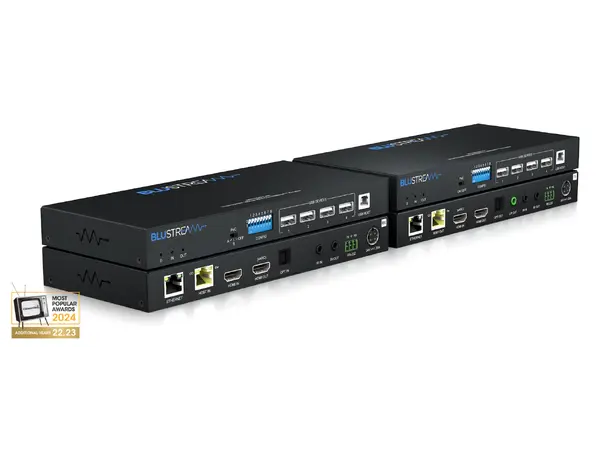

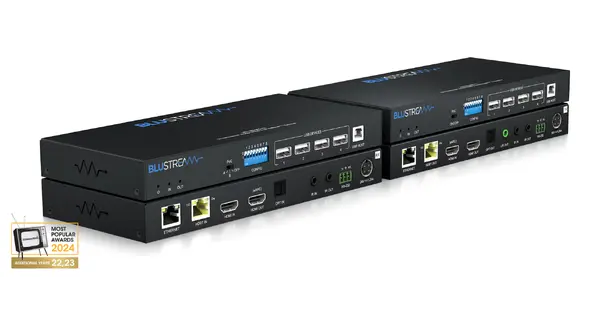

The HEX18GARC-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.

The HEX18GARC-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.

The HEX18GARC-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable. The HEX18GARC-KIT also provides enhanced features including KVM, eARC via HDMI, or ARC via HDMI or Optical (S/PDIF), and 1Gb Ethernet pass through.

Box Contents

1 x HEX18GARC-TX Transmitter
1 x HEX18GARC-RX Receiver
1 x 24V/1.25A DC power supply
1 x USB-A to USB-B cable
1 x IRE1 receiver
1 x IRR emitter
4 x Mounting brackets
1 x Quick Reference Guide

Key Features

• HDBaseT spec 3.0 offers the first true solution for uncompressed and unconverted, bit-exact distribution of HDMI2.0 signals up to 18Gbps (4K 60Hz 4:4:4) over CAT6A cabling up to 100m

• Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision

• Supports HDMI video distribution up to 100m*

• Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issues

• Supports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputs

• Supports audio return to HDMI (eARC compatible), optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)

• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissions

• Features USB 2.0 for KVM with speeds of up to 350Mbps

• Bi-directional Ethernet (1Gb), IR, & RS-232 pass through

• Supplied with Blustream IR receiver and emitter

• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

• Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4

  *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling

Specifications

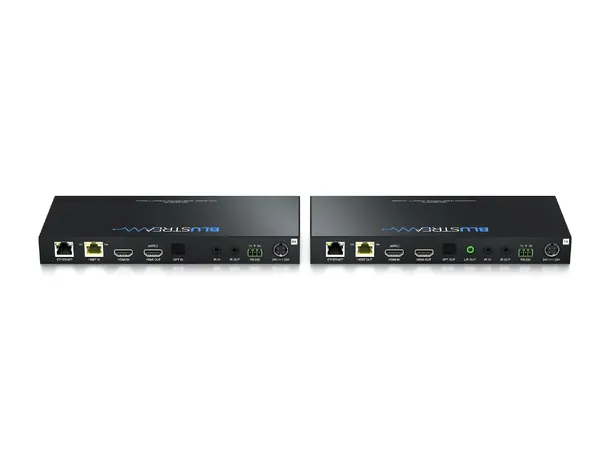

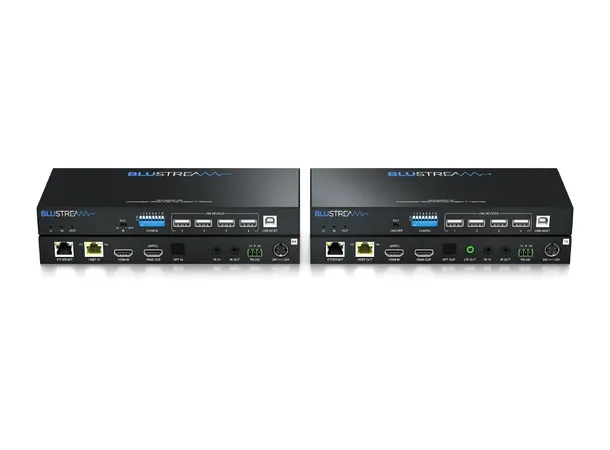

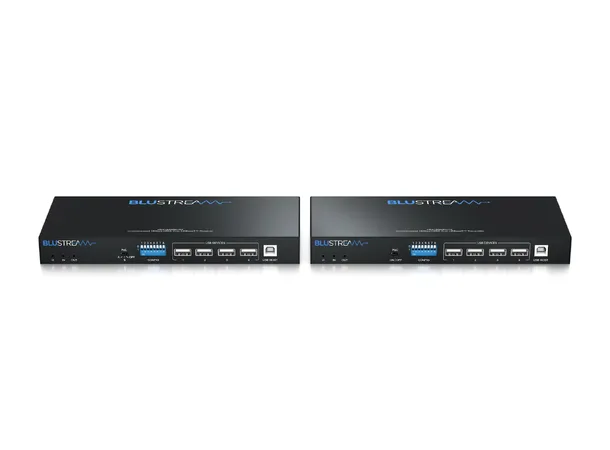

HEX18GARC-TX

• Video Input Connectors: 1 x HDMI Type A, female

• Video Output Connectors: 1 x HDBaseT™ RJ45 connector,  1x HDMI Type A, female

• Audio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (S/PDIF)

• Ethernet port: 1 x RJ45 connector

• RS-232 serial port: 1 x 3-pin Phoenix connector

• USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A

• IR Input ports: 1 x 3.5mm stereo jack

• IR Output ports: 1 x 3.5mm mono jack

• CTRL: 8-PIN DIP switch

HEX18GARC-RX

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female

• Video Output Connectors: 1 x HDMI Type A, female (reserved for future use)

• Audio Input Connectors: 1 x Optical (S/PDIF)

• Ethernet port: 1 x RJ45 connector

• RS-232 serial port: 1 x 3-pin Phoenix connector

• USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A

• IR Input ports: 1 x 3.5mm stereo jack

• IR Output ports: 1 x 3.5mm mono jack

• CTRL: 8-PIN DIP switch

• Casing Dimensions (W x D x H ): 220mm x 100mm x 25mm (TX/RX)

• Shipping Weight (kit): 1.8kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Mounting kits included

• Power Supply: 1 x 24V/1.25A DC
