Description
Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility.

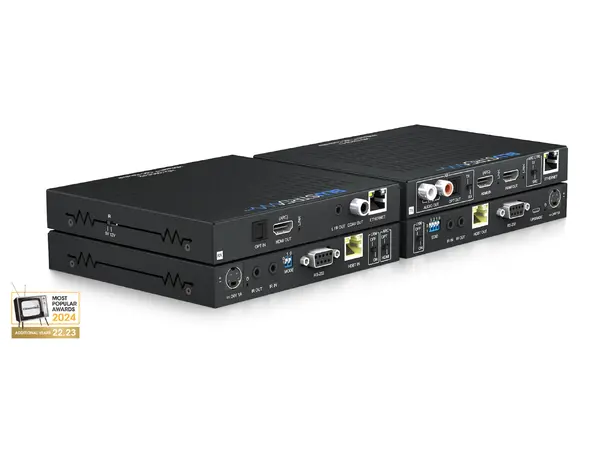

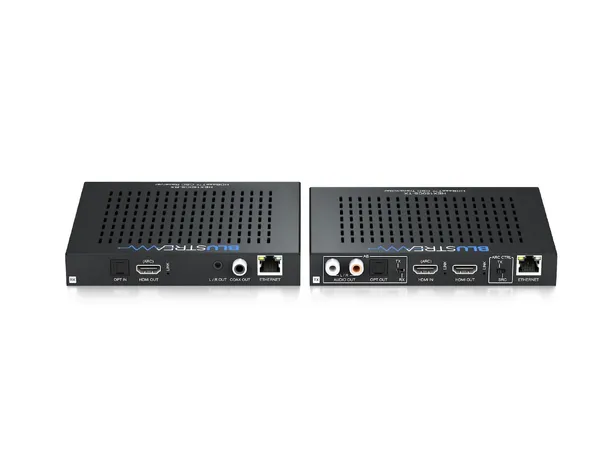

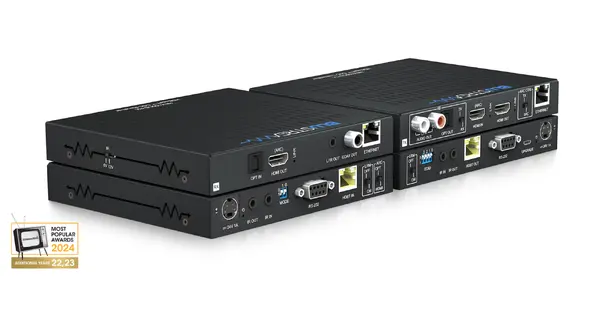

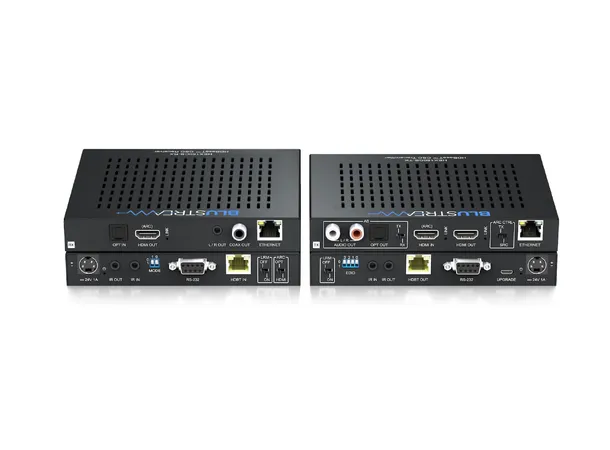

The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion.
The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoC up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.
Box Contents
1 x HEX150CS-TX
1 x HEX150CS-RX
1 x 24V/1A DC Power Supply
1 x IR Receiver
1 x IR Emitter
2 x Mounting Brackets
1 x Quick Reference Guide
Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR support
Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 100m
Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
HDMI loop out on Transmitter
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility, and handshaking issues
Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Bi-directional 10/100BaseT Ethernet pass-through
Bi-directional IR & RS-232 pass-through
Supplied with Blustream 5V IR receiver and emitter
Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
Advanced EDID management
HDCP 2.2 support
Specifications
HEX150CS-TX:
Video Input Connectors: 1 x HDMI Type A, female
Video Output Connectors: 1 x HDBaseT™ RJ45 connector
Audio Output Connectors: 2 x RCA (L/R), 1 x optical (SPDIF)
Ethernet Port: 1 x RJ45 connector
RS-232 Serial Port: 1 x DB-9 female
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
EDID: 4-pin DIP switch
Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
HEX150CS-RX:
Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
Video Output Connectors: 1 x HDMI Type A, female
Audio Input Connectors: 1 x Optical (SPDIF)
Audio Output Connectors: 1 x 3.5mm stereo jack (L/R), 1 x RCA Coaxial Digital
Ethernet Port: 1 x RJ45 connector,
RS-232 Serial Port: 1 x DB-9 female
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
Casing Dimensions (W x D x H): 148mm x 134mm x 22mm (RX), 156mm x 123mm x 23mm (TX)
Dimensions (W x D x H): 148mm x 153mm x 22mm (RX), 156mm x 135mm x 23mm (TX) (including connections)
Shipping Weight (Kit): 1.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Mounting Kits included
Power Supply: 1 x 24V/1A DC, screw connector
