Description

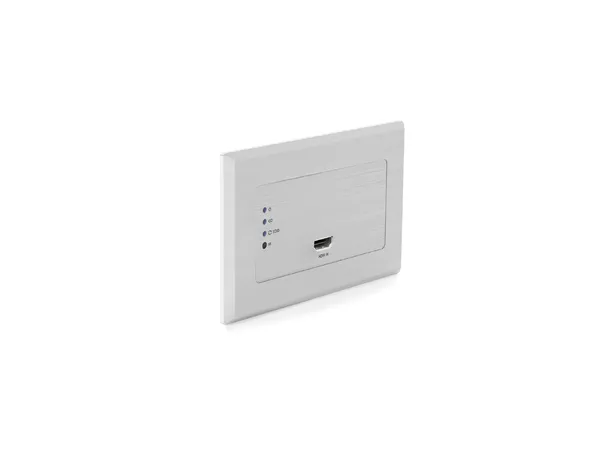

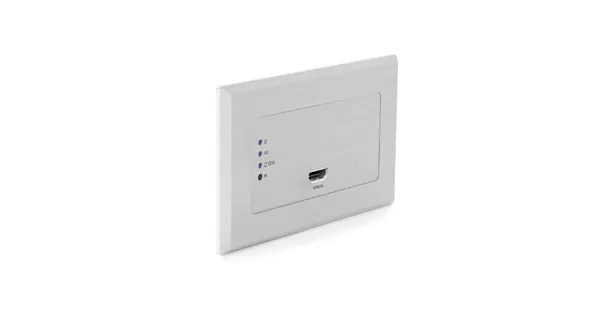

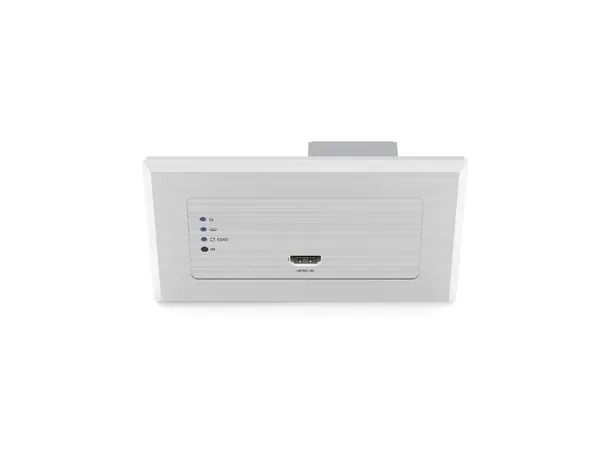

Our HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0).
The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
Box Contents
1 x HEX11WP-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate surround
1 x Quick Reference Guide
Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Extends HDMI at 1080p up to a distance of 70m
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products *
Bi-directional RS-232 pass-through
Supports IR pass-through to HDBaseT™ receiver / matrix device
Compatible with all Blustream HDBaseT™ receiver / matrix products **
Magnetic faceplate surround allowing both UK & EU backbox compatibility
HDCP 2.2 support
* When powering the HEX11WP-TX locally, PoC is not passed to a connected HDBaseT™ receiver device until there is an active source HDMI connection
** Technical performance is subject to the features supported on the connected HDBaseT™ device
Specifications

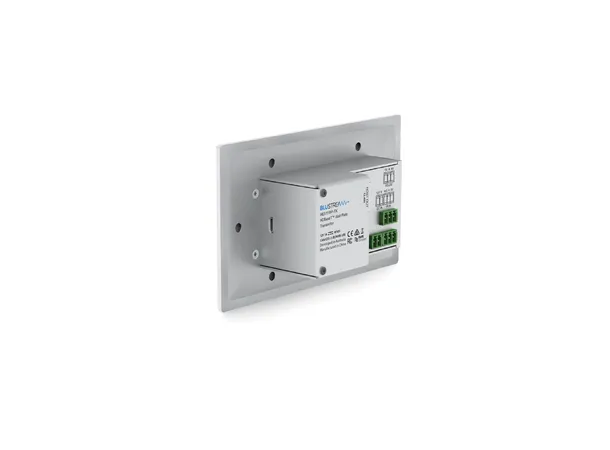

Video Input Connectors: 1 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDBaseT™ RJ45 connector
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
IR Input Port: 1 x 3-Pin Phoenix connector
Local Power Input: 1 x 2-Pin Phoenix connector
Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
Casing Dimensions (W x H x D): 146mm x 86mm x 44mm (with faceplate)
Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
Backbox House Unit Dimensions (W x H x D): 78mm x 49mm x 39mm (part of unit housed inside backbox)
UK / EU Backbox Mounting Depth: 40mm (minimum) - backbox not supplied
Shipping Weight: 2.1kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: 12V/1A DC
