Description

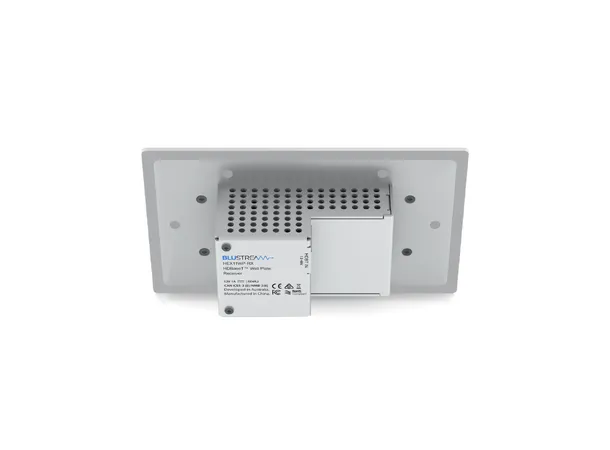

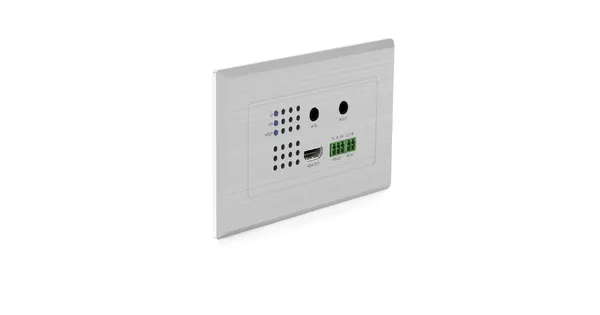

Our HEX11WP-RX HDMI Wall Plate HDBaseT™ receiver is a 4K solution designed to receive HDMI signals up to 70m at 1080p (40m at 4K 60Hz 4:2:0).
The HEX11WP-RX has been designed to work with all Blustream HDBaseT™ transmitter and matrix solutions, be installed in both UK and European backboxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
Box Contents
1 x HEX11WP-RX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate
1 x Quick Reference Guide
Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Extends HDMI at 1080p up to a distance of 70m
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports CEC and RS-232 pass through
Supports bi-directional IR pass-through to compatible HDBaseT™ device
Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products
Compatible with all Blustream HDBaseT™ transmitter / matrix products*
Magnetic faceplate surround allowing both UK & EU backbox compatibility
HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device.
Specifications

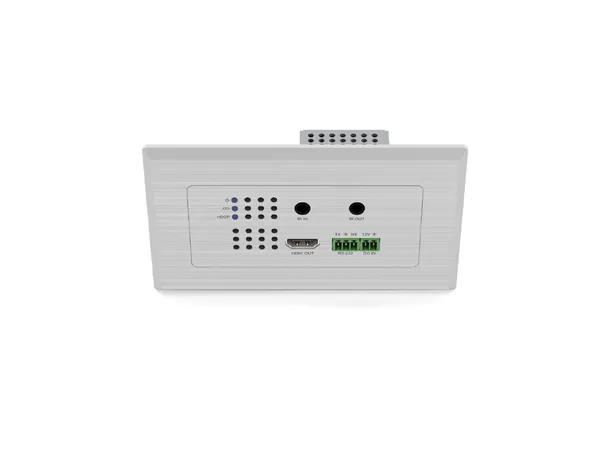

Video Input Connectors: 1 x HDBaseT™ RJ45 connector
Video Output Connectors: 1 x HDMI Type A, 19-pin, female
RS-232 Serial Port: 1 x 3-pin phoenix connector
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
Local Power Input: 1 x 2-pin phoenix connector
Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
Backbox Mounting Depth: 40mm (minimum) - backbox not supplied
Shipping Weight: 0.7kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: 12V/1A DC
