Description

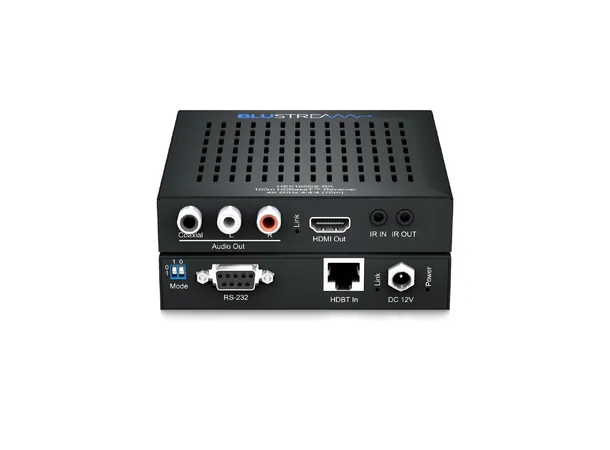

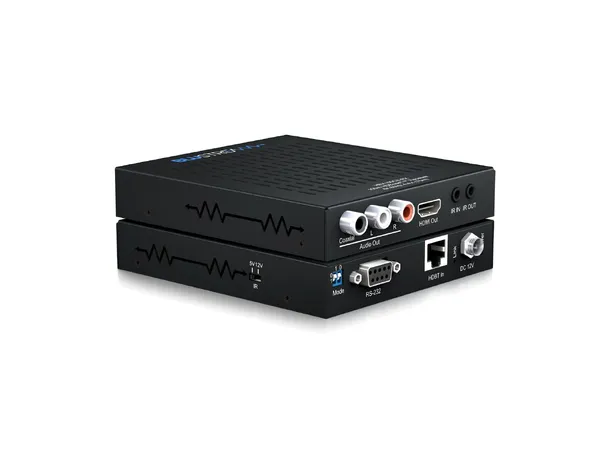

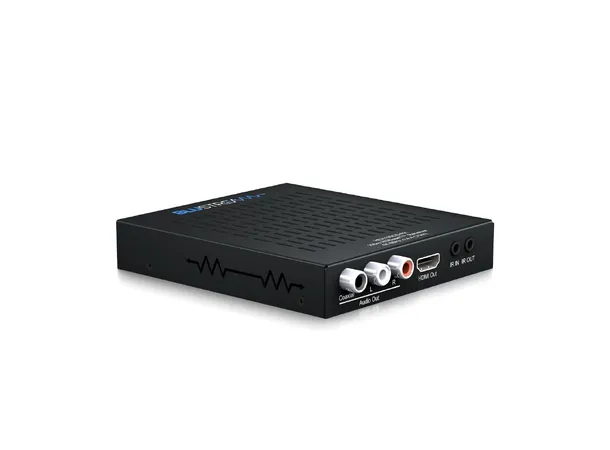

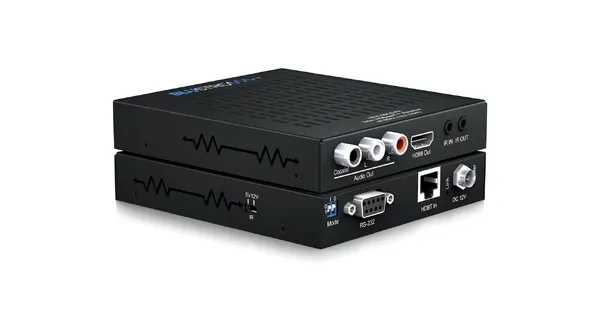

Our HEX100CS-RX HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ Receiver offers market leading features and outstanding value utilising CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 100m (4K to 70m). The Receiver features simultaneous analogue stereo and digital coax audio breakout.

Box Contents

1 x HEX100CS-RX
1 x Mounting Kit

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

• Supports 4K 60Hz 4:4:4 UHD video up to 70m

• Extends HDMI 1080p video up to 100m

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

• HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues

• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

• Supports bi-directional RS-232 pass-through

• Supports bi-directional IR pass-through

• Advanced EDID management

• HDCP 2.2 compliant

Specifications

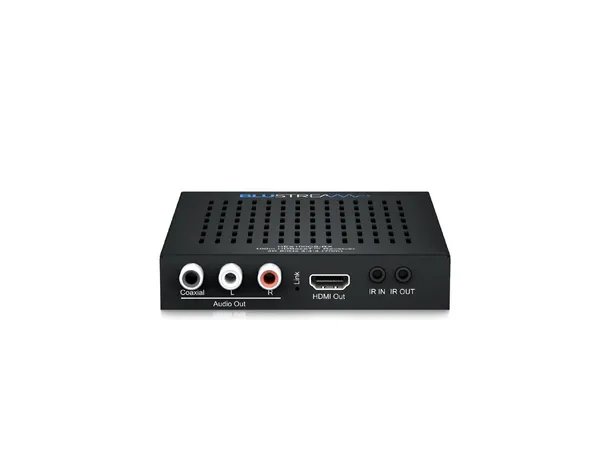

• Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right)

• IR Output Ports: 1 x 3.5mm mono jack

• IR Input Ports: 1 x 3.5mm stereo jack

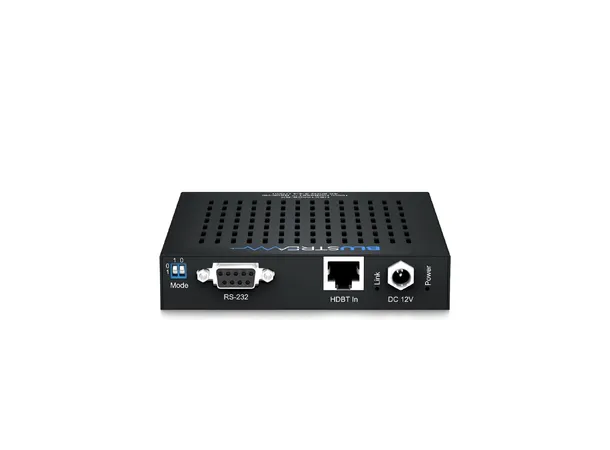

• RS-232 Serial Port: 1 x DB-9 female

• Video Output Connectors: 1 x HDMI Type A, female

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector

• Power Supply: 12V/2A DC, screw type connector (not supplied)

• Power Consumption: 5.6W

• Unit Dimensions (W x D x H): 113 x 124 x 22mm (without connections)

• Unit Dimensions (W x D x H): 113 x 138 x 22mm (with connections)

• Unit Weight: 0.35kg (excluding accessories)

• Shipping Weight: 0.5kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Mounting Kit Included
