Description

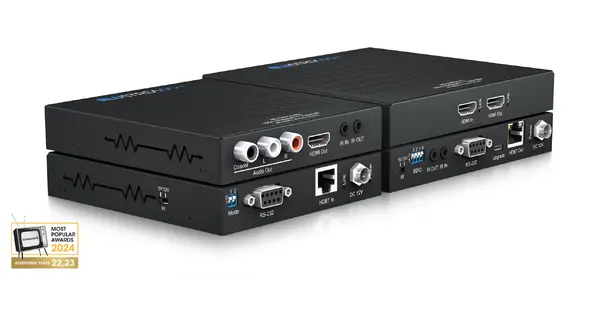

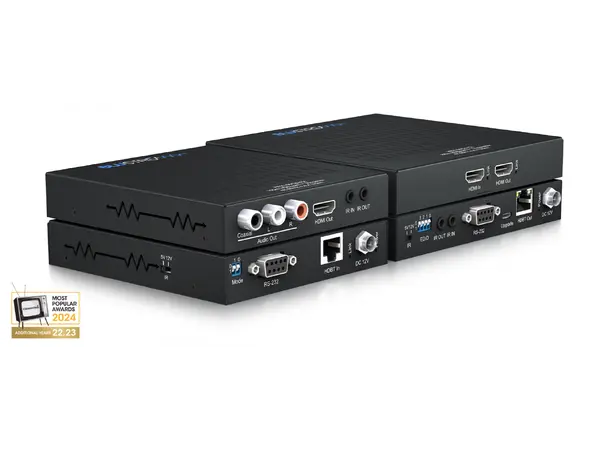

Our HEX100CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.
The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 100m (4K to 70m).

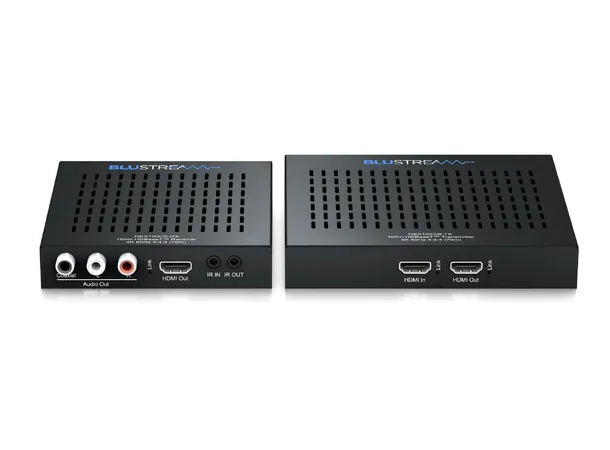

The transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The receiver features simultaneous analogue stereo and digital coax audio breakout.
Box Contents
1 x HEX100CS-TX
1 x HEX100CS-RX
2 x Mounting Brackets
1 x 12V/2A Power Supply
1 x IR Emitter
1 x IR Receiver
1 x Quick Reference Guide
Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
Video down-conversion on HDMI receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the transmitter HDMI loop out.
Supports 4K 60Hz 4:4:4 UHD video up to 70m
Extends HDMI 1080p video up to 100m
Features 1 x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
Supports bi-directional RS-232 pass-through
Supports bi-directional IR pass-through
Supplied with Blustream 5V IR receiver and emitter
Advanced EDID management
HDCP 2.2 compliant
Specifications

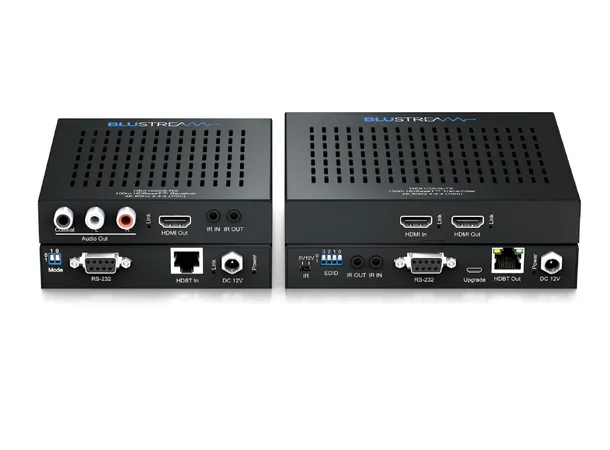

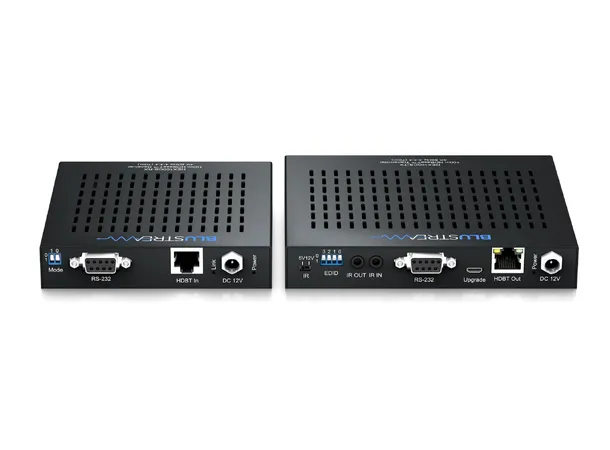

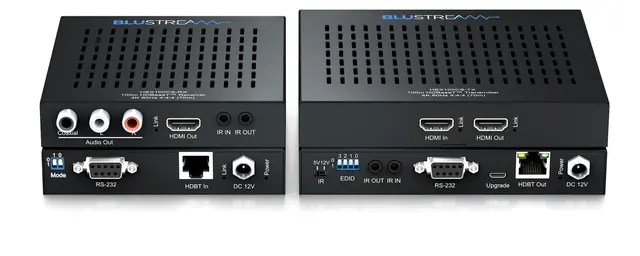

HEX100CS-TX:
Video Input Connectors: 1 x HDMI Type A, female
Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
RS-232 Serial Port: 1 x DB-9 female
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
EDID DIP Switch: 4-pin
HEX100CS-RX:
Video Input Connectors: 1 x HDBaseT™ RJ45 connector
Video Output Connectors: 1 x HDMI Type A, female
RS-232 Serial Port: 1 x DB-9 female
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
Audio Output Connectors: 1 x RCA (S/PDIF) & 2 x Analog RCA (Left / Right)
Power Supply: 12V/2A DC, screw type connector
Power Consumption: 12.7W
Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
Ind. Extender Weight: 0.35kg (excluding accessories)
Carton / Box Dimensions (W x D x H):mm
Shipping Weight: 1.4kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Mounting Kits Included
