Description

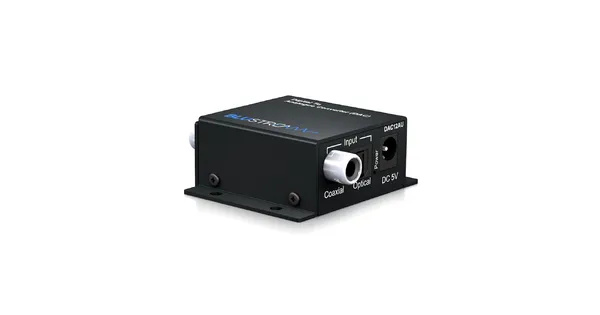

Our DAC12AU is designed to convert either coaxial or optical signals from a digital signal to analogue stereo audio.

The DAC12AU also includes a digital converter which converts optical audio in to a coaxial digital output. This provides the perfect cost effective solution when connecting the digital audio output from a TV display to an analogue input on an amplifier.

The DAC12AU utilises 192kHz sample rates for enhanced sound reproduction.

Box Contents

1 x DAC12AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual

Key Features

• Digital to Analogue audio Converter) converts either optical or coaxial digital to analogue stereo left / right audio output

• Converts optical digital audio input to coaxial digital audio output

• Auto-detects digital connection in use

• Optical digital input has priority over coaxial digital input

• Outputs coaxial digital and analogue L/R audio concurrently*

• Supports sample rates 32 kHz, 44.1kHz, 48 kHz, 96 kHz & 192 kHz up to 24-bit resolution

• Plug-and-play


  * DAC12AU does not down mix Dolby / DTS / multi-channel audio signals

Specifications

• Audio Input Connectors: 1 x optical digital & 1 x coaxial RCA (S/PDIF)

• Audio Output Connectors: 2 x Analogue stereo left / right & 1 x Coaxial RCA (S/PDIF)

• Dimensions (W x H x D): 50mm x 26mm x 42mm

• Dimensions including connections (W x H x D): 68mm x 26mm x 42mm

• Shipping Weight: 0.4kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 5V/1A DC
