Description

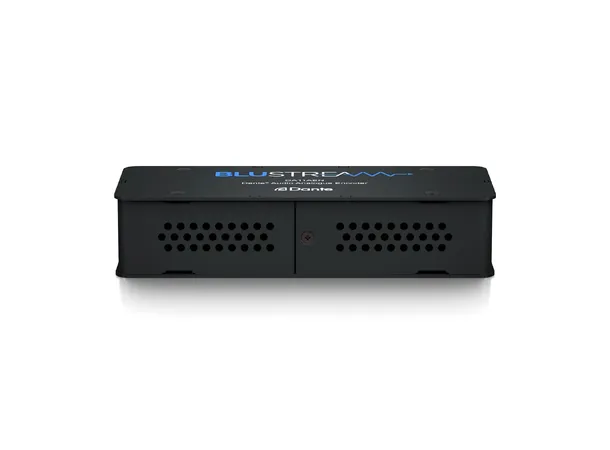

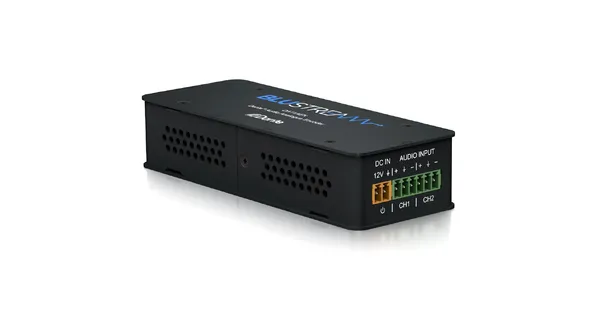

Our DA11AEN has been designed to encode unbalanced or balanced 2ch analogue audio to Dante® digital signal.
The DA11AEN allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream Matrix products or distribution products to be connected as a source within a Dante® network.
The DA11AEN is a plug & play device that is powered using either PoE (Power over Ethernet) from any PoE network switch or via local 12v power supply input (sold separately).
The DA11AEN also supports AES67 RTP audio transport with independent sensitivity adjustment for each channel as required.
Box Contents
1 x DA11AEN
1 x Quick Reference Guide
Key Features
Encodes unbalanced or balanced 2ch analogue audio to a Dante® digital signal
Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

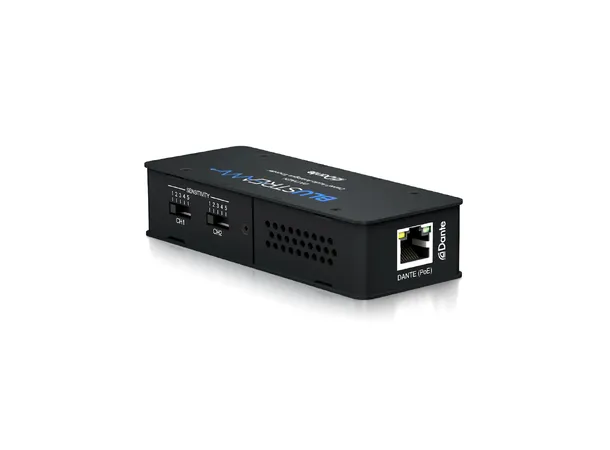

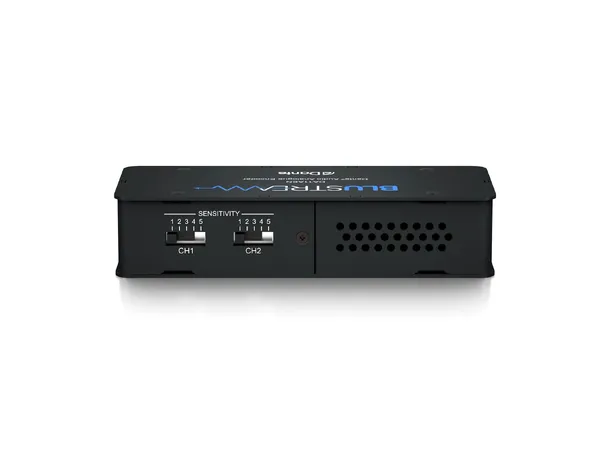

Independent input sensitivity control per channel: +24dBu to -10dBV
Supports AES67 RTP audio transport
Features Class 1 802.3af PoE for powering of product from any PoE switch
Dante® is a registered trademark of Audinate Pty Ltd
Specifications

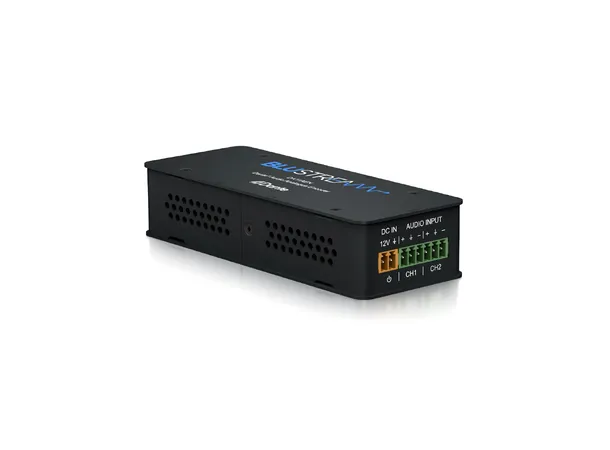

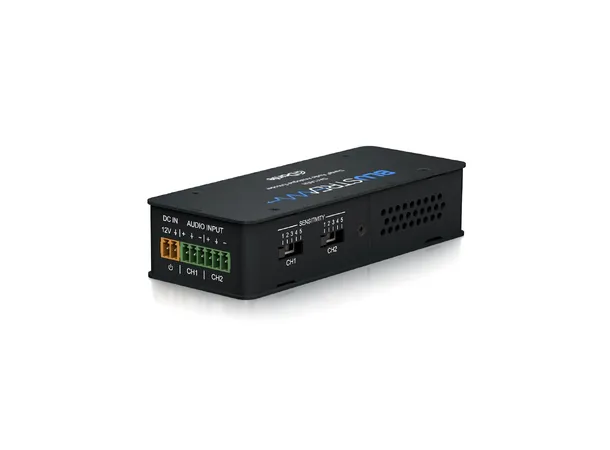

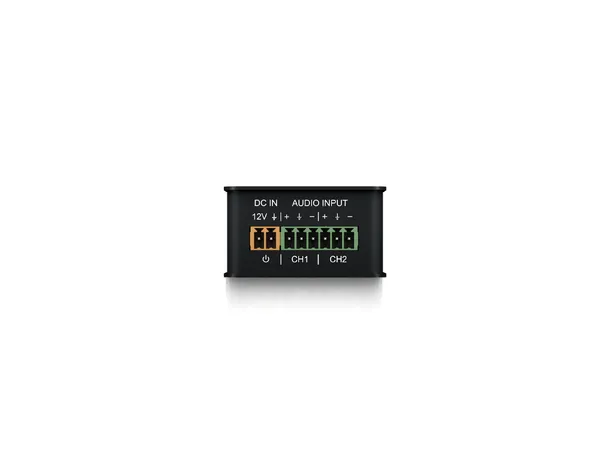

Audio Input Connectors: 6-pin Phoenix connector (2ch balanced / un-balanced analogue audio)

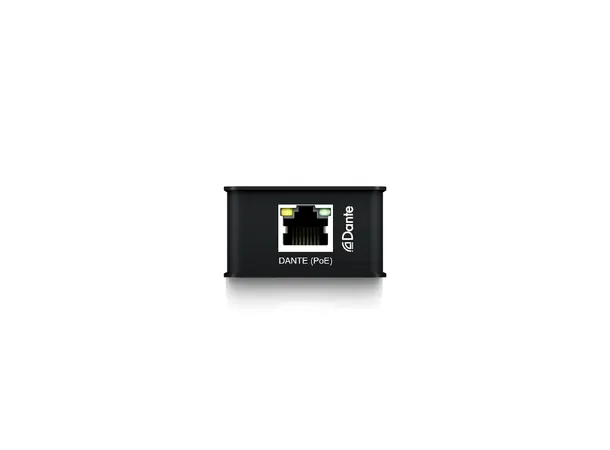

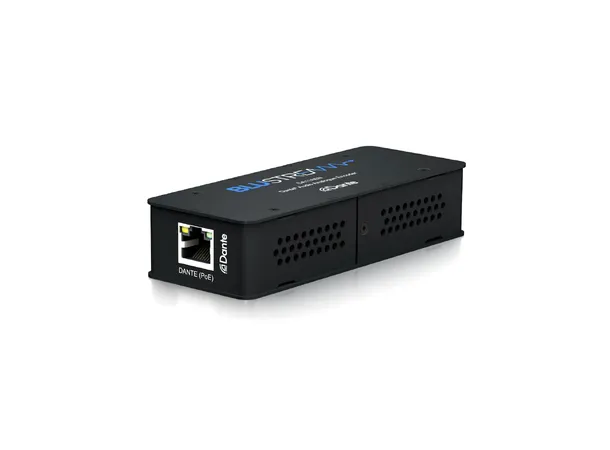

Audio Output Connectors: 1 x RJ45, female (100Mbps Dante® network)
Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
Shipping Weight: 0.2kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: Class 1 IEEE 802.3af POE PD
