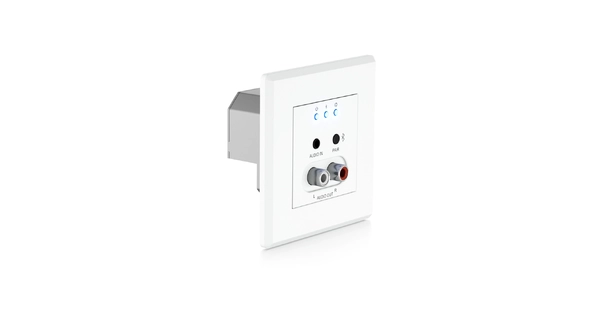

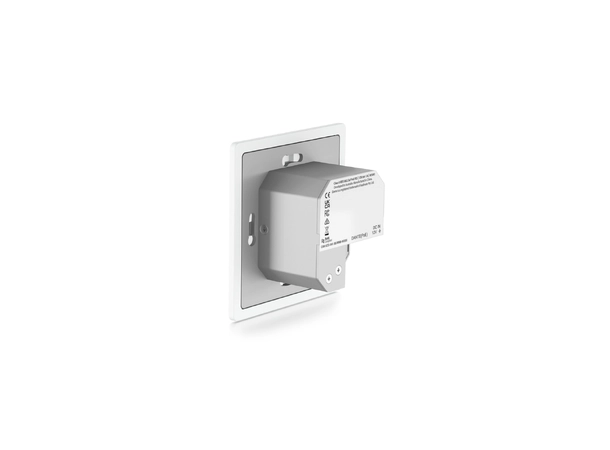

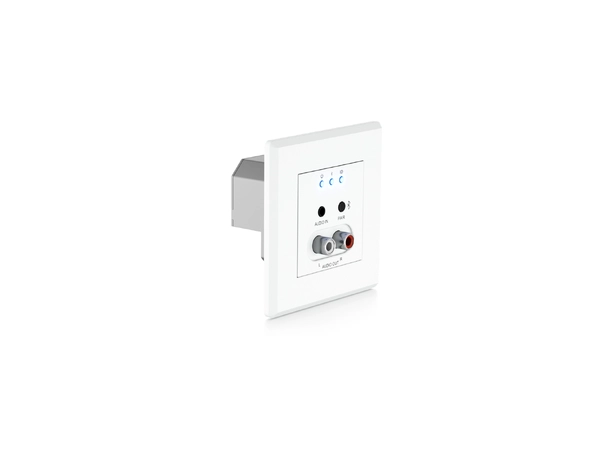

DA11ABL-WP-EU-V2
Bluetooth & Analogue Audio Dante® Wall Plate
The DA11ABL-WP-EU-V2 is a multi-input/output wall plate to convert Bluetooth and analogue audio
within a digital Dante® networked audio system. The DA11ABL-WP-EU-V2 converts 2 input channels of
Bluetooth or unbalanced audio to Dante® digital audio, and 2 channels of Dante® audio to 2 x output
channels of unbalanced audio.
This plug & play device is powered using PoE (Power over Ethernet), or via 12V power supply, offers
support for AES67 RTP audio transport, and features a magnetic faceplate design for both UK & EU
backbox compatibility. The DA11ABL-WP-EU-V2 is the ideal BYOD interface for streaming audio wirelessly
from any Bluetooth device to a Dante® audio system.
Key Features
- Dante® network wall plate interface for Bluetooth and analogue L/R audio inputs, and L/R audio outputs
- Converts 2ch Bluetooth or unbalanced audio sources to Dante® audio
- Converts 2x Dante® audio channels to unbalanced audio outputs
- Adjustable input sensitivity from +24dBu to -28dBV and output gain from +20dBu to -28 dBV via web GUI or API
- Dante® Audio supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
- Configurable Dante® device latency (2, 3, 4, 5, or 10ms using Dante® Controller)
- Supports AES67 RTP audio transport
- Powered via Class 0 IEEE 802.3af PoE or optional 12V DC adapter
- White magnetic faceplate for UK & EU backbox compatibility
- In-built web GUI for configuration and control
Specifications

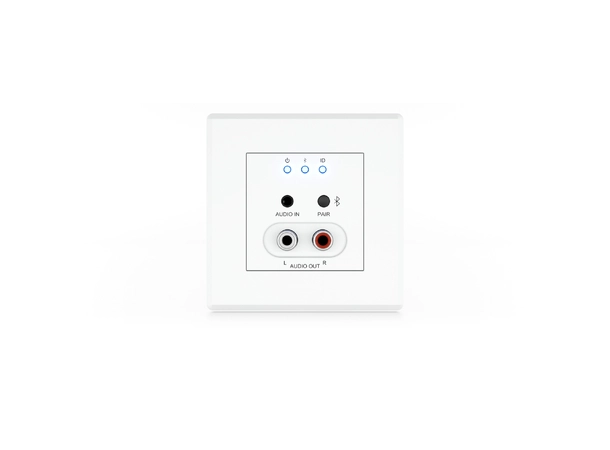

- Audio Input Connectors: 1 x Analogue Left/Right audio (3.5mm stereo jack)
- Audio Output Connectors: 2 x Analogue RCA (Left/Right)

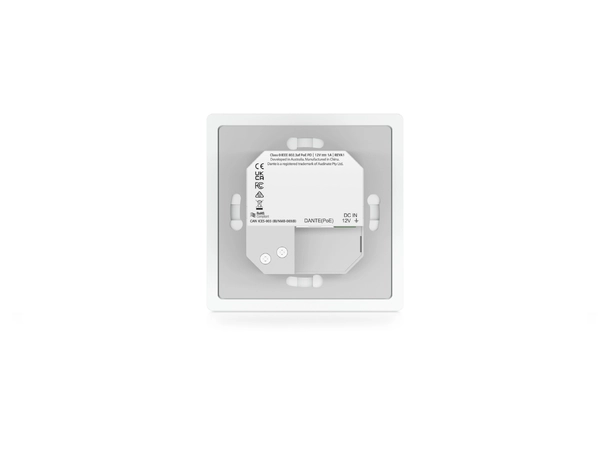

- Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
- Bluetooth: Bluetooth V5.0 - SBC / MP3 / AAC / APT-X / APTX-LL / APTX-HD, 44.1K-48KHz 16/24Bit
- Configuration Switches: 1 x Push button (connect/selection)
- Firmware Upgrade: 1 x Micro-USB UART port
- Module Dimensions: 74mm x 74mm x 50mm (without faceplate)
- Faceplate Dimensions: 85mm x 85mm x 5mm
- Cut Out Dimensions: 52mm x 55mm x 38mm
- Mounting Hole Spacing: UK 60mm CTC, EU 60mm CTC
- Backbox Requirements: UK single gang backbox / EU single gang backbox
- Shipping Weight: 0.3kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: Class 1 IEEE 802.3af PoE PD or 12V/1A DC, 2-Pin Phoenix connector
Included Accessories
- Outdoor Locking Power Cable
- Floor/Mounting Bracket
