Description

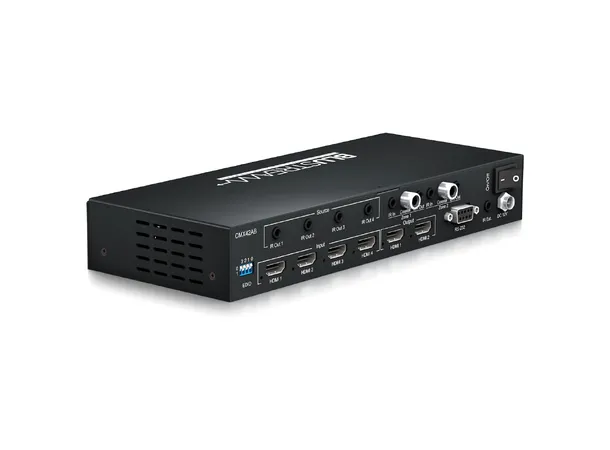

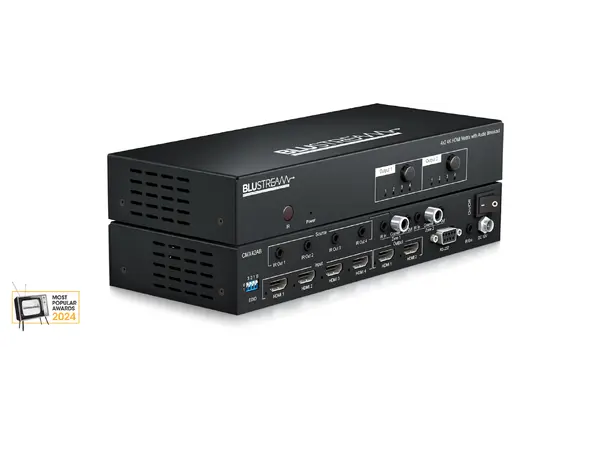

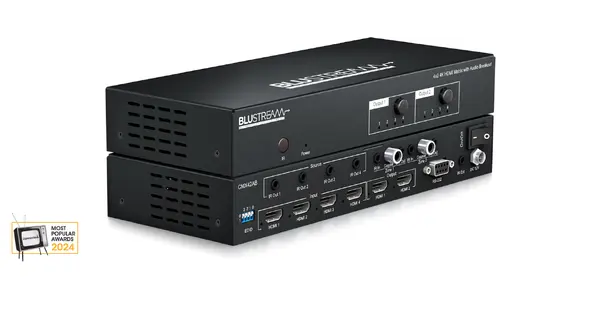

Our Contractor CMX42AB 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.
The CMX42AB supports HDMI 2.0 and HDCP 2.2, allowing distribution of four HDMI sources to two displays. This enables all sources to be viewed as required within a matrix configuration.
The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 4-Way matrix also includes audio breakout and EDID management.
Box Contents
1 x CMX42AB Matrix
1 x 12V/2A DC Power Supply
1 x Remote Control
4 x IR Emitter
3 x IR Receiver
1 x Mounting Kit
1 x Quick Reference Guide
Key Features
Features 4 x HDMI inputs which can be independently routed to 2 x HDMI outputs
Supports HDMI 2.0 18Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently

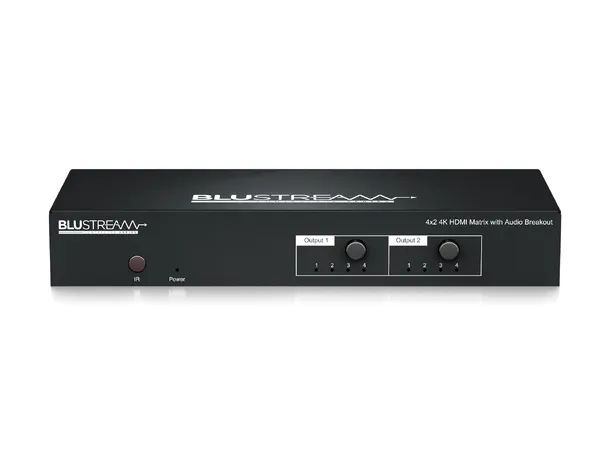

Control via front panel, IR and RS-232
IR routing
Supplied with Blustream 5V IR receivers and emitters
3rd Party drivers available for all major home control brands
Advanced EDID management
HDCP 2.2 compliant
Specifications

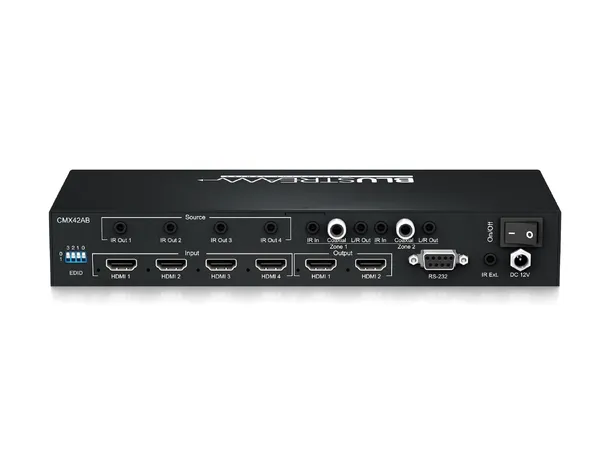

Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking
Video Output Connectors: 2 x HDMI Type A, 19-pin, female, locking
Audio Output Connectors: 2 x RCA (S/PDIF), 2 x Analogue audio L/R (3.5mm stereo jack)
RS-232 Serial Port: DB-9, female
IR Input Ports: 3 x 3.5mm stereo jack
IR Output Ports: 4 x 3.5mm mono jack
Mounting Kit Included
Unit Dimensions (W x D x H): 255mm x 104mm x 40mm (without feet or connections)
Unit Dimensions (W x D x H): 255mm x 115mm x 47mm (with feet and connections)
Shipping Weight: 1.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 12V/2A DC
