Description

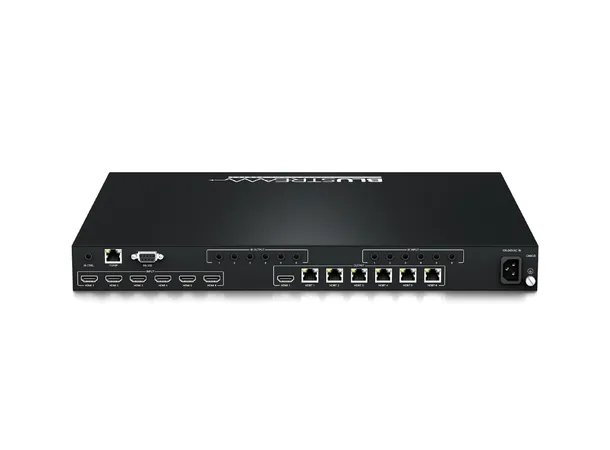

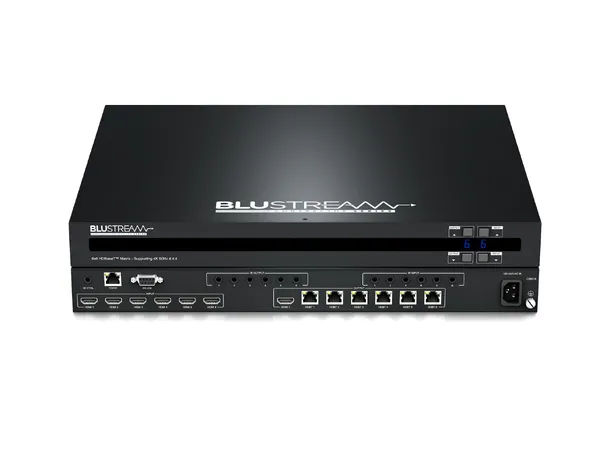

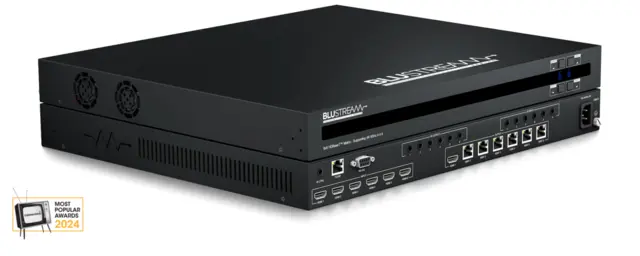

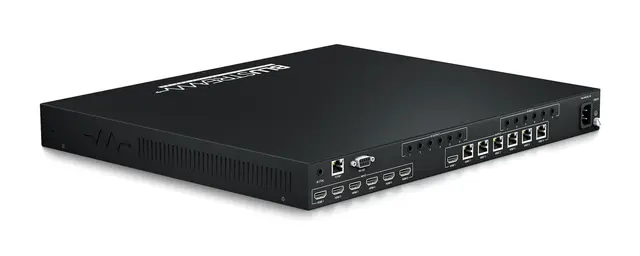

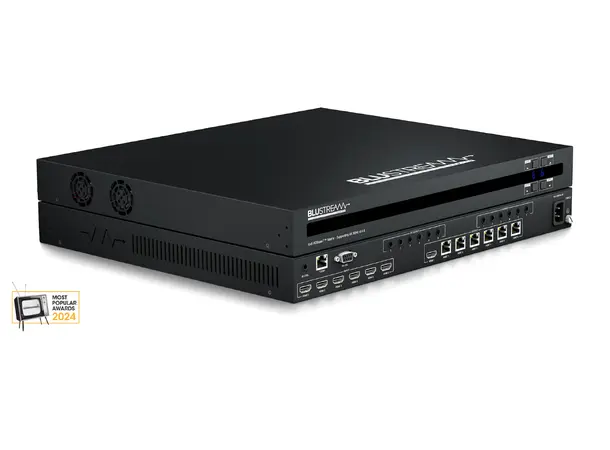

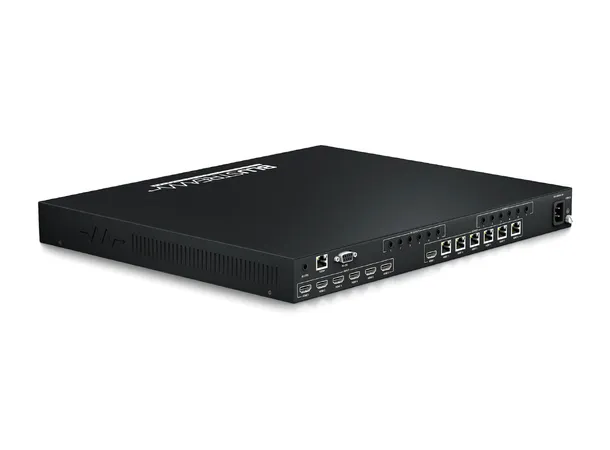

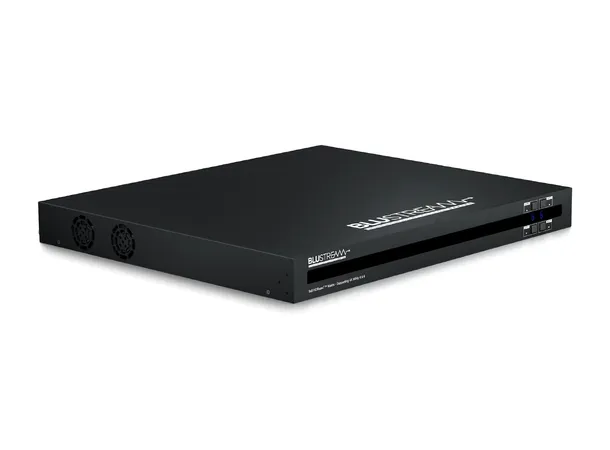

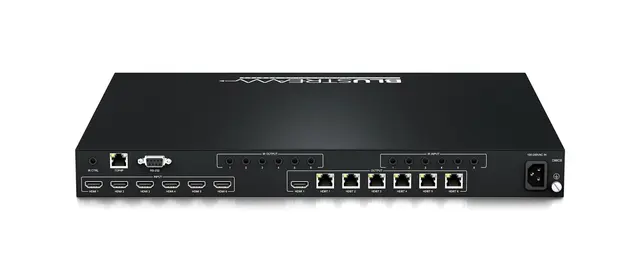

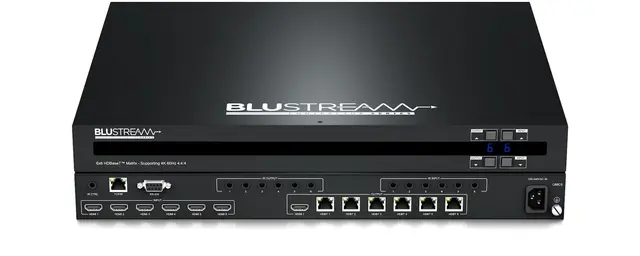

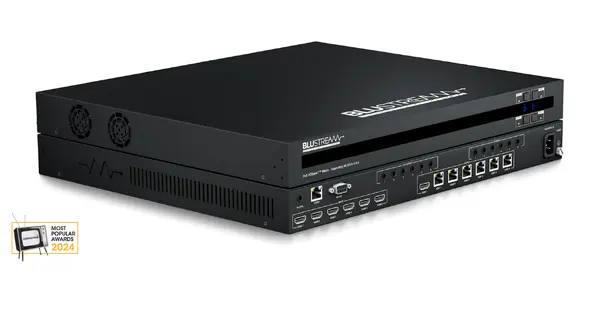

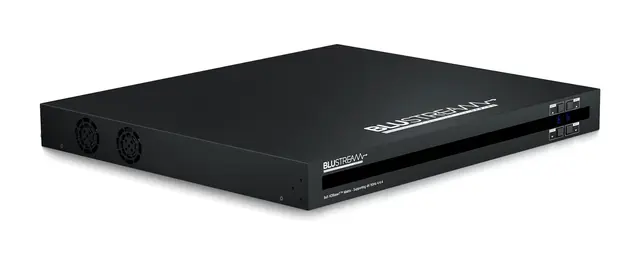

Our Contractor 6x6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.

The C66CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).

The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.

Box Contents

1 x C66CS
1 x Rack Mounting Kit
1 x Remote Control
6 x IR Emitters
7 x IR Receivers
1 x RS-232 Control Cable
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Quick Reference Guide
Power Cable(s)

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*

• Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs

• Output 1 features simultaneous HDMI and HDBaseT™ output

• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

• Supports 4K 60Hz 4:4:4 UHD video up to 40m

• Extends HDMI 1080p video up to 70m

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Web interface module for control and configuration of matrix

• Supports bi-directional IR on all HDBaseT™ outputs

• Control via front panel, IR, RS-232 and TCP/IP

• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)

• Supplied with Blustream IR receivers and emitters

• 3rd party drivers available for major control brands

• 1U Design for 19" rack mount integration - mounting kit included

• Advanced EDID management

• HDCP 2.2 compliant

• Recommended receiver: RX70CS (where 18Gbps CSC support is required)

  *For 18Gbps CSC support use RX70CS receivers

Specifications

• Video Input Connectors: 6 x HDMI Type A, 19-pin, female

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 6 x HDBaseT™ RJ45 connector

• RS-232 Serial Port: 1 x DB9 Serial connector

• TCP/IP Control: 1 x RJ45, female

• IR Input Ports: 7 x 3.5mm stereo jack

• IR Output Ports: 6 x 3.5mm mono jack

• Rack Mountable: 1U rack height, rack ears included

• Case Dimensions (without feet & connections) (W x D x H): 437mm x 377mm x 44mm

• Case Dimensions (with feet & connections) (W x D x H): 437mm x 384mm x 53mm

• Shipping Weight: 6.25kg

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

• Power Supply: Internal 100-240V AC
