Description

Our ADC11AU is designed to convert left / right analogue stereo audio into either coaxial or optical digital.

Both digital outputs are simultaneous so audio can be distributed to multiple locations.

The ADC11AU converts to 16-bit 48kHz digital audio for enhanced sound reproduction.

Box Contents

1 x ADC11AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual

Key Features

• ADC (Analogue to Digital Audio Converter) converts analogue left / right stereo audio input to both S/PDIF optical and coaxial digital PCM outputs

• Both optical digital and coaxial digital output simultaneously

• Converts to 16-bit 48kHz digital audio

• Plug and play solution

Specifications

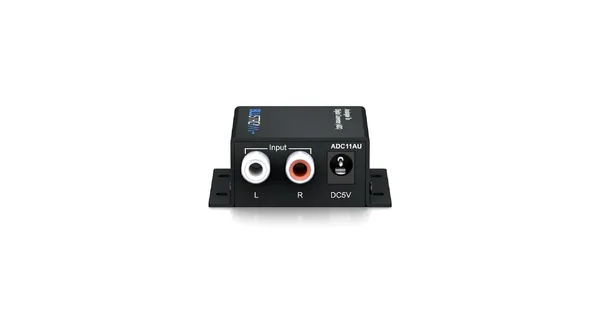

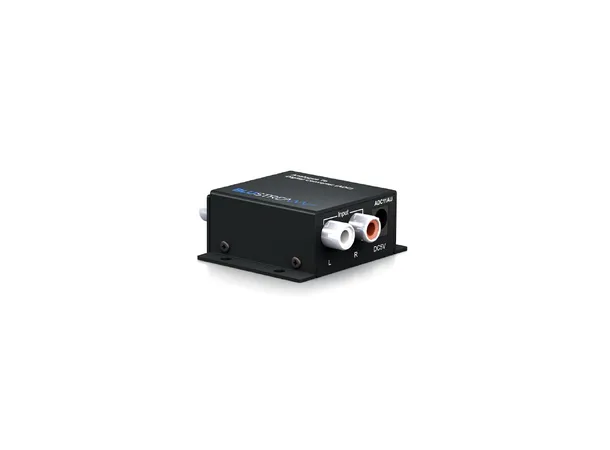

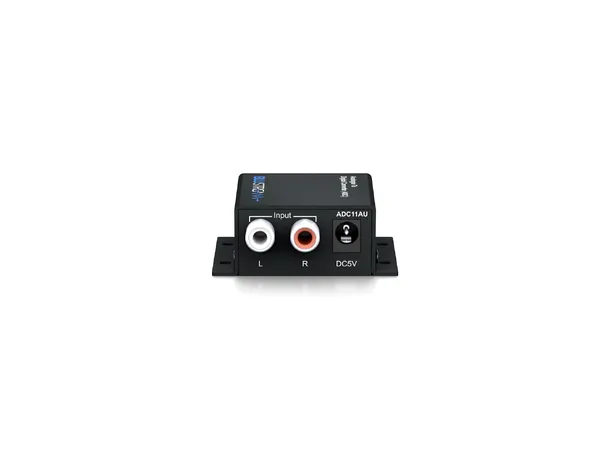

• Audio Input Connectors: 2 x Analogue stereo left / right (RCA)

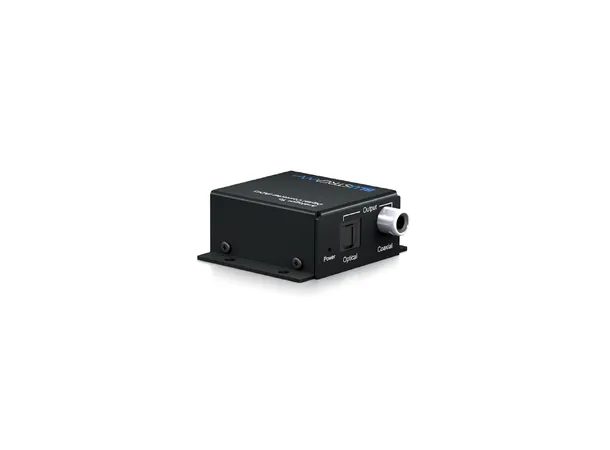

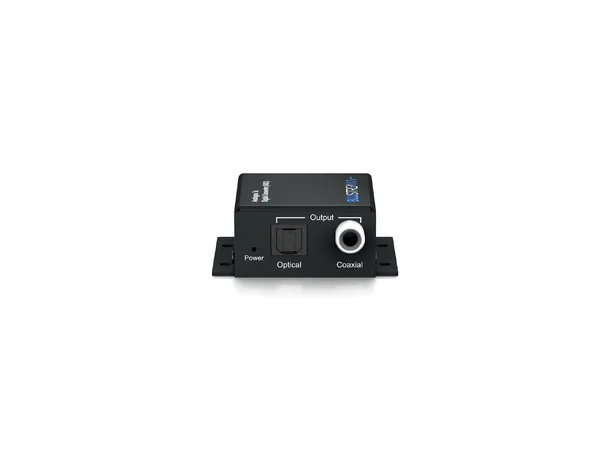

• Audio Output Connectors: 1 x Optical (SPDIF) & 1 x RCA (SPDIF)

• Product Dimensions (W x D x H): 65 x 55 x 25mm (with connections)

• Product Dimensions (W x D x H): 55 x 55 x 25mm (without connections)

• Product Weight: 0.1kg (excluding accessories)

• Carton / Box Dimensions (W x D x H): 165 x 110 x 90mm

• Shipping Weight: 0.3kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 5V/1A DC, barrel type connector

• Mounting Kit Included
