Description

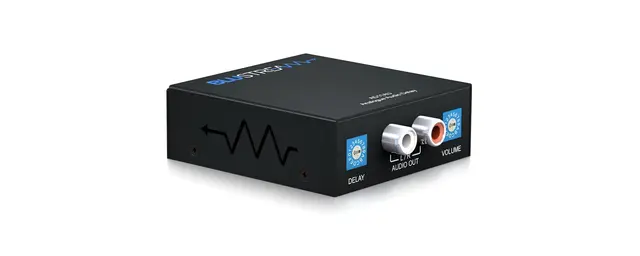

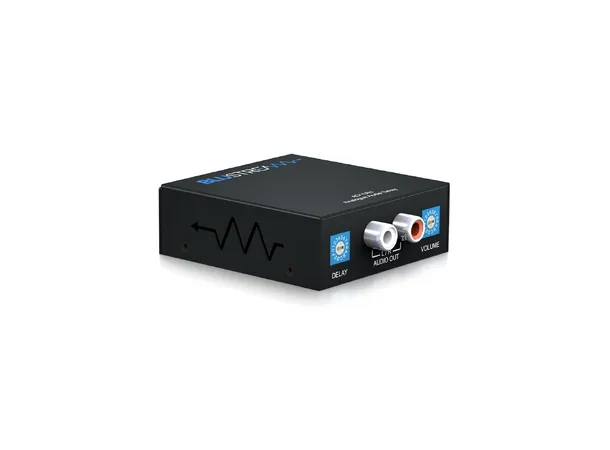

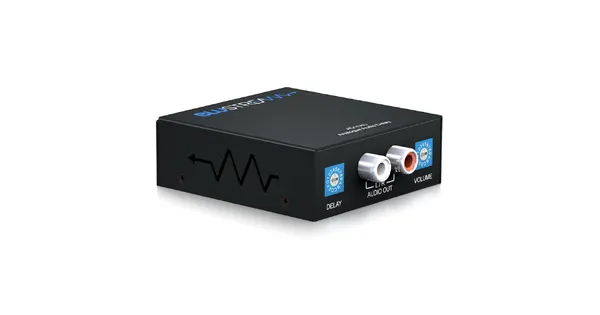

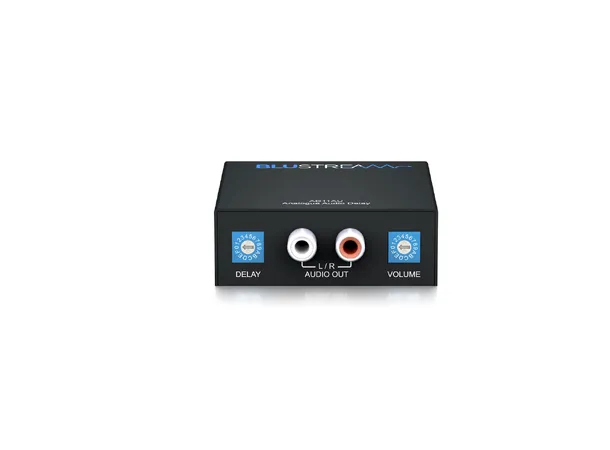

Our AD11AU has been designed to help correct audio delays incurred when separating audio and video signals in an AV system.

The AD11AU can add a delay of up to 1 second selectable in 15 increments and has line-level volume adjustment of -75dB to 0dB.

Box Contents

1 x AD11AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x Quick Reference Guide

Key Features

• In-line 2ch analogue audio delay with line-level volume control

• Supports 48KHz / 24 bit sample rates

• Selectable audio delay from 50-1,000ms

  - 0 - 500ms in steps of 50ms

  - 500 - 1,000ms in steps of 100ms

• Adjustable line level volume control from -75dB to 0dB

Specifications

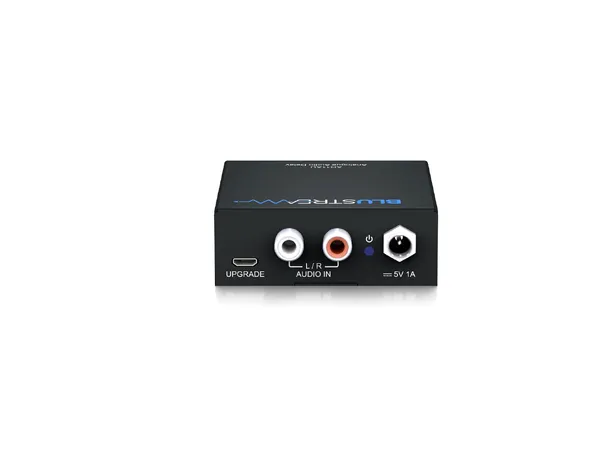

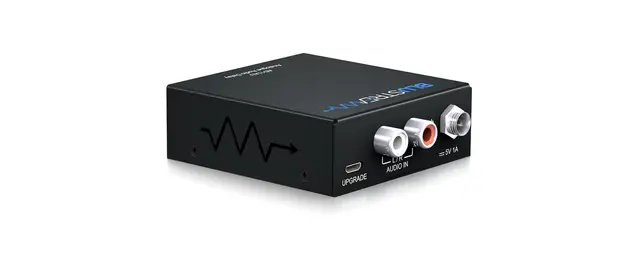

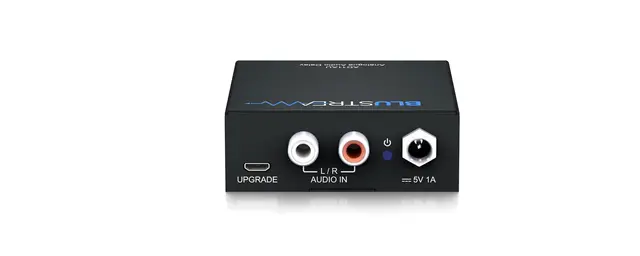

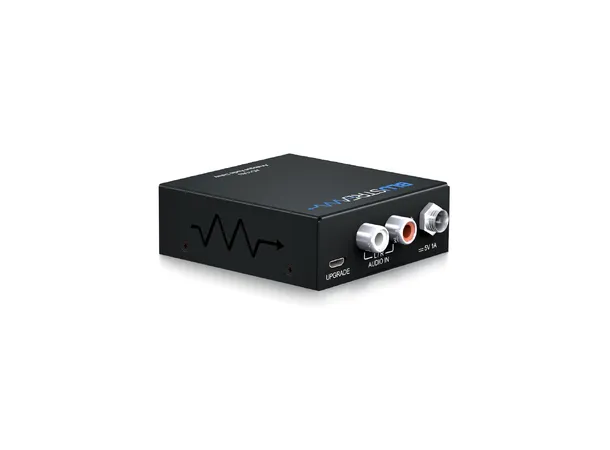

• Audio Input Connectors: 2 x RCA analogue left/right

• Audio Output Connectors: 2 x RCA analogue left/right

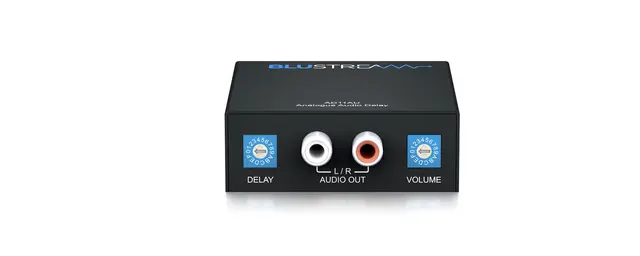

• Audio Delay: Rotation switch

• Volume Control: Rotation switch

• Casing Dimensions (W x H x D): 70mm x 25mm x 73mm

• Shipping Weight: 0.4kg

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

• Power Supply: 5V/1A DC
