PC415X

All-in-One Power Distribution and DMX Control Hub

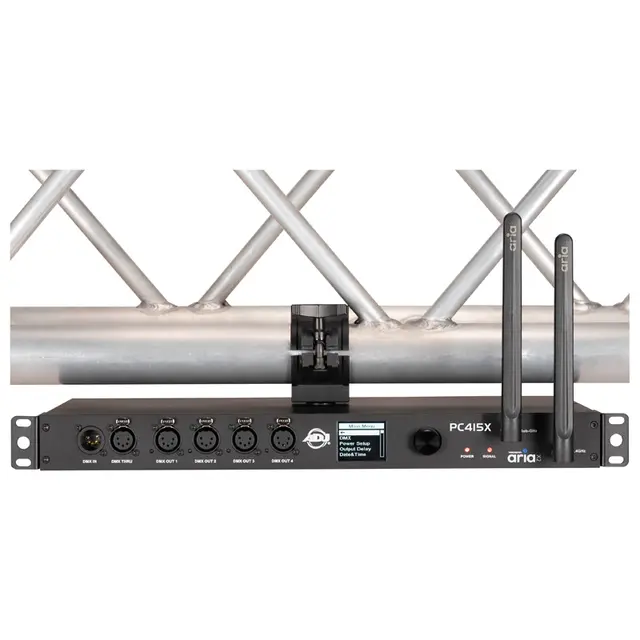

The PC415X is an innovative, all-in-one solution for lighting professionals, venues, and production teams seeking a reliable, efficient, and versatile power distribution and DMX control hub. This state-of-the-art device seamlessly integrates three essential features into one compact, rack-mountable unit: a 4-output power distribution center, an advanced Aria X2 wireless DMX transceiver, and a 4-output DMX/RDM splitter. This powerful combination provides users with an unprecedented level of control and flexibility, making it an invaluable asset for live events, stage productions, touring, and fixed installations.

Key Features

• Multi-functional Design: Combines 4 power outputs, an Aria X2 transceiver, and a DMX/RDM splitter
• Flexible DMX Channel Modes: Operates in 1, 2, or 4 DMX channel modes

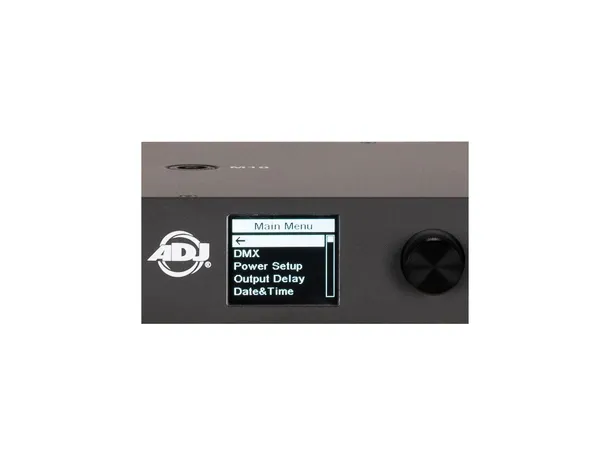

• User-Friendly Control: Push button and encoder wheel with OLED control menu display
• Event Scheduler: Internal On/Off scheduler for automated power and DMX output control
• Single DMX Universe: Transmitter for precise control over lighting configurations
• Multi-Protocol Support: Includes Sub-GHz, 2.4 GHz WiFi, Bluetooth, and Aria X2 Mesh Protocol
• Future-Ready: Configuration via front panel and app (app support coming soon)

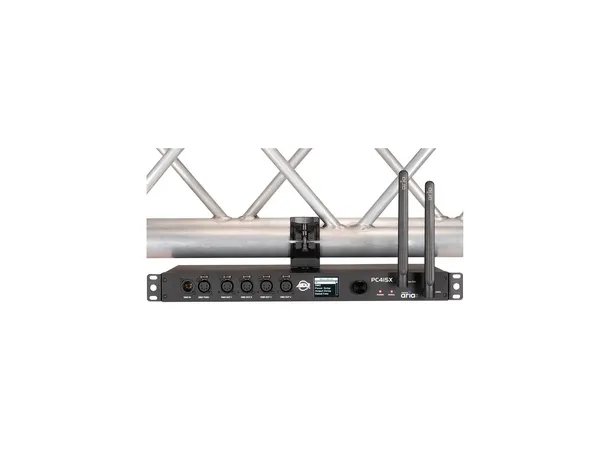

• Mounting Flexibility: Rack-mountable and truss-mountable options

Supported Protocols

• DMX/RDM: Designed for DMX lighting control, with future RDM support
• Proprietary Protocols: Supports Aria X2 Mesh Protocol, 802.15.4 communication, and Bluetooth 5.2

RF Characteristics

• Frequency Range: 2404-2480 MHz, EU (863-870 MHz), US (902-928 MHz)
• Enhanced Reliability: CSMA and planned adaptive frequency hopping
• Over-the-Air Updates: OTA updates ensure future compatibility

Standards & Compliance

• Safety: EN IEC 62368-1 and BS EN standards
• Health & EMC: EN IEC 62311:2020 and ETSI EMC standards

Connectors

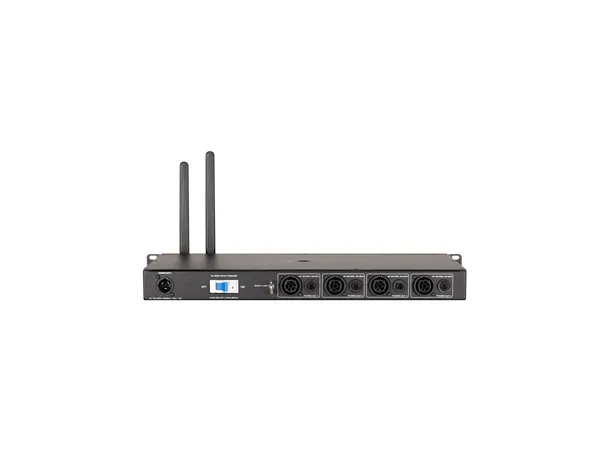

• DMX and Power: 1 DMX input, 4 DMX outputs, 4 IP65 locking power outputs (15A resettable breakers)
• Antenna Compatibility: Dual 5G JT SMA antennas

Power Requirements

• Power Input: AC100-240V 50/60Hz, 16A main power switch
• Low Power Consumption: Efficient operation with CR2032 lithium battery for backup
• Robust Design: IP20 metal enclosure with digital screen and safety eyelet
• Temperature Tolerant: Operates in ambient temperatures up to 45°C, humidity below 75%

Dimensions & Weight

• Length: 482mm
• Width: 249.17mm
• Height: 43.80mm
• Weight: 3.36 kg

Approvals & Included Accessories

• Approvals: IP20-rated for indoor use

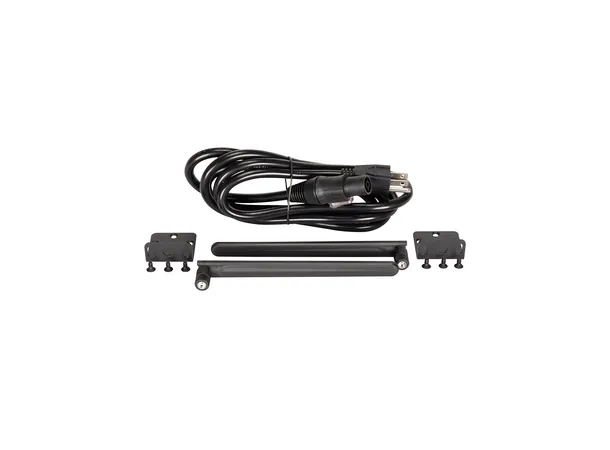

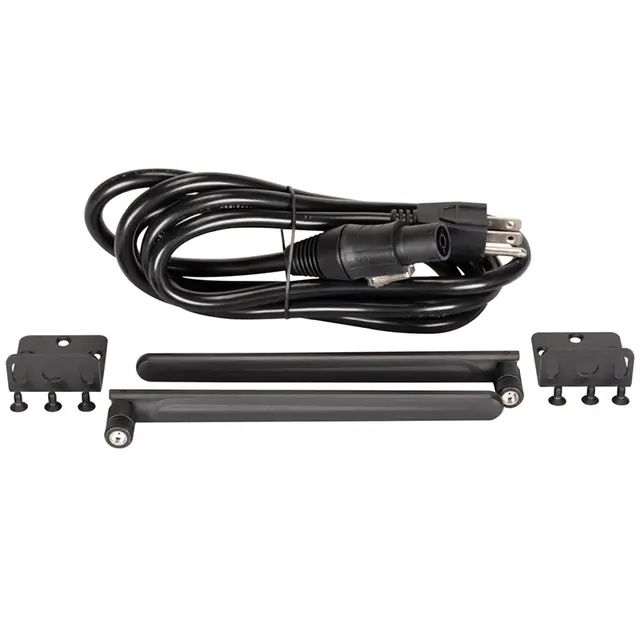

• Accessories: Includes rack ears for a 19-inch rack mount, two Aria X2 antennas, and one IP65 locking power cable
