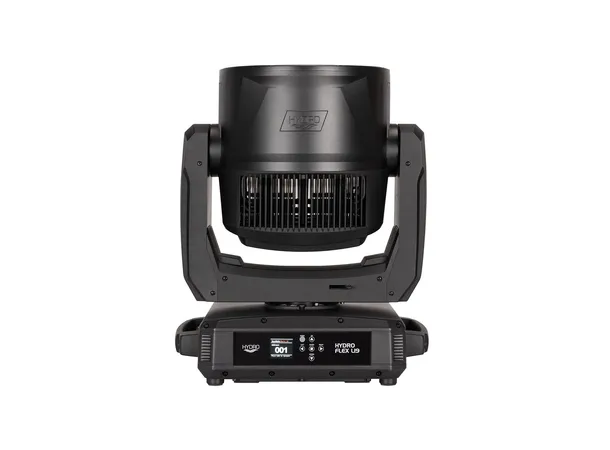

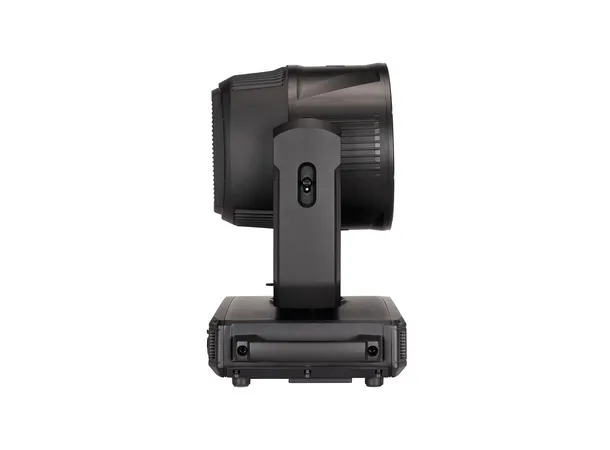

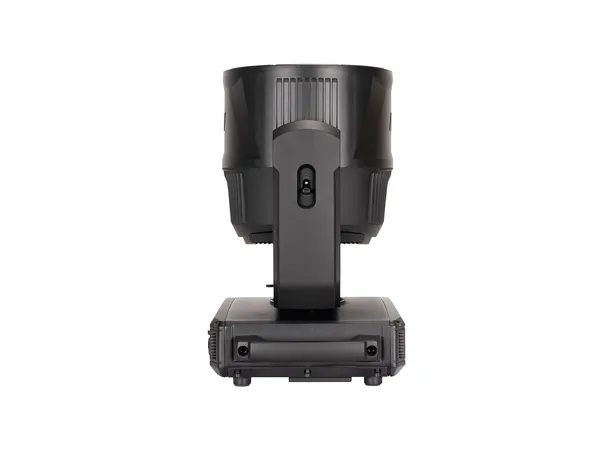

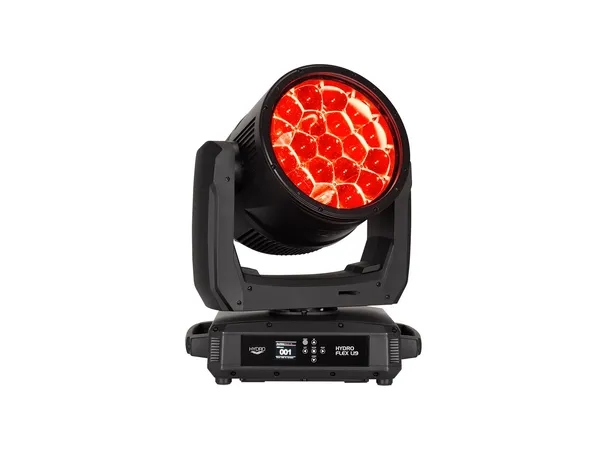

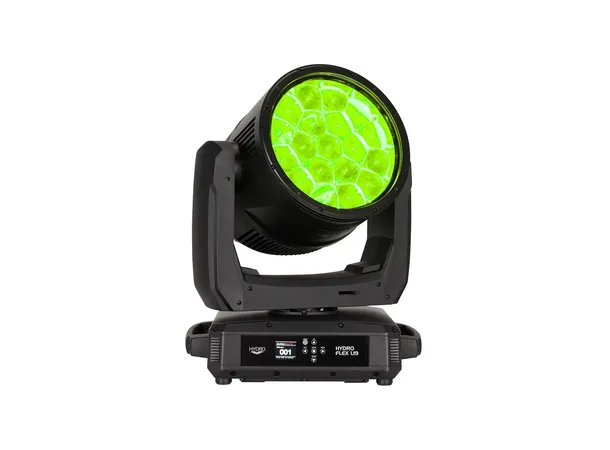

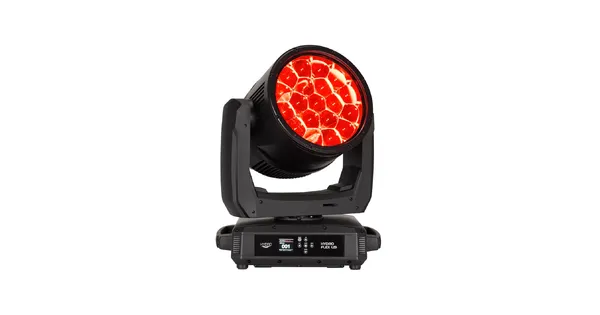

Hydro Flex L19

Advanced Lighting Solution for Professionals

Powered by nineteen 60W RGBL LEDs, the Hydro Flex L19 offers an extensive range of features designed for modern lighting professionals. These include Individual Pixel Control with built-in Pixel Effect Programs, Virtual CMY DMX Control Modes, Linear White Color Temperature Control with presets, and Virtual Foreground and Background Color Wheel Control. Built for touring, rental, and event production applications, this powerful fixture combines exceptional brightness with a versatile feature set, ensuring optimal performance even in demanding conditions.

With robust IP65-rated construction, the Hydro Flex L19 is suitable for both indoor and outdoor use. Its durable metal housing provides reliable protection against dust, sand, moisture, and liquids, making it a perfect choice for festivals, outdoor events, open-air clubs, and other entertainment venues where dependable wash lighting is essential.

Additionally, the Hydro Flex L19 incorporates the Aria X2 wireless management system for seamless control, alongside DMX512, ArtNet, sACN, and KlingNet compatibility. It features IP65-rated 5-pin DMX In/Out and RJ45 networking ports, all safeguarded by rubber protective covers, ensuring consistent performance in any setting.

Specifications

Source:

• 19 x 60-Watt RGBL LEDs (50,000 hr.)
• CRI: 84.2
• TM30 Rf: 84.7
• TM30 Rg: 99.8
• Color Temperature: 2700K ~ 10,000K
• 54,400 lux / 4.3° beam @ 16' (5m)
• 2,090 lux / 28.3° beam @ 16' (5m)
• Lumens: 17,000 (Zoomed Out, Full On)

Features:

• Moving Light Pixel Wash
• Individual Pixel Control
• Built-In Pixel Effect Programs
• Aria X2 Wireless Management System
• Electronic Strobe / Dimmer
• Motorized Zoom
• Beam Angle: 5° ~ 38°
• Field Angle: 8° ~ 56°
• Color Calibrated Pixels
• Virtual CMY DMX Control Modes
• Selectable LED Refresh Rates (900 Hz ~ 25K Hz)
• Selectable Dim Modes and Curves

Colors:

• 19x RGBL LEDs (Red, Green, Blue, and Lime)
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros

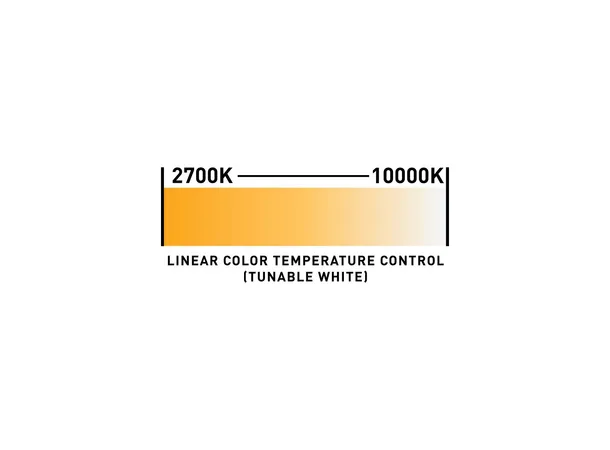

• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700K, 3,000K, 3,200K, 4,000K, 4,500K, 5,000K, 5,600K, 6,500K, 8,000K, and 10,000K

Control:

• 6 DMX Modes (22, 31, 40, 104, Standard CMY 31, Extended CMY 34)
• Color LCD display with 6-button function menu
• Control: DMX512, ArtNet, sACN, KlingNet, and Aria X2 Wireless Management System
• Built-In Effect Pixel Programs with Speed and Fade Control
• RDM (Remote Device Management) compliant

Pan/Tilt:

• Pan: 540/630 degrees
• Tilt: 243 degrees
• 16-Bit Fine Pan & Tilt
• Pan & Tilt Locks

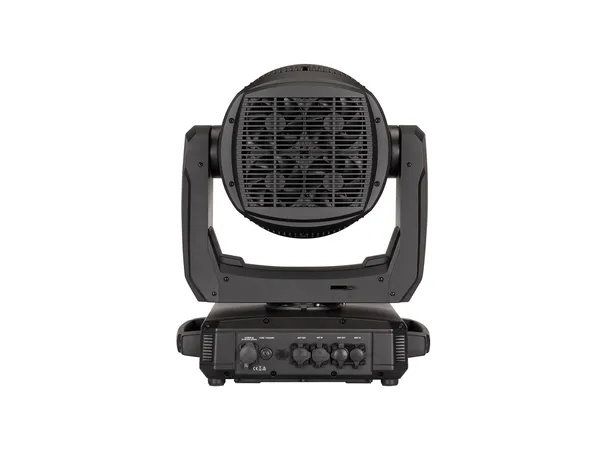

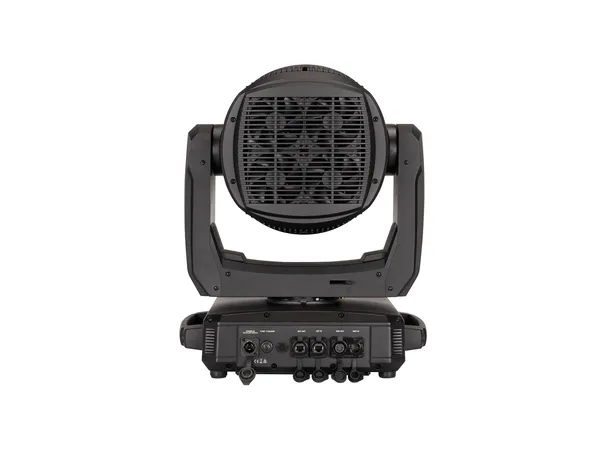

Connections:

• DMX Connections: IP65-rated Locking In/Out XLR Sockets
• IP65-rated Locking In/Out RJ45 Network Sockets
• Power Connections: IP65-rated Locking Input Power Socket

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 1350W (6.38Amps) @ 220V

Dimensions & Weight:

• Dimensions (LxWxH): 318 x 433 x 517mm
• Weight: 27.6kg

What's Included:

• 2 x 180mm Omega Brackets
• 1 x 1.83M IP65-rated locking power cable
• Safety Cable

Approvals / Rating:

• IP65
