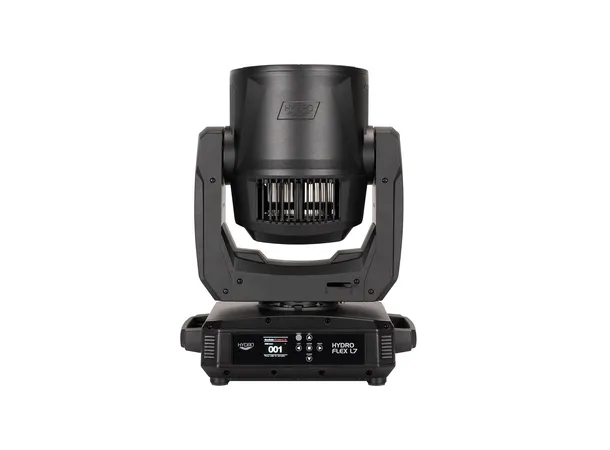

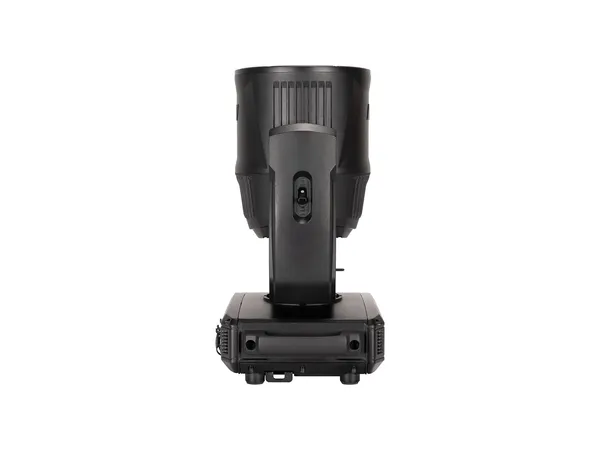

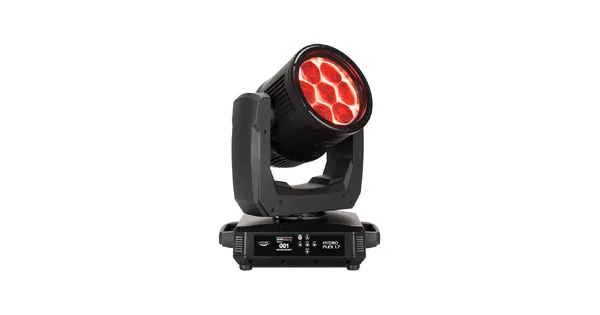

Hydro Flex L7

Versatile Lighting Fixture for Indoor and Outdoor Use

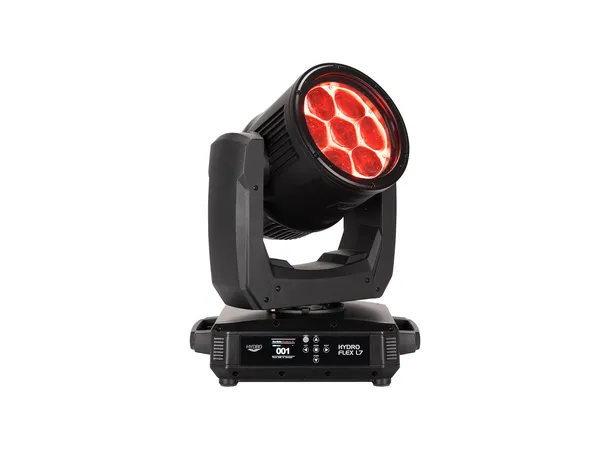

The Hydro Flex L7, powered by seven 60W RGBL LEDs, delivers a versatile suite of features tailored to modern lighting professionals. Highlights include Individual Pixel Control with integrated Pixel Effect Programs, Virtual CMY DMX Control Modes, Linear White Color Temperature Control with presets, and Virtual Foreground and Background Color Wheel Control. Designed for touring, rental, and event production, this compact yet powerful fixture offers exceptional brightness and versatility, ensuring reliable performance even in challenging environments.

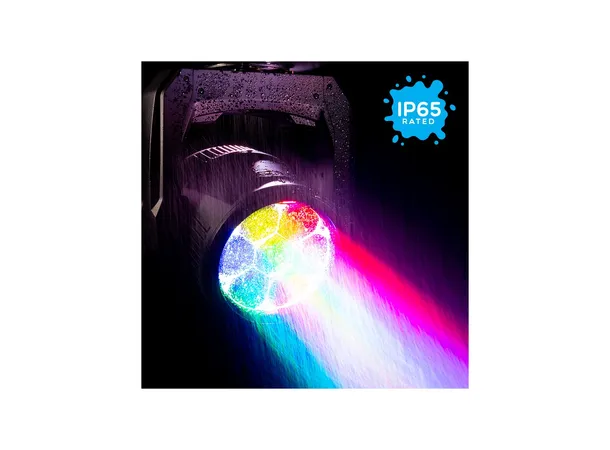

With its rugged IP65-rated construction, the Hydro Flex L7 is ideal for both indoor and outdoor use. Its durable metal housing protects against dust, sand, moisture, and liquids, making it perfect for festivals, outdoor events, open-air clubs, and other venues requiring dependable wash lighting.

The Hydro Flex L7 also features the Aria X2 wireless management system for streamlined control, along with DMX512, ArtNet, sACN, and KlingNet compatibility. Its IP65-rated 5-pin DMX In/Out and RJ45 networking ports are shielded by protective rubber covers, ensuring consistent operation in any setting.

Specifications

Source:

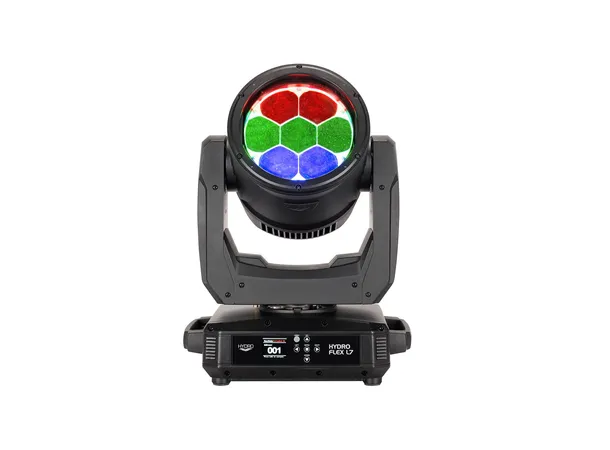

• 7 x 60-Watt RGBL LEDs (50,000 hr.)
• Color Temperature: 2700K ~ 10,000K
• Lumens: 5,600 (Zoomed Out, Full On)
• Beam Angle: 4° ~ 38°
• Field Angle: 6° ~ 54°

Features:

• Moving Light Pixel Wash
• Individual Pixel Control
• Built-In Pixel Effect Programs
• Aria X2 Wireless Management System
• Electronic Strobe / Dimmer
• Motorized Zoom
• Color Calibrated Pixels
• Virtual CMY DMX Control Modes
• Selectable LED Refresh Rates (900 Hz ~ 25K Hz)
• Selectable Dim Modes and Curves

Colors:

• 7x RGBL LEDs (Red, Green, Blue, and Lime)
• Virtual Foreground and Background Color Wheel Control

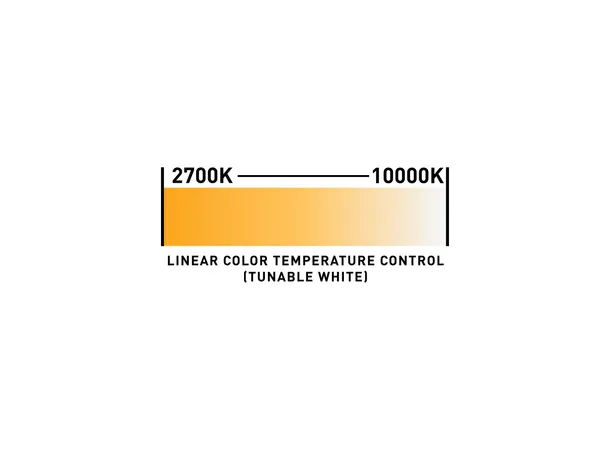

• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700K, 3,000K, 3,200K, 4,000K, 4,500K, 5,000K, 5,600K, 6,500K, 8,000K, and 10,000K

Control:

• 8 DMX Modes - 16/25/34/42/50/26/25(CMY)/28(CMY) Channels
• Color LCD display with 6-button function menu
• Control: DMX512, ArtNet, sACN, KlingNet, and Aria X2 Wireless Management System
• Built-In Effect Pixel Programs with Speed and Fade Control
• RDM (Remote Device Management) compliant

Pan/Tilt:

• Pan: 540/630 degrees
• Tilt: 243 degrees
• 16-Bit Fine Pan & Tilt
• Pan & Tilt Locks

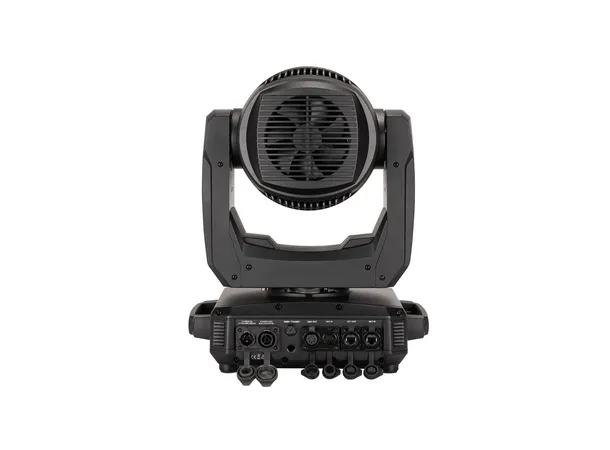

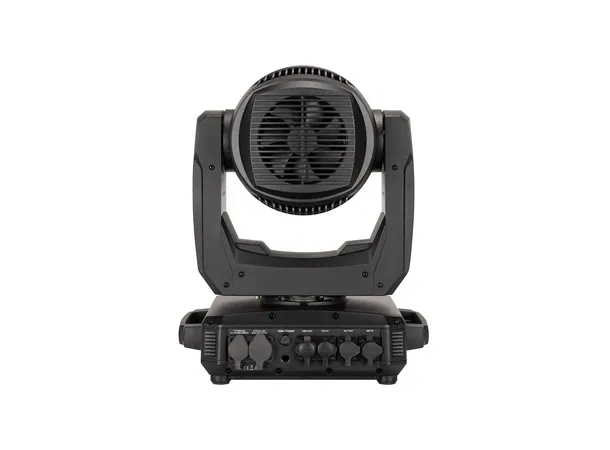

Connections:

• DMX Connections: IP65-rated Locking In/Out XLR Sockets
• IP65-rated Locking In/Out RJ45 Network Sockets
• Power Connections: IP65-rated Locking In/Out Power Sockets

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 516W (2.42Amps) @ 220V

Dimensions & Weight:

• Dimensions (LxWxH): 247 x 359 x 463mm
• Weight: 16kg

What's Included:

• 2 x 107mm Omega Brackets
• 1 x 1.83M IP65-rated locking power cable
• Safety Cable

Approvals / Rating:

• IP65
