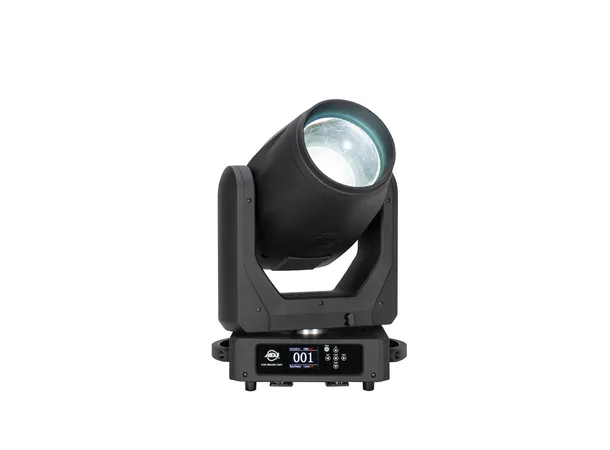

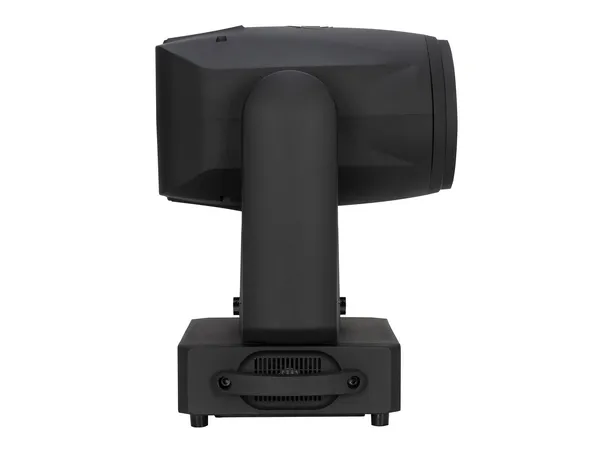

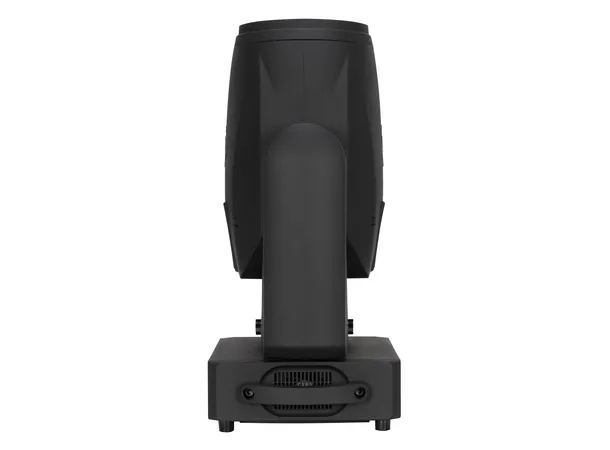

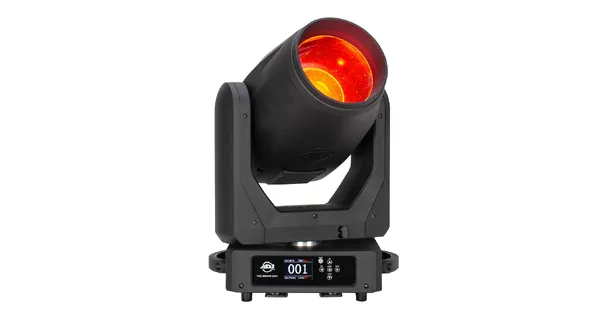

ADJ Lighting Vizi Beam CMY

PRELIMINARY DATA - SPECIFICATIONS SUBJECT TO CHANGE

Elevate your lighting design with the ADJ Lighting Vizi Beam CMY, a cutting-edge moving head beam fixture designed for the modern lighting professional. Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, the Vizi Beam CMY delivers stunning visuals with a precise 2-degree beam angle, as well as 3-Phase motors for high-speed pan/tilt for maximum performance.

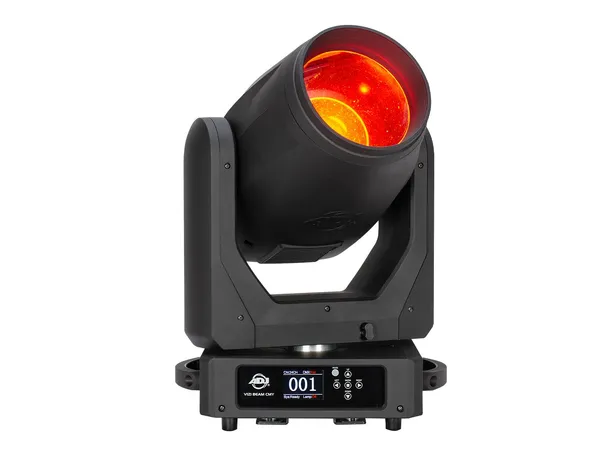

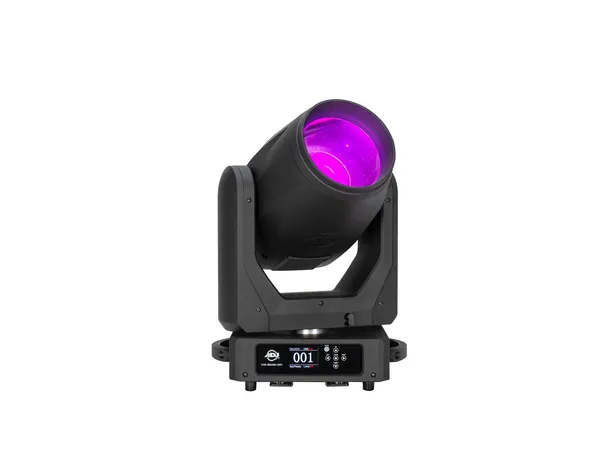

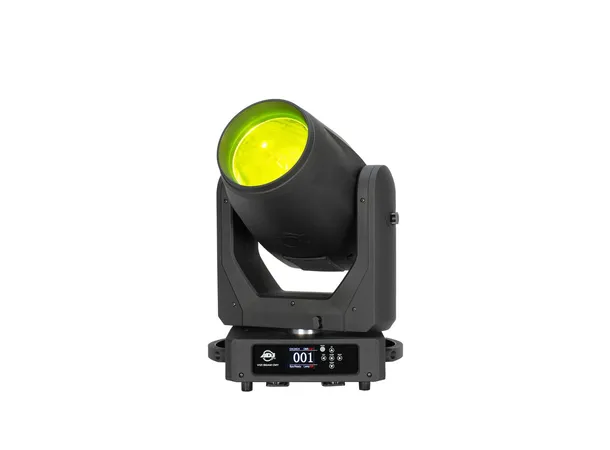

Unlock a spectrum of possibilities with CMY color mixing, a 14-color dichroic wheel (includes CTO (3200K), CTB (9000K) & UV), and a versatile gobo wheel with 17 static gobos (4 GOBOs are beam reducers) and the dynamic GOBO Shake Effect. Enjoy the flexibility of on-board wireless DMX, motorized focus, and 16-bit fine focus for meticulous control.

The fixture boasts advanced features, including 2 rotating prisms (16-Facet circular & 6-Facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Designed for convenience, it features outdoor locking connections for power daisy-chaining and 5-pin DMX connections. With multi-voltage operation and CE approval, the Vizi Beam CMY is a versatile and reliable lighting solution for any event or venue. Enhance your lighting experience with the Vizi Beam CMY – where innovation meets performance.

Specifications

Source:

• OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
• Color Temperature: 7850K (+/- 500K)
• CRI: 86 (+/- 5)

Features:

• CMY Color Mixing
• On-Board Wireless DMX
• Motorized Focus + 16-bit Fine Focus
• 2-degree Beam Angle
• Frost Filter (to create wash effect)
• High Quality Glass Lens
• 2 Rotating Prisms
• 0-100% Smooth Dimming
• Pan/Tilt Locks
• Various Strobe Speeds
• OTA, Wireless, Firmware Updates
• Fan Cooled

Color:

• 14 Dichroic Colors + White (includes CTO (3200K), CTB (9000K) & UV)
• Indexable Color Wheel (for split colors)
• Separate Multi-Color Effect

Gobo:

• 17 Static GOBOs + Open (4 GOBOs are beam reducers)
• GOBO Shake Effect

Prism:

• 2 Rotating Prisms
• 16-Facet circular and 6-facet linear prisms
• Prisms Overlay

Control:

• Protocols: DMX512 & RDM
• Aria X2 Wireless Management / DMX System
• Control Mode: DMX512 & Manual (On-board Controls)
• 2 DMX Channel Modes: 20/24 Channels
• Color LCD Display (with 4-button function menu)
• 0-100% Smooth Dimming
• Various Strobe Speeds

Pan/Tilt:

• Pan: 540 Degrees (plus 16-bit fine pan)
• Tilt: 270 Degrees (plus 16-bit fine tilt)
• 3-Phase, High-Speed, Pan/Tilt Motors

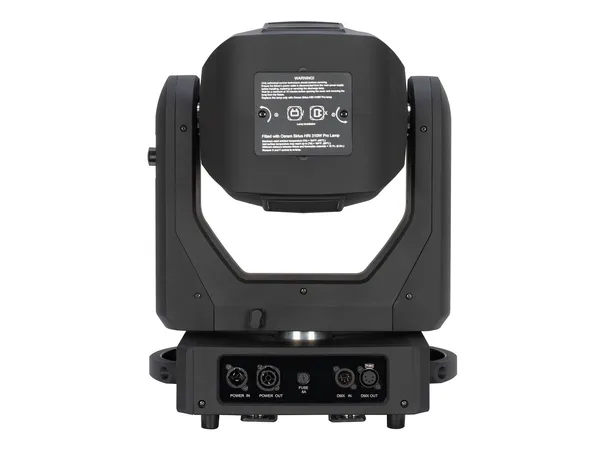

Connections:

• DMX Connections: 5-pin DMX In/Out
• Power Connections: Outdoor Locking In/Out Connections

Electrical:

• Multi-voltage Operation: 100-240V, 50/60Hz
• Max Power Consumption: 390W (@230V)

Dimensions & Weight:

• Dimensions: 248 x 364 x 454.8mm
• Weight: 17.5 kg

What’s Included:

• 2x Omega Brackets (107 Type)
• 1x 2M, Outdoor Locking 14AWG Power Cord
