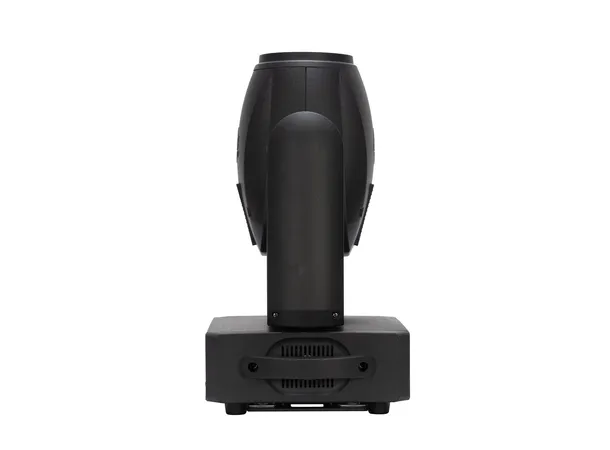

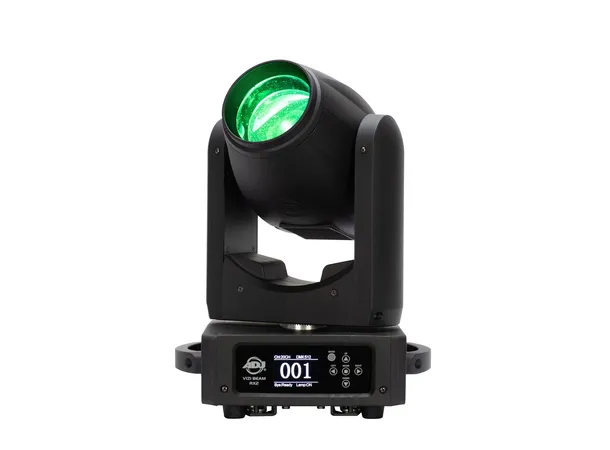

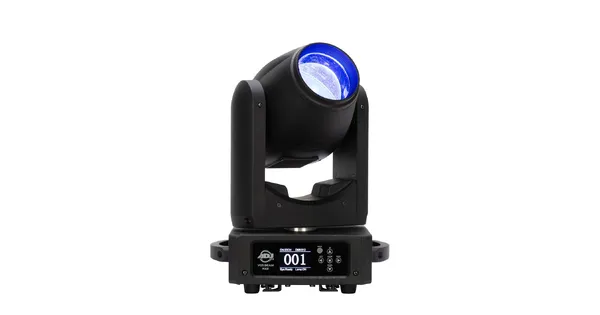

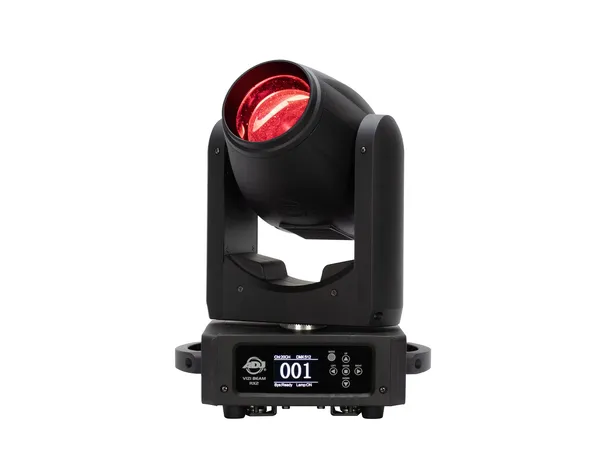

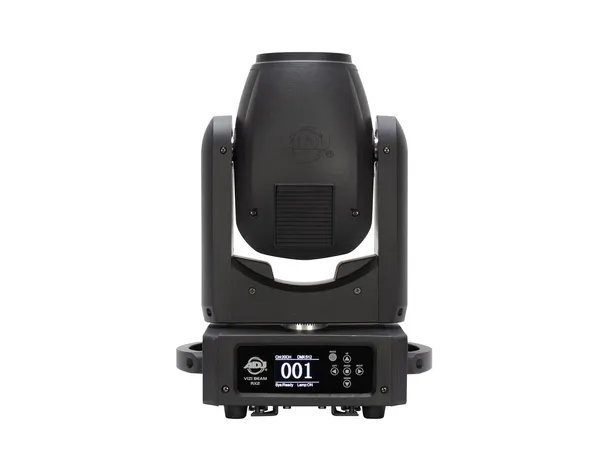

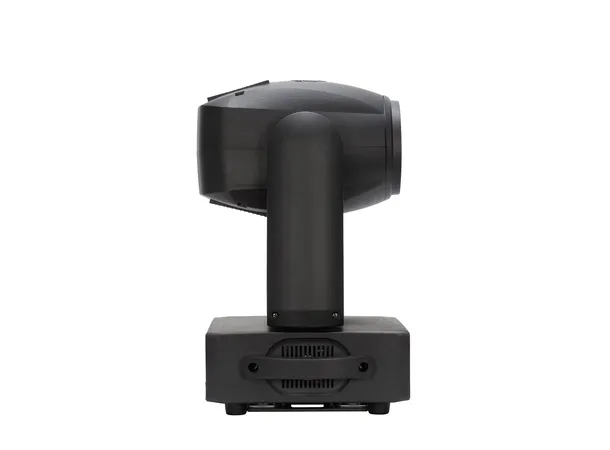

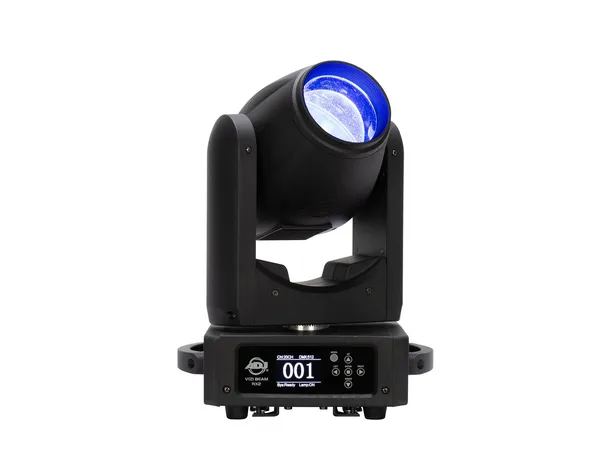

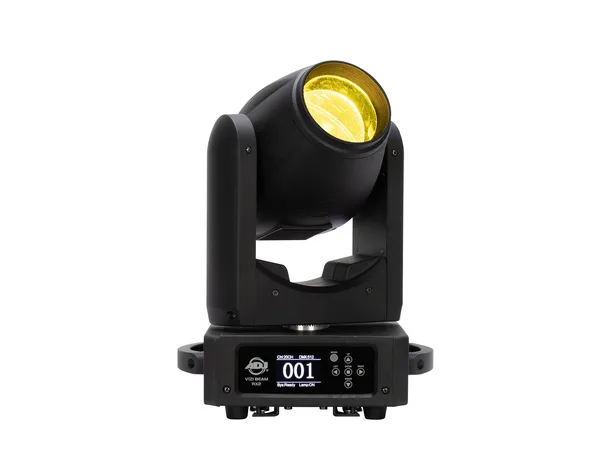

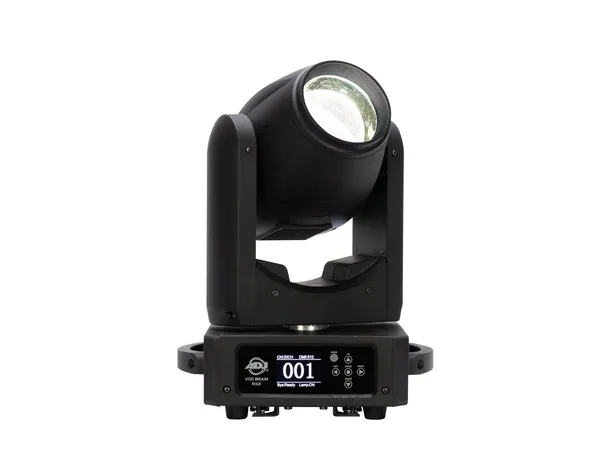

ADJ Lighting Vizi Beam RX2

Compact and Versatile Moving Head Beam Fixture

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as high-speed 3-phase pan/tilt motors for maximum performance.

Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000K) & UV filters, and 15 static GOBOs + open (3 GOBOs are beam reducers).

Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets, and a color LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.

Specifications

Light Source:

• OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
• Color Temperature: 9000K (+/- 300K)

Features:

• On-Board Wireless DMX
• Motorized Focus + 16-Bit Fine Focus
• 2-Degree Beam Angle
• Frost Filter (to create wash effect)
• High Quality Glass Lens
• 2 Rotating Prisms
• 0-100% Smooth Dimming
• Various Strobe Speeds
• OTA Wireless Firmware Updates
• Fan Cooled

Color Wheel:

• 14 Dichroic Colors + White (Includes CTO (3200K), CTB (9000K) & UV)
• Indexable Color Wheel (for Split Colors)

GOBO Wheel:

• 15 Static GOBOs + Open (3 GOBOs are Beam Reducers)
• GOBO Shake Effect

Prism Wheel:

• 2 Rotating Prisms
• 16-Facet Circular and 4-Facet Linear Prisms

Control:

• Protocols: DMX512 & RDM
• Control Mode: DMX512 & Manual (On-board Controls)
• Aria X2 Wireless Management / DMX System
• 2 DMX Channel Modes: 12/16 Channels
• Color LCD Display with 4-Button Function Menu
• 0-100% Smooth Dimming
• Various Strobe Speeds

Pan/Tilt:

• Pan: 540 Degrees (plus 16-bit Fine Pan)
• Tilt: 270 Degrees (plus 16-bit Fine Tilt)
• 3-Phase, High-Speed, Pan/Tilt Motors

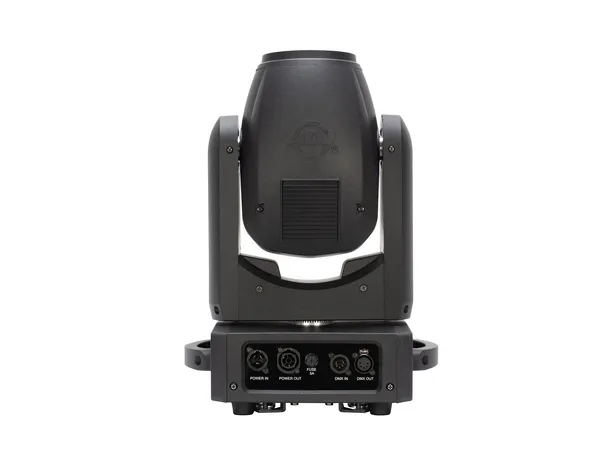

Connections:

• DMX Connections: 5-pin DMX In/Out (Data Link Max: 32 Fixtures)
• Power Connections: Outdoor Locking In/Out Connections to Daisy Chain Power

Electrical:

• Multi-voltage Operation: 100-240V, 50/60Hz
• Max Power Consumption: 157W

Dimensions & Weight:

• Dimensions (LxWxH): 230 x 304 x 416mm
• Weight: 7.5 kg

Approvals / Ratings:

• CE
• cETLus (Pending)

What's Included:

• 2 x Omega Brackets (107 Type)
• 1 x 2M Outdoor Locking 14AWG Power Cord
