Specifications:

Source

• Light Source: 1 WW LED-Engine

• Individual LED wattage : 260W

• 10.000 Lumen (with 26° lens)

• Average LED lifetime : approximately 50,000 hrs.

• Color Temperature: 3200K

• CRI: 97



Optics

• Manual Focus

• Manual Framing Shutters

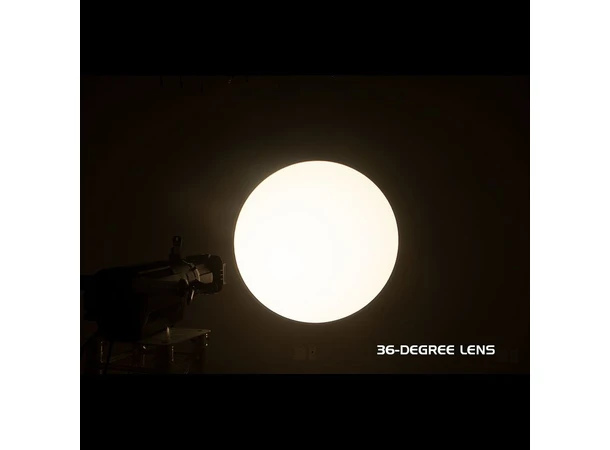

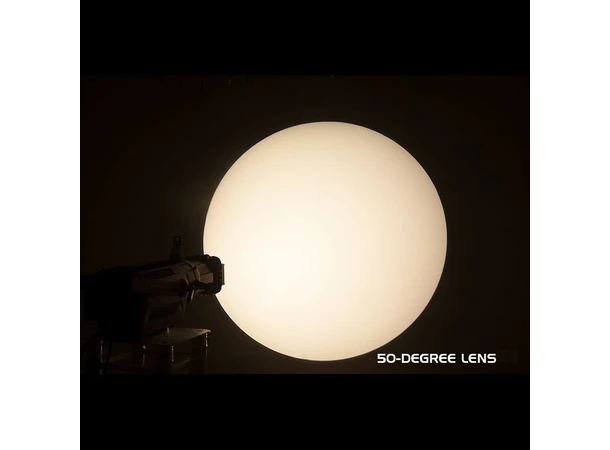

• Optional Fixed Lenses (14°, 19°, 26°, 36° and 50°) available.

• Optional Zoom Lenses (15-30° and 25-50°) available



Control

• 2 operational Modes : Manual WW Dimmer Mode and DMX Control

• 3 DMX Modes: 1, 3 & 4-channel

• RDM compatible

• 16bit Electronic Dimming: 0 - 100%

• 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre and Stage 2)

• Adjustable Dim speed from 0.1 seconds - 10 seconds

• 4 selectable Dim Curves (Linear, Square, Inv. Square, S-Curve)

• Adjustable LED Refresh Rate : 900Hz - 25kHz

• LED pulse and strobe effect

• Quiet Fan Cooling

• 4-button, digital touch display on rear panel



Colors

• Warm White 3200K



Gobos

• Supports B-Size, HT Transparency Gobos



Construction

• Metal Housing

• Gobo Holder included

• Manual Framing Shutters



Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 250W

• Operational temperature: -10 to 45 degrees



Connections

• 5-pin Locking DMX In/Out connections

• IP65 Locking Power In/Out connections



Dimensions & Weight

• Dimensions (LxWxH): 688 x 287 x 450mm

• Weight: 9,1 kg.
