ADJ Focus Beam LED

Powerful 80W LED engine

Varenr: 1237000208
16 347,-eks mva.
20 433,-Ordinær pris
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (19 dager)
BeskrivelseDokumenter
Beskrivelse

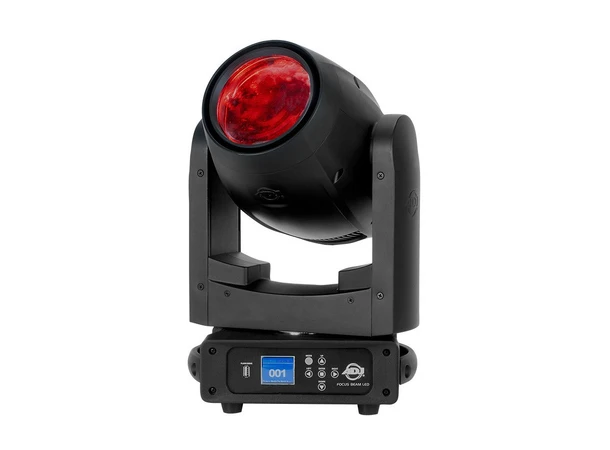

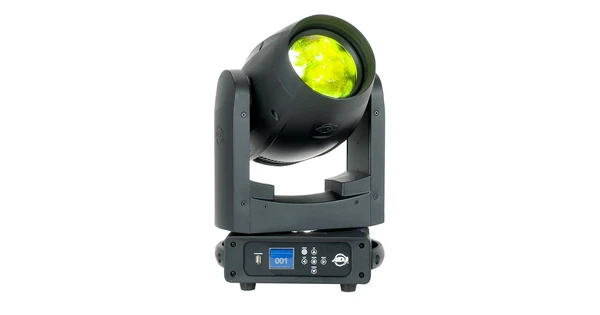

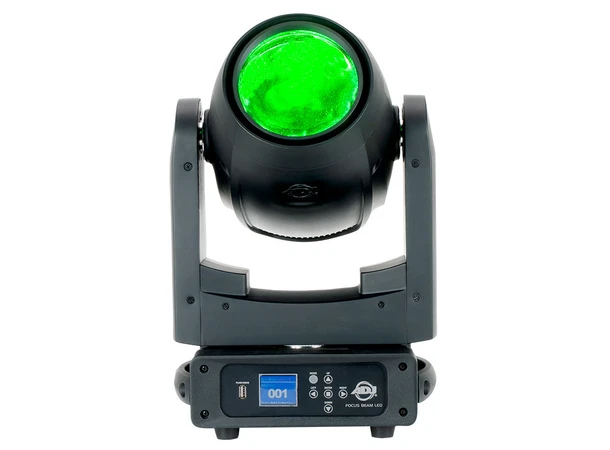

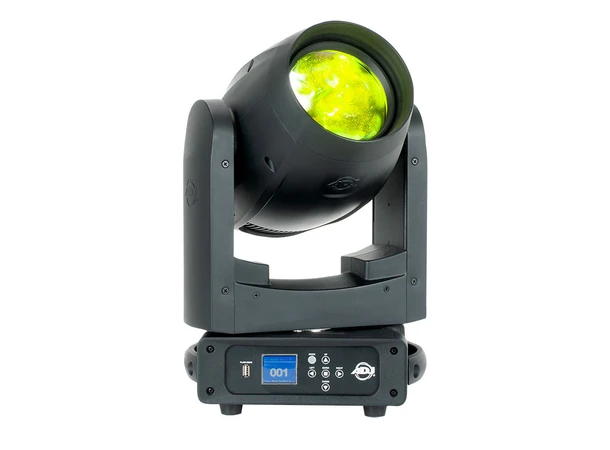

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear, prism layering), and it has a built-in in frost filter for wash effects.

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of diming modes, fine pan and fine tilt options, and adjustable dim curve and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.

The Focus Beam LED offers 13 dichroic colors plus white and has 14 fixed GOBOs plus open and a GOBO shake effect.

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Power In/Out connections to daisy chain power, and 3-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.

Specifications

Source

• Source: Cool White LED Engine

• Individual LED wattage : 80W

• Average lifetime: approximately 50,000 hrs

• Colore Temperature: 7400K

• Lux: 24470lux@10m



Optics

• Beam Angle: 2.5 degrees

• Motorized Focus

• Rotating 6-facet Linear & rotating 8-facet Circular prism with overlay

• Linear Frost



Control

• DMX-512 Protocol

• 2 DMX Channel Modes: 16 & 18 Channels

• RDM compatible (Remote Device management)

• 16bit dimming 0-100%

• 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve

• Adjustable Gamma Brightness : 1.0 / 2.0 / 2.2 / 2.4 / 2.6 or 2.8

• Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation

• Various strobe effects

• 6-button Color display

• 16bit Pan: 540 & 630 degrees

• 16 bit Tilt: 270 degrees

• 3 Fan settings : Auto, High and Low Noise



Colors

• 1 color wheels with 13 dichroic colors + white (includes CTO)



Gobos

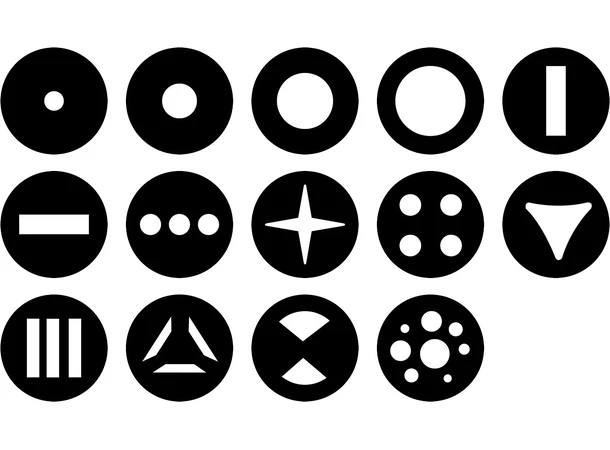

• 1 Gobo wheel with 14 fixed Gobos + open

• Gobo Shake Effect



Construction

• Plastic housing

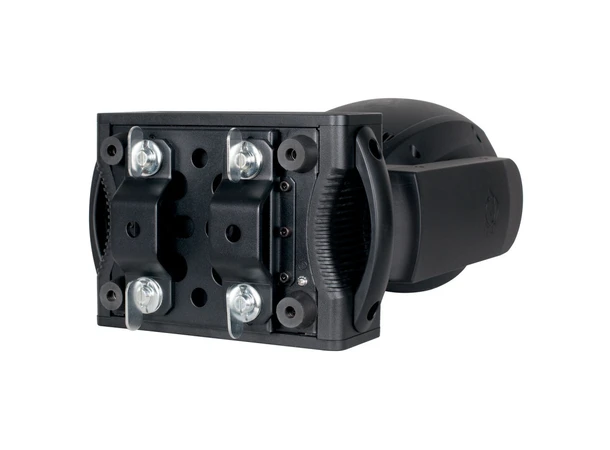

• Omega bracket with quick locks



Electrical

• Multivoltage : 100-240V 50/60Hz

• Power Draw : 136W



Connections

• Locking 3-pin DMX In/Out

• Locking Power In/Out

• USB firmware update port



 Dimensions & Weight:

• Dimensions: 278,61 x 191,8 x 447,3mm

• Weight: 12,25 kg.
