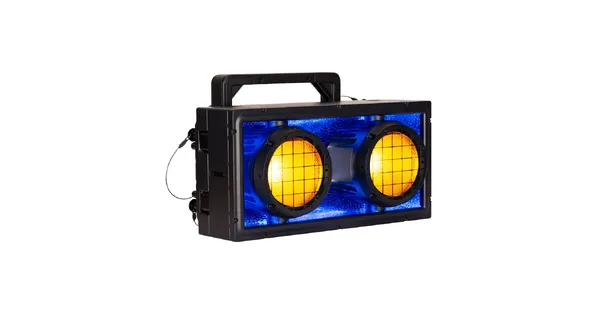

Encore DBX

Versatile Effect Fixture

The Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.

With features like individually controllable cells, built-in programs, and variable white color temperature (2700K–6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz–25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Aria X2 Wireless Management, and Bluetooth, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres, and corporate events.

Specifications

Source:

• 2x 150W RGBAW LEDs
• RGB Background LEDs
• 50,000 Hour Average LED Life*

Features:

• 2 Cell, Five Color (RGBAW) LED Blinder
• Background RGB LEDs
• Individually Controllable Cells
• Built-In Cell Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,700K ~ 6,500K)
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (1 ~ 20Hz)
• Electronic Dimming
• Aria X2 Wireless Management System

Photometrics:

• Total Lumen Output: 11,465
• CRI: 89

Color:

• RGBAW Color Array
• RGB Background
• Variable CCT 2700K - 6500K
• Five Preset CCTs

Physical:

• IP65 Housing
• OLED Digital Display
• Adjustable Mounting Yoke with Omega Receivers
• Second Set of Omega Receivers on Rear

Control:

• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM (Remote Device Management)
• (17) DMX Channel Modes (5CH / 8CH / 10CH / 11CH / 12CHA / 12CHB / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH)
• On-board Manual Control Mode
• Primary / Secondary Mode

Connections:

• 5-pin XLR IP65 DMX In/Out Sockets
• IP65 Locking Power Sockets

Dimensions & Weight:

• Length: 420mm
• Width: 261mm
• Height: 231.3mm
• Weight: 11.85 kg

Power:

• AC100-240V/50Hz-60Hz Input
• 347W Power Consumption
• Link 2 pieces @120VAC or 6 pieces @ 230VAC

Thermal:

• Ambient Operational Temperature: -20°C to 45°C
• Storage Temperature: -30°C to 45°C

Certifications & IP Rating:

• IP65

Included Accessories:

• (1) Outdoor Locking Power Cable
• (1) Safety Cable
