ADJ Novastar MCTRL 4K Ultra-long or ultra-wide LED displays ADJ Novastar MCTRL 4K Ultra-long or ultra-wide LED displays

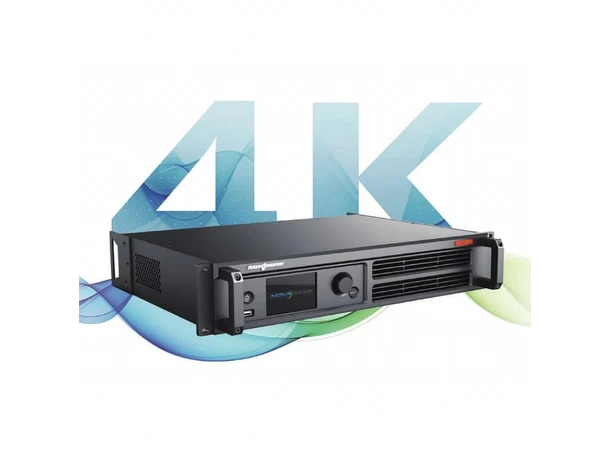

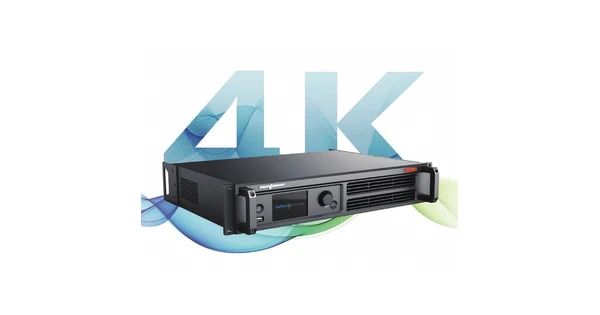

ADJ Novastar MCTRL 4K

Ultra-long or ultra-wide LED displays

Varenr: 1226300114
100 659,-eks mva.
125 824,-Ordinær pris
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (19 dager)
BeskrivelseDokumenter
Beskrivelse

The MCTRL4K is a LED display controller with ultra-large loading capacity developed by NovaStar. A single unit features a loading capacity of up to 4096×2160@60Hz. It supports any custom resolutions with the maximum width or height up to 7680 pixels, meeting the on-site configuration requirements of ultra-long or ultra-wide LED displays.



The MCTRL4K has many industry-leading advanced technologies:
• Supports HDR function, both in HDR10 and HLG standards, which can greatly enhance the image quality of the display, presenting more clear and vivid images.
• Supports individual Gamma adjustment for RGB when the bit depth of input source is 10-bit or 12-bit, which effectively controls image non-uniformity under low grayscale and white balance offset to improve image quality.
• Low latency: Less than 1 ms (when the start position of image is 0.)
• Supports 3D function when working with the 3D emitter EMT200 and 3D glasses, allowing you to experience 3D display effects.
• In multi-card mode, the MCTRL4K can be used as two controllers, allowing the images of two input sources to be displayed on the screen at the same time.



The MCTRL4K is stable, reliable and powerful, dedicated to providing a best visual experience. It can be mainly used for the fixed and rental applications, such as concerts, live events, security monitoring, Olympic Games and various sports centers


Specifications:

Control

• Ultra Large Capacity, Resolution 4K x 2K@60Hz

• Resolution up to 8K width

• Detailed control of Video Walls via LCTMars PC-Software or SmartLCT Mac OS X Software

• Multiple Video Inputs

• Multiple Outputs : 16 RJ 45 Ports  & 4 Optical output ports

• Screen Configuration via Web Interface

• Wireless Remote Control

• Can be cascaded via USB or GenLock for huge screens





Resolution

• Max resolution capacity : 8.3 million pixels

• 4096 x 2160@60Hz

• 7680 x 1080@60Hz

• 12bit/10bit/8bit HD Video Source

• Supports HDCP, 1080i/P, 480i, 576i, 720P, PAL/NTSC, HDR (HDR10&HLG)

• Support Ultra-High Resolution settings with NVIDIA Graphic Cards

• Supports both Mosaic and Multi-Card working modes for Dual-Link DVI inputs



Construction

• Aluminium Metal Housing

• Rack Mountable



Electrical

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Power Draw: 30W

• Operating Temperature: -20°C - +60°C

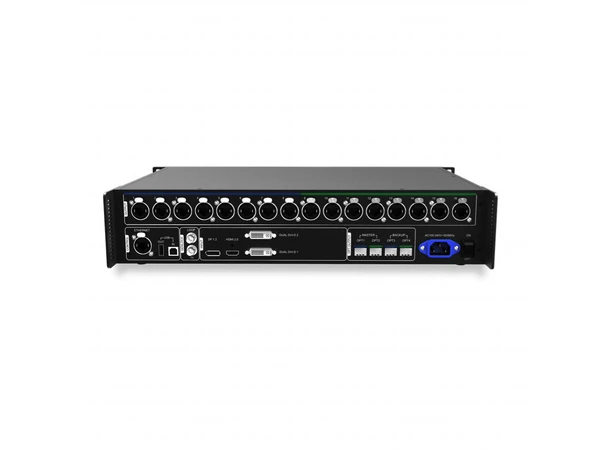

Connections

• Inputs

  2x Dual DVI-D, up to 8.3 million pixels

  1x HDMI 2.0, up to 8.8 million pixels per input

  1x DP 1.2, up to 8.8 million pixels per input

  1x RJ45 Network LAN Connector for IP-based Control

  1x Locking IEC Power connector

• Outputs

  16x RJ45 4Gigabit Ethernet Screen outputs

  4 x Optical Screen Output

  1x Genlock Loop Loop

• USB

  2x USB Type A port to connect USB Stick or cascade OUT

  1x USB Type B control interface for connection with PC or Cascade IN

• DP, HDMI, USB, DVI, CAT5 & Power cable included



Dimensions & Weight

• Dimensions (LxWxH): 482.6 x 372 x 96mm

• Weight: 4,6 kg.
